Tractor · 1999Unverified

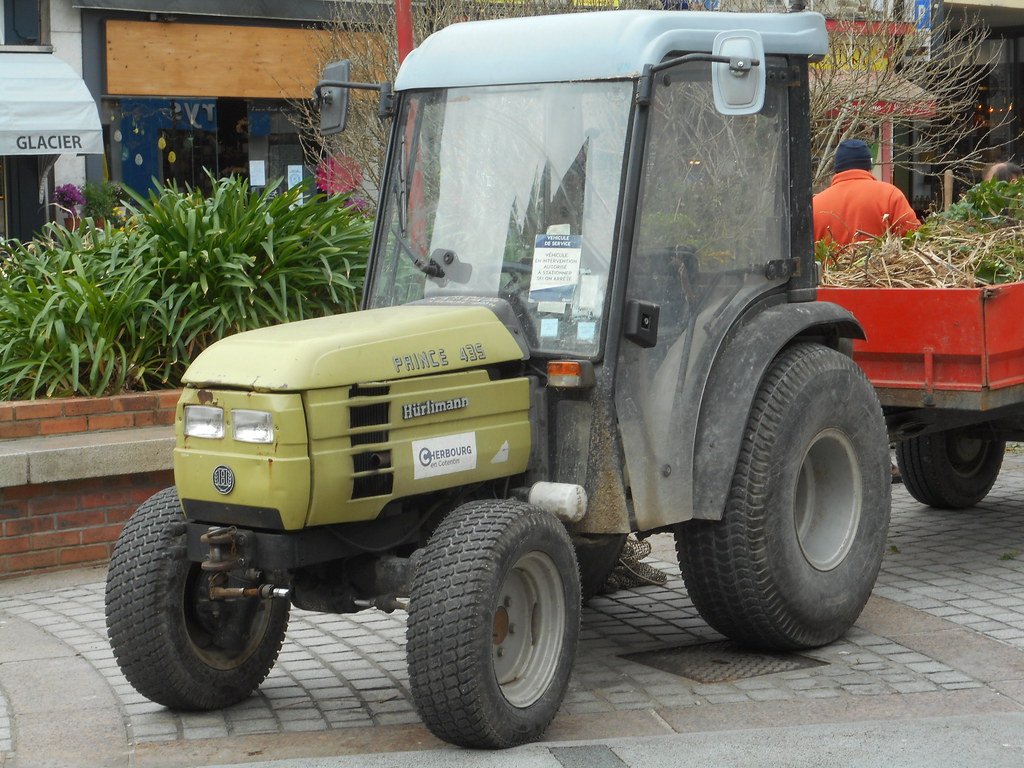

Hurlimann Prince 435
Hurlimann Prince 435 — Prince Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1139 kg
Hover a source tag to verify
Overview
ManufacturerHurlimannReference
Compact Utility tractorReference
Original price$19,000 (1999)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank29.1 LReference
Engine26.1 kWReference
Mitsubishi K4F-DReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power26.1 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM3000Reference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges with reverser.Reference
PTO & Hydraulics
PTO (claimed)19.0 kWReference
Valves1 (4 optional)Reference
Pump flow28.0 lpmReference
Total flow14.0 lpmReference
Rear Type1Reference
Controlposition and draft controlReference
Rear lift1199 kgReference
Front Hitch1 (optional)Reference
Front lift400 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Mid PTOoptionalReference
Front PTOoptionalReference
Dimensions
Wheelbase162 cmReference
Weight1139 kgReference
Front tire7.00-12Reference
Rear tire32/70R20Reference
Ag front7.00-12Reference
Ag rear32/70R20Reference
Length296 cmReference
Width102 cmReference
Width136 cmReference
Ground clearance34 cmReference
Front tread97 to 119 cmReference
Rear tread82 to 103 cmReference
Steering wheel124 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Hurlimann Prince 435 Height
Hood114 cmReference
Cab203 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
