Tractor · 2007Unverified

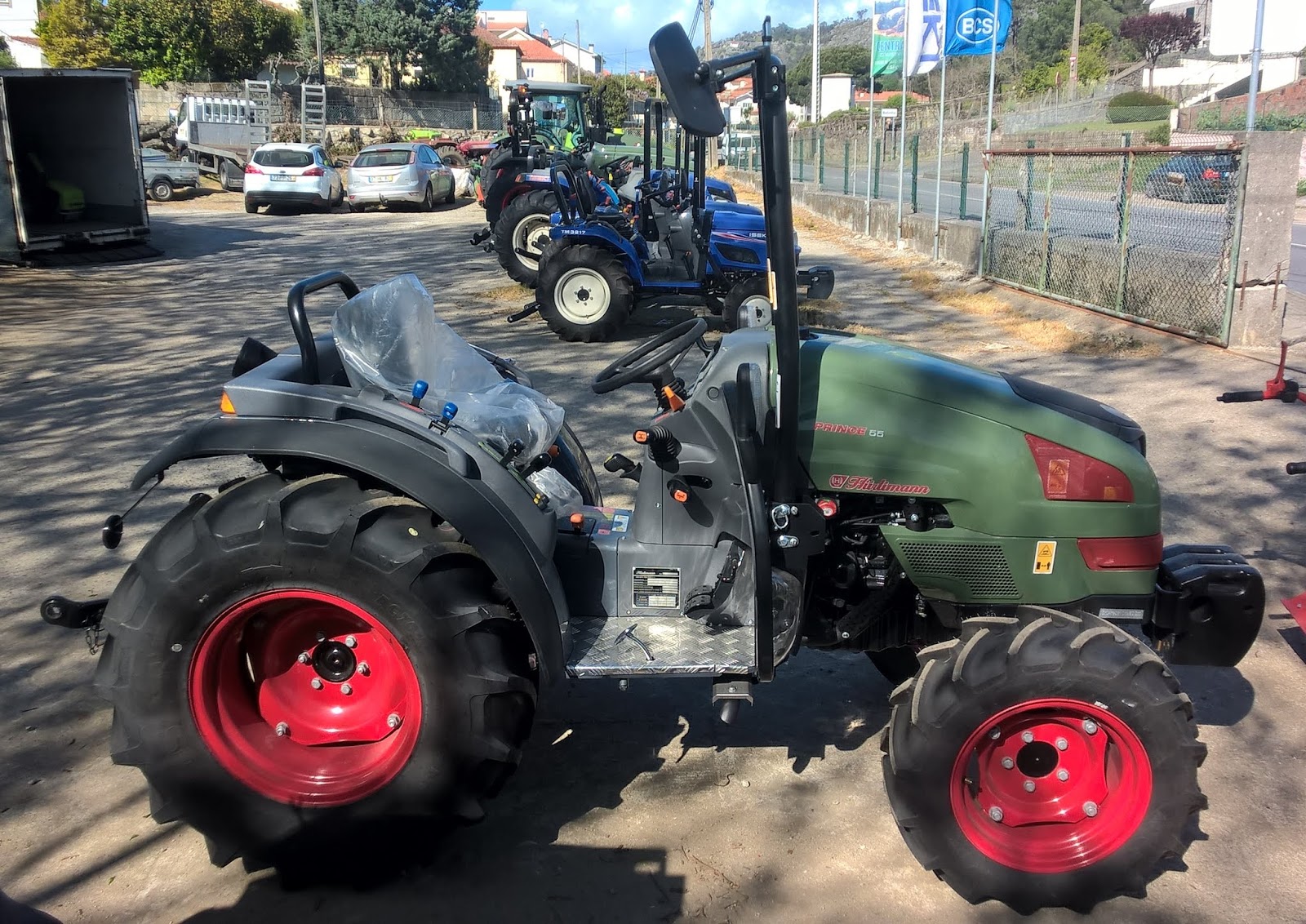

Hurlimann Prince 55
Hurlimann Prince 55 — Prince Series · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
1319 kg
Hover a source tag to verify
Overview
ManufacturerHurlimann (a part of SAME)Reference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank37.9 LReference
Fuel tank15.1 LReference
Engine (gross)38.0 kWReference
Engine (net)35.0 kWReference
MitsubishiReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
EmissionsStage IIIReference
Rated Power (net)35.0 kWReference
Rated Power (gross)38.0 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM3000Reference
Torque122.0 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
16-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges. Mechanical shuttle.Reference
Gears16 forward and reverseReference
Four synchronized gears in four ranges. Mechanical shuttle.Reference
PTO & Hydraulics
Pump flow29.9 lpmReference
Controldepth and draft controlReference
Rear lift1200 kgReference
Front lift400 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Mid PTOindependentReference
Mid PTO Type2000Reference
Front PTOindependentReference
Clutchelectro-hydraulic wet discReference
Front PTO Type1000Reference
Dimensions
Wheelbase174 cmReference
Weight1319 kgReference
Rear tire360/70R24Reference
Ag rear360/70R24Reference
Length297 cmReference
Width135 cmReference
Height (ROPS)201 cmReference
Ground clearance39 cmReference
Front tread104 to 131 cmReference
Rear tread100 to 132 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 360/70R24 rear tires. Reverse speeds slightly faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
