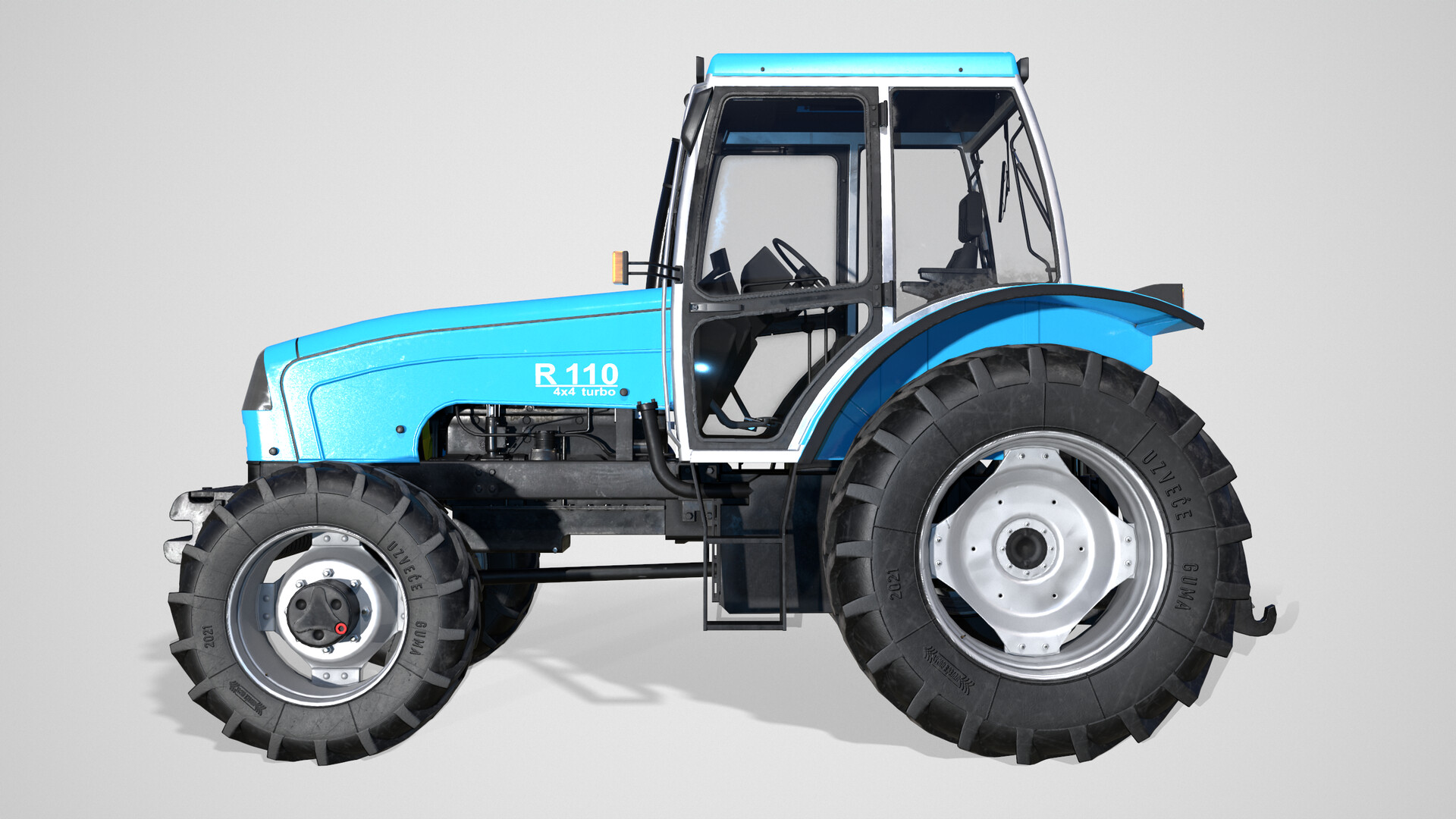

IMR Rakovica R 110 DV Turbo
IMR Rakovica R 110 DV Turbo — Row-Crop tractor · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
5400 kg
Hover a source tag to verify
Overview
ManufacturerIMR RakovicaReference
Row-Crop tractorReference
Built in Belgrade, SerbiaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Trailer brakespneumaticReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
5.8L 6-cyl dieselReference
Fuel tank180.2 LReference
Engine81.0 kWReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power81.0 kWReference
Fuel systemdirect-injectionReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchronized gearReference
TransmissionT7117SReference
Typesynchronized gearReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pressure220.0 barReference
Pump flow45.0 lpmReference
Pump flow60.0 lpmReference
Rear PTOliveReference
Rear PTO Type540/750/1000/1450Reference
Dimensions
Weight5400 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length475 cmReference
Width267 cmReference
Height (cab)299 cmReference
Ground clearance44 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
