Tractor · 1984Unverified

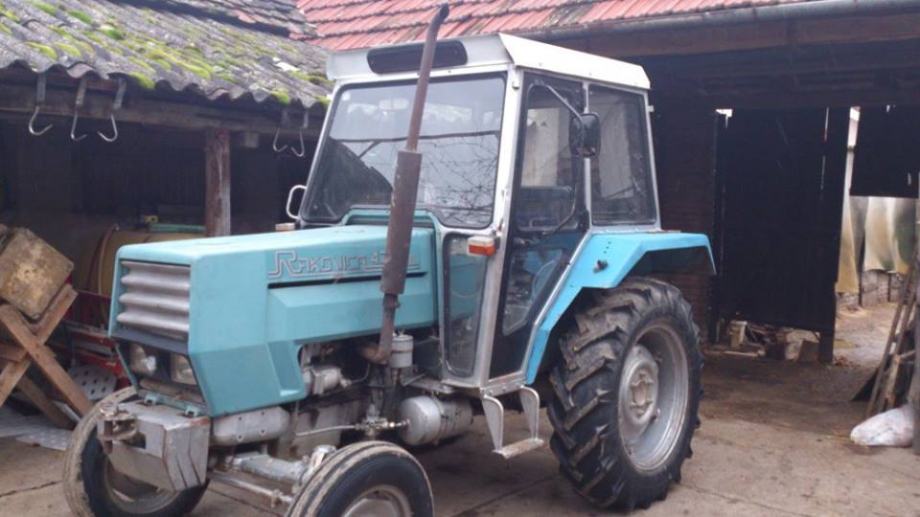

IMR Rakovica R 47

Name: IMR Rakovica R 47
Brand: IMR Rakovica

IMR Rakovica R 47 — Utility tractor · 39 hp. Reference specifications; pending source verification.

The IMR Rakovica R 47 is a compact tractor rated at 39 hp, manufactured in 1984. It is powered by a 3-cylinder diesel liquid-cooled engine, which drives the four-wheel drive system through a hydrostatic transmission. The tractor's listed weight is 2500 kg and is suitable for applications involving approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

39 hp

Weight

2500 kg

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

39 hp

Recorded weight

2500 kg

Transmissions

6-speed gear

Production years

1984-1984

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIMR RakovicaReference

Utility tractorReference

Built in Belgrade, SerbiaReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Mechanical brakesReference

Trailer brakespneumaticReference

Open operator station. Cab optional with heater.Reference

Engine

IMR Rakovica 2.5L 3-cyl dieselReference

Engine34.3 kWReference

IMR Rakovica DM33TReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke91 x 127 mmReference

Power34.3 kWReference

Fuel systemdirect-injectionReference

Rated RPM2250Reference

Torque162.0 NmReference

Torque RPM1350Reference

StarterelectricReference

Starter volts12Reference

Starter power3.0 kWReference

Oil capacity5.6 LReference

Coolant capacity12.0 LReference

Transmission

6-speed gearReference

TransmissionMT 280 6BReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutchdry discsReference

Oil capacity17.0 LReference

Three gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

PTO (claimed)29.0 kWReference

Typeopen centerReference

Pressure170.0 barReference

Valves2Reference

Steering cap.1.5 LReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)1835 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000Reference

Rear PTO Type540/750Reference

Engine RPM540@2000Reference

Capacities

Fuel60.0 LReference

Steering1.5 LReference

Dimensions

Weight2500 kgReference

Front tire6.00-16Reference

Rear tire12.4/11-28Reference

Ag front6.00-16Reference

Ag rear12.4/11-28Reference

Length331 cmReference

Width180 cmReference

Height (cab)270 cmReference

Ground clearance44 cmReference

Front tread137 to 186 cmReference

Rear tread139 to 189 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging volts14Reference

Batteries2Reference

Battery volts12Reference

Battery AH55Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
