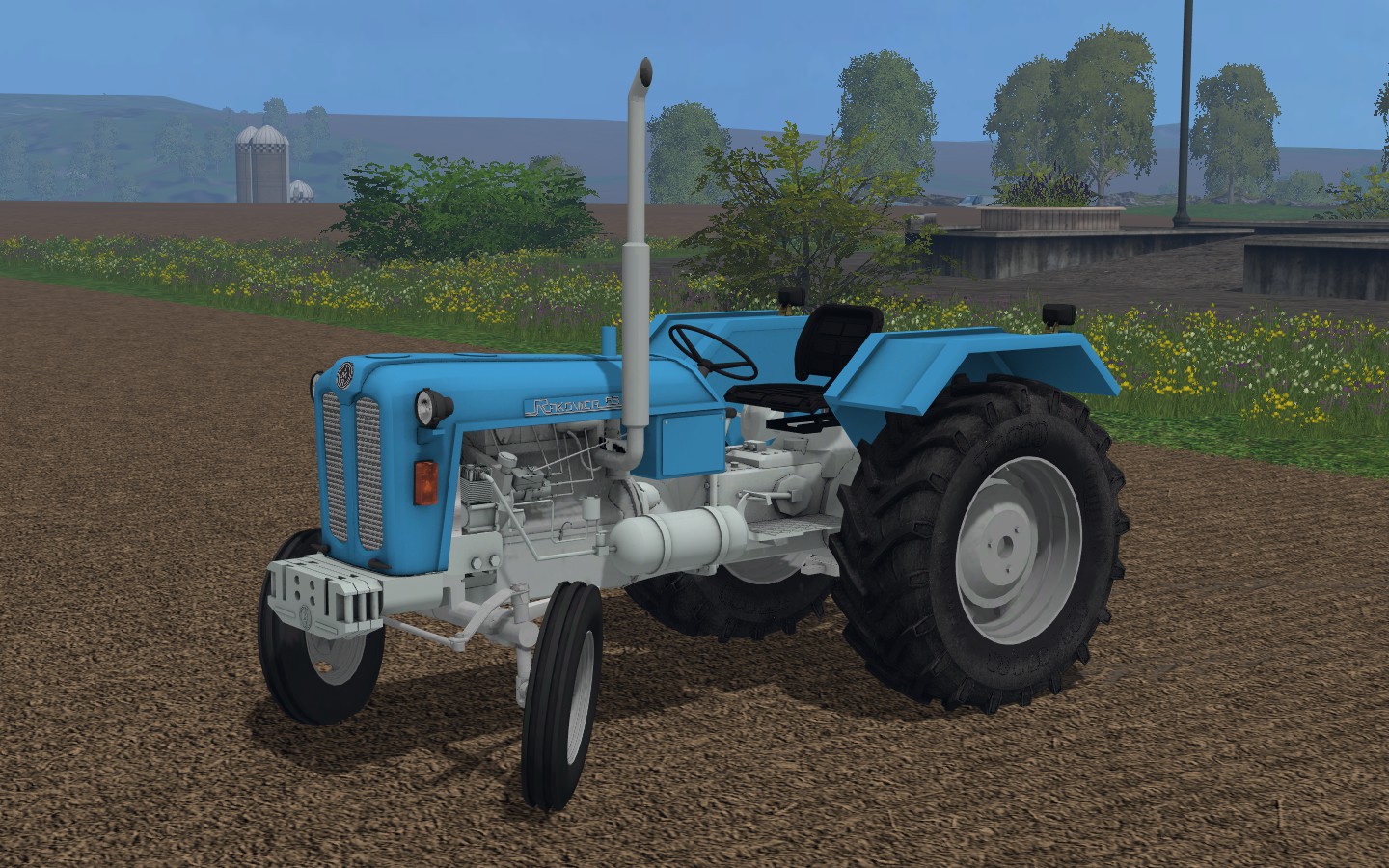

IMR Rakovica R 65 Super
IMR Rakovica R 65 Super — Utility tractor · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2600 kg
Hover a source tag to verify
Overview
ManufacturerIMR RakovicaReference
Utility tractorReference
Built in Belgrade, SerbiaReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Mechanical brakesReference
Trailer brakespneumaticReference
Open operator station. Cab optional with heater.Reference
Engine
IMR Rakovica 3.3L 4-cyl dieselReference
Engine47.0 kWReference
IMR Rakovica DM34TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke91 x 127 mmReference
Power47.0 kWReference
Fuel systemdirect-injectionReference
Rated RPM2300Reference
Torque206.0 NmReference
Torque RPM1350Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity8.0 LReference
Coolant capacity16.0 LReference
Transmission
6-speed gearReference
TransmissionMT 280 6BReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discsReference
Oil capacity17.0 LReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)40.0 kWReference
Typeopen centerReference
Pressure170.0 barReference
Steering cap.1.5 LReference
Rear TypeIIReference
Rear lift (at ends)2039 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000Reference
Rear PTO Type540/750Reference
Engine RPM540@2000Reference
Capacities
Fuel60.0 LReference
Steering1.5 LReference
Dimensions
Weight2600 kgReference
Front tire6.00-16Reference
Rear tire14.9/13-28Reference
Ag front6.00-16Reference
Ag front7.50-20 (4WD)Reference
Ag rear14.9/13-28Reference
Length360 cmReference
Width184 cmReference
Height (cab)250 cmReference
Ground clearance44 cmReference
Front tread137 to 186 cmReference
Rear tread139 to 189 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
