Tractor · 2012Unverified

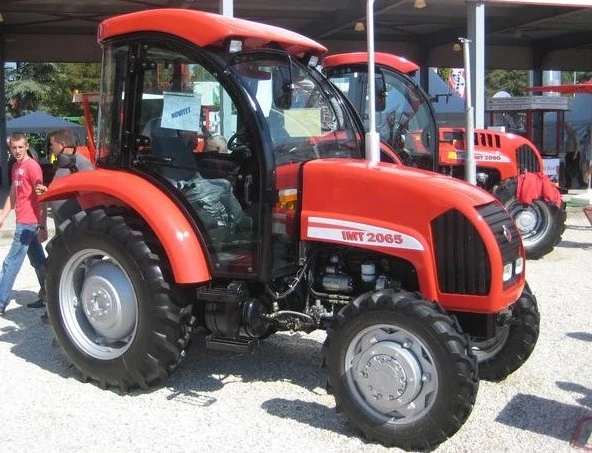

IMT 2065
IMT 2065 — Utility tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
2780 kg
Hover a source tag to verify
Overview
ManufacturerIMTReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
IMR 2.5L 3-cyl dieselReference
Fuel tank60.0 LReference
Engine (gross)46.5 kWReference
IMR DM34/TReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Rated Power (gross)46.5 kWReference
Fuel systemdirect injectionReference
Compression17.4:1Reference
Rated RPM2250Reference
Firing order1-2-3Reference
Transmission
10-speed synchromeshReference
TypesynchromeshReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear lift1968 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase196 cmReference
Weight2780 kgReference
Front tire7.50-20Reference
Rear tire13.6-28Reference
Ag front7.50-20Reference
Ag rear13.6-28Reference
Length327 cmReference
Width166 cmReference
Height230 cmReference
Ground clearance28 cmReference
Front tread130 to 189 cmReference
Rear tread130 to 189 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
