Tractor · 1982Unverified

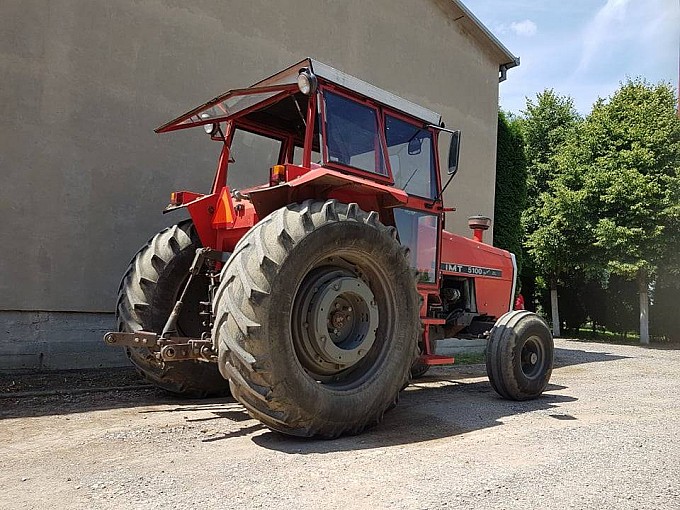

IMT 5100
IMT 5100 · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
6001 kg
Hover a source tag to verify
Overview
ManufacturerIMTReference
Built in Belgrade, YugoslaviaReference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Cab standard.Reference
Variants
51002WDReference
51064WDReference
Engine
IMR 5.8L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine78.3 kWReference
IMR S 46/TReference
dieselReference
6-cylinderReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power78.3 kWReference
Air cleanerliquidReference
Compression16:1Reference
Rated RPM2250Reference
Firing order1-5-3-6-2-4Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow35.2 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase275 cmReference
Weight6001 kgReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Length483 cmReference
Width220 cmReference
Height (cab)281 cmReference
Height (exhaust)286 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
