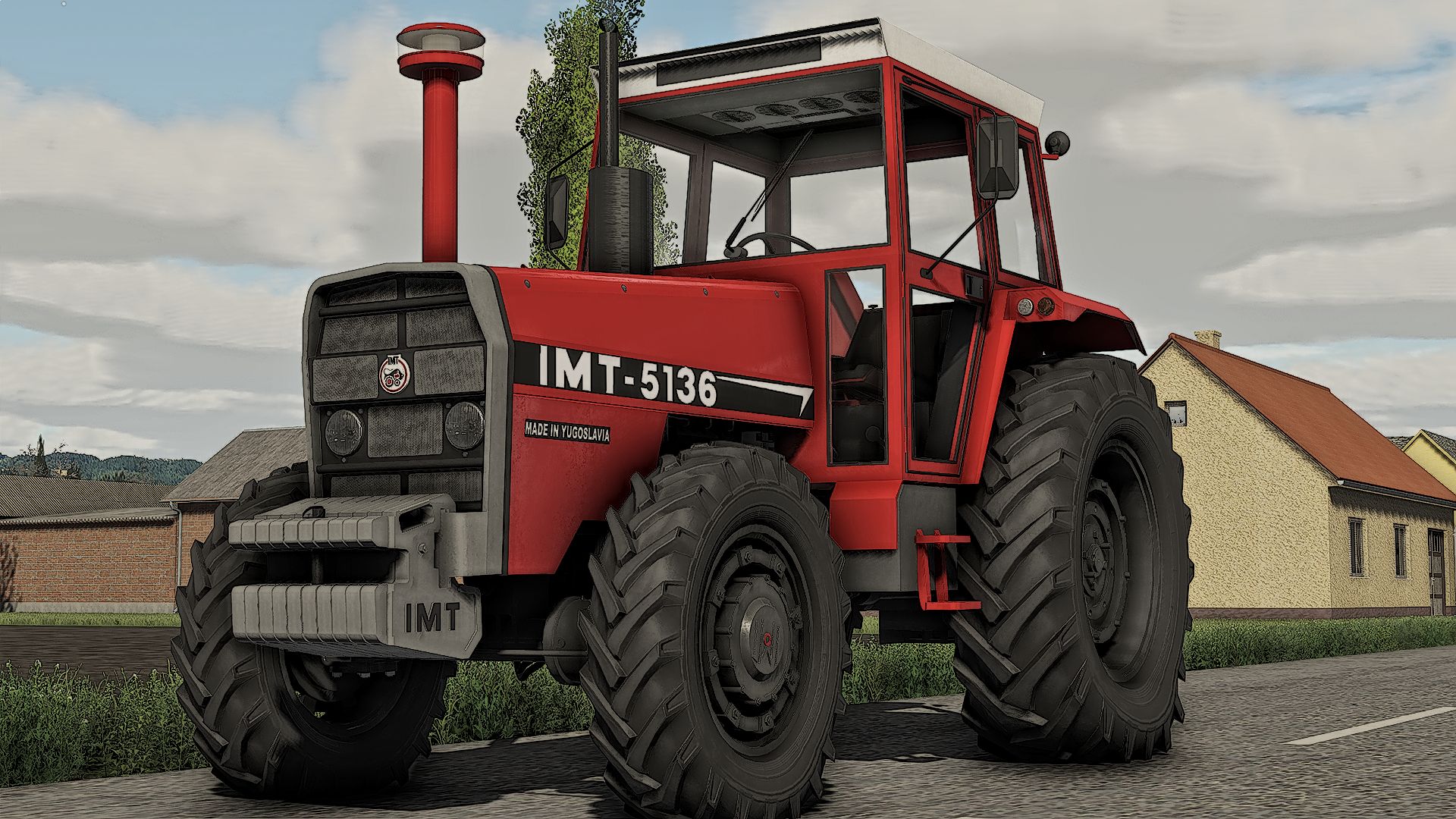

The IMT 5136 is a tractor model with a rated power output of 135 hp, which positions it amongst the more powerful machines in its class. Produced in 1982, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, coupled to a 10-speed gearbox and four-wheel drive system. The listed weight of the IMT 5136 is 6041 kg, and it is designed for tasks involving approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
6041 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
135 hp
Recorded weight
6041 kg
Transmissions
10-speed gear
Production years
1982-1982
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIMTReference
Built in Belgrade, YugoslaviaReference
Four-wheel driveReference
Power steeringReference
Disc brakesReference
Cab standard.Reference
Variants
51302WDReference
51364WDReference
Engine
IMR 5.8L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine100.7 kWReference
IMR TS 46/TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power100.7 kWReference
Compression16:1Reference
Rated RPM2250Reference
Firing order1-5-3-6-2-4Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow35.2 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase275 cmReference
Weight6041 kgReference
Front tire12.4-24Reference
Rear tire18.4-38Reference
Ag front12.4-24Reference
Ag rear18.4-38Reference
Length483 cmReference
Width220 cmReference
Height (cab)281 cmReference
Height (exhaust)286 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
