Tractor · 1997Unverified

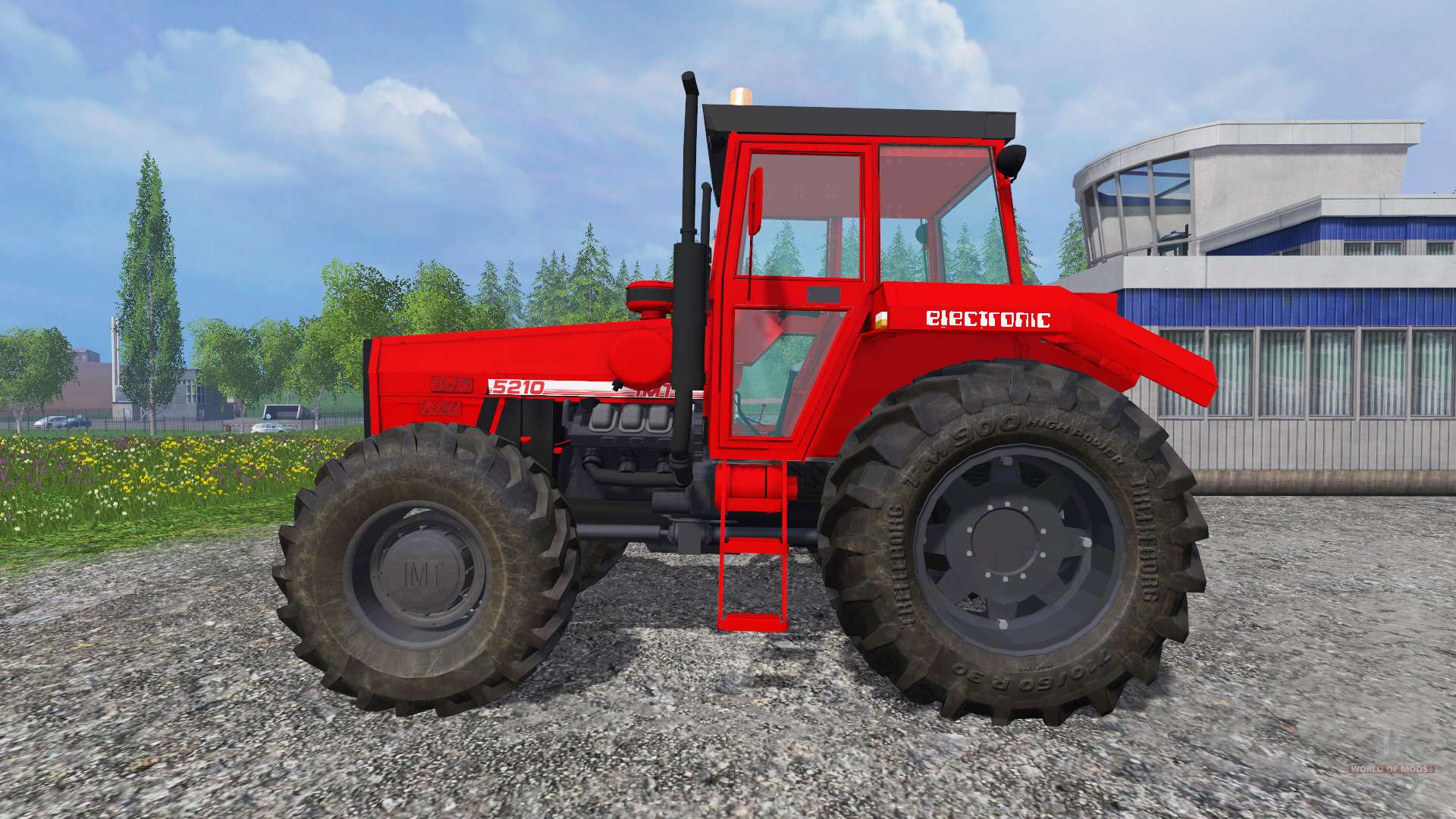

IMT 5210

Name: IMT 5210
Brand: IMT

IMT 5210 · 210 hp. Reference specifications; pending source verification.

The IMT 5210 is a tractor with a rated power output of 210 hp, positioning it within the higher-powered machines in its class. It was manufactured in 1997. The tractor features a 6-cylinder diesel engine and four-wheel drive, with a hydrostatic transmission. Its listed weight is 8171 kg, and it is suited for tasks covering around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

210 hp

Weight

8171 kg

Catalogue coverage

Variants represented

Richest spec table

27 rows

Recorded power

210 hp

Recorded weight

8171 kg

Transmissions

16-speed

Production years

1997-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIMTReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Disc brakesReference

Engine

Mercedes-Benz 11.3L 6-cyl dieselReference

Fuel tank350.1 LReference

Engine156.6 kWReference

Mercedes-Benz OM 441Reference

dieselReference

6-cylinderReference

Displacement11.3 LReference

Bore/Stroke130 x 142 mmReference

Power156.6 kWReference

Rated RPM2100Reference

Transmission

16-speedReference

TransmissionsynchroReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

Total flow35.2 lpmReference

Rear lift5000 kgReference

Rear PTO Type1000Reference

Dimensions

Weight8171 kgReference

Front tire16.9-28Reference

Rear tire20.8-38Reference

Ag front16.9-28Reference

Ag rear20.8-38Reference

Length513 cmReference

Height298 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
