Tractor · 1980Unverified

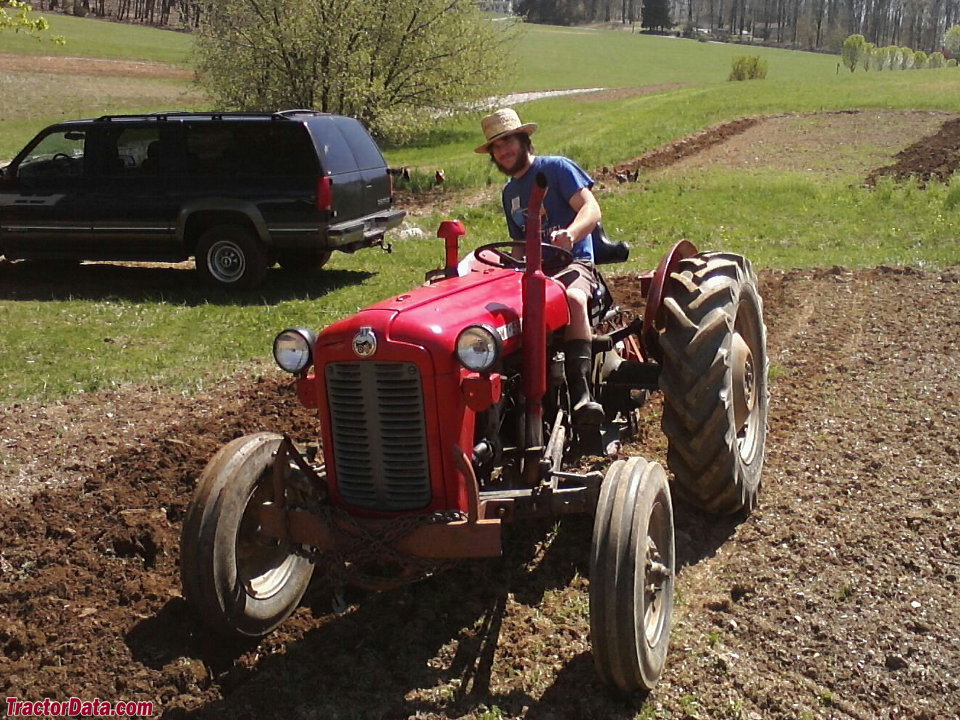

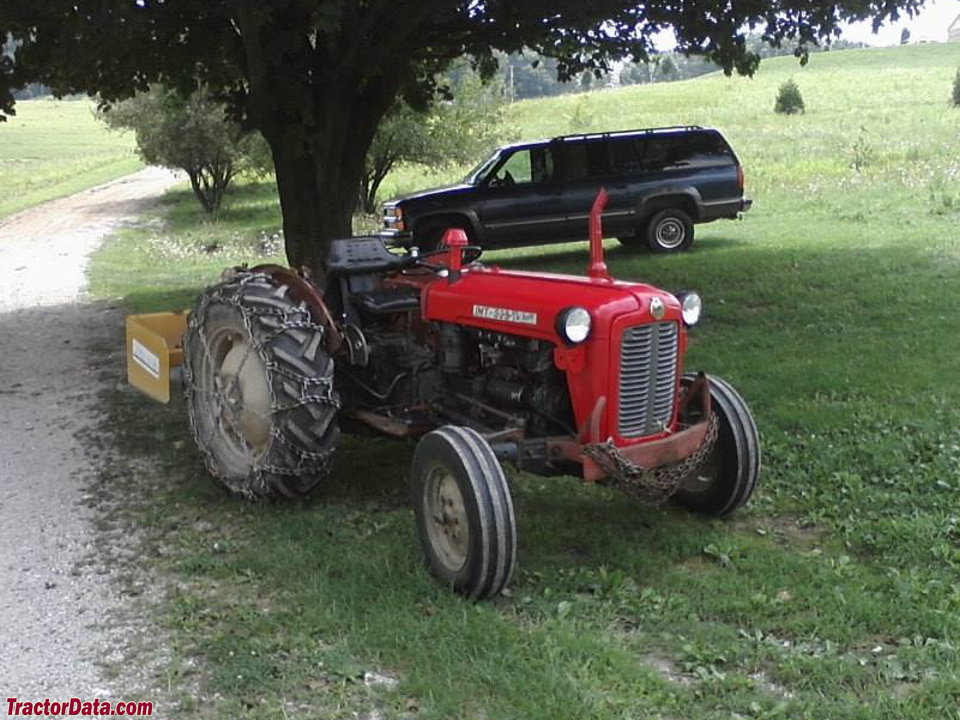

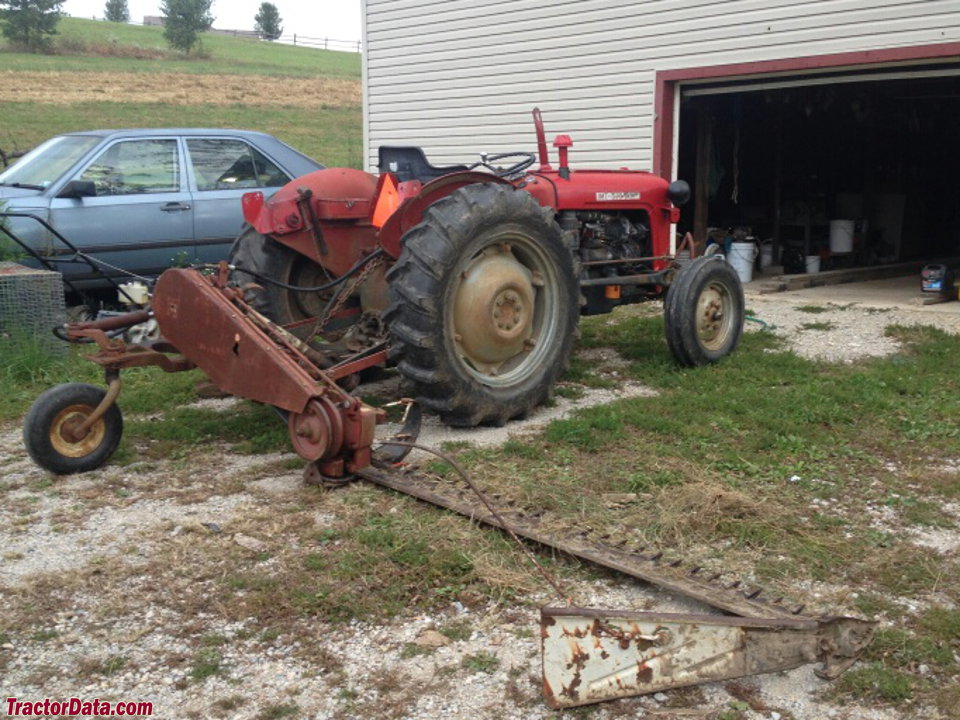

IMT 539
IMT 539 · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1630 kg
Hover a source tag to verify
Overview
ManufacturerIMTReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
2.5L 3-cyl dieselReference
Fuel tank34.8 LReference
Engine29.1 kWReference
M 33/TReference
dieselReference
3-cylinderReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power29.1 kWReference
Rated RPM2000Reference
Torque153.2 NmReference
Torque RPM1350Reference
Transmission
6-speedReference
TransmissiongearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Total flow15.9 lpmReference
Rear lift1100 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase182 cmReference
Weight1630 kgReference
Front tire6.00-16Reference
Rear tire11.2-28Reference
Ag front6.00-16Reference
Ag rear11.2-28Reference
Length296 cmReference
Height202 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
