Tractor · 1976Unverified

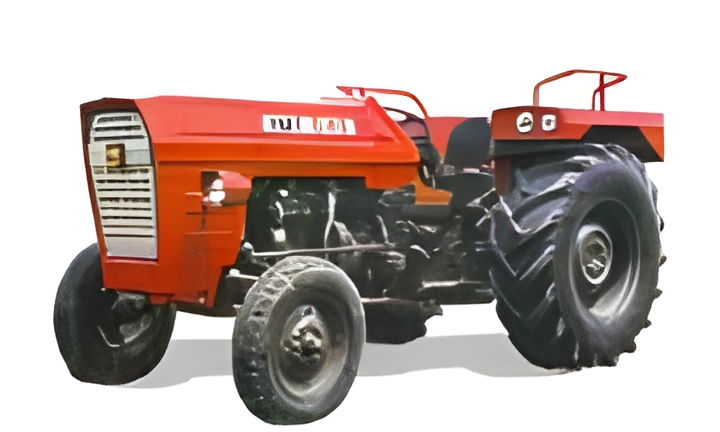

IMT 540
IMT 540 · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Hover a source tag to verify
Overview
ManufacturerIMTReference
SteeringmechanicalReference
Engine
2.5L 3-cyl dieselReference
Engine29.8 kWReference
M 33/TReference
dieselReference
3-cylinderReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power29.8 kWReference
Rated RPM2250Reference
Transmission
6-speedReference
10-speedReference
TransmissiongearReference
Gears6 forward and 2 reverseReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow18.2 lpmReference
Rear lift1400 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase198 cmReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
