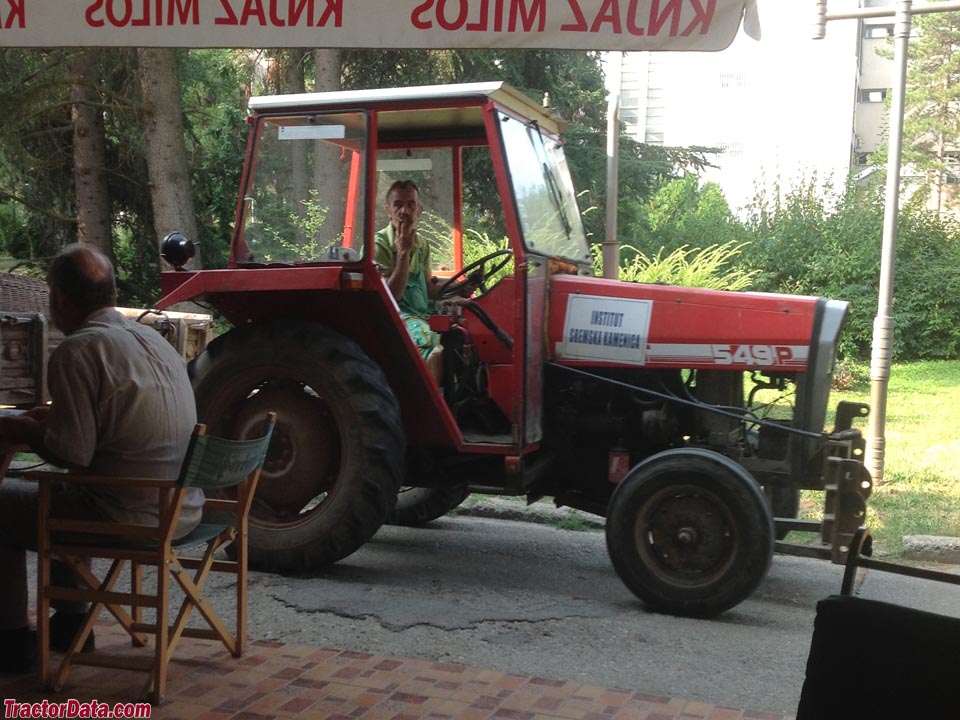

The IMT 549 is a tractor with a power rating of approximately 47 hp, positioning it within the lighter end of its class. Produced in 1986, it features a 3-cylinder diesel engine and mechanical front-wheel drive with a 10-speed gearbox. The tractor has a listed operating weight of 2380 kg and is suited for operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
2380 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
47 hp
Recorded weight
2380 kg
Transmissions
10-speed
Production years
1986-1986
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIMTReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringpower optionalReference
Engine
2.5L 3-cyl dieselReference
Fuel tank50.0 LReference
Engine35.0 kWReference
DM 33/TReference
dieselReference
3-cylinderReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power35.0 kWReference
Rated RPM2250Reference
Torque161.4 NmReference
Torque RPM1300Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow32.9 lpmReference
Rear lift1400 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase198 cmReference
Weight2380 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Ag front7.50-20Reference
Length340 cmReference
Height246 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
