Tractor · 2005Unverified

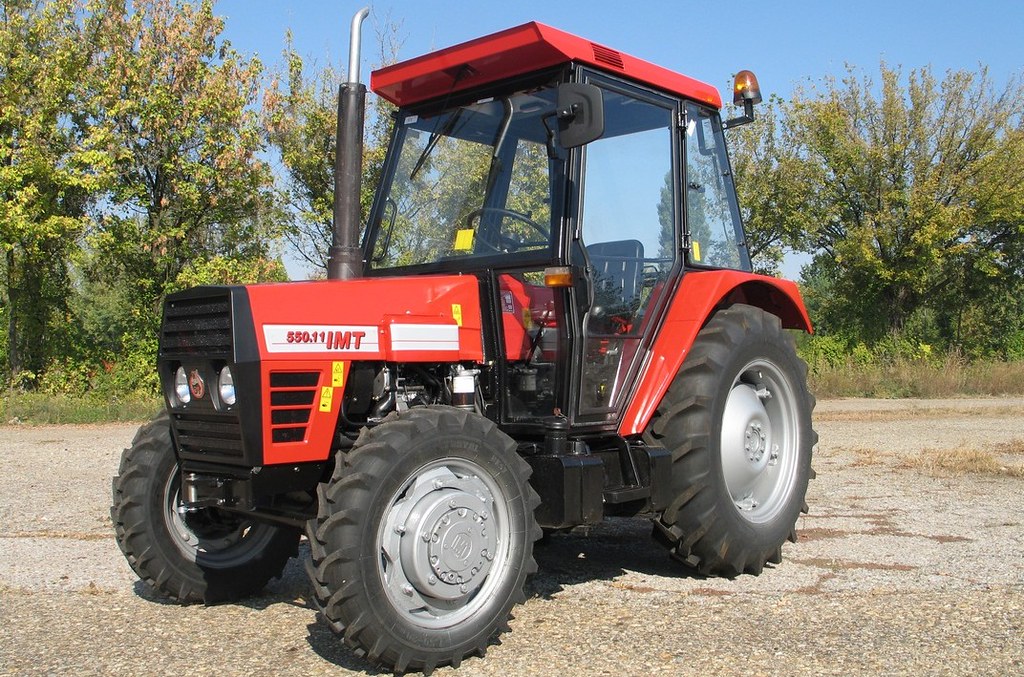

IMT 550

Name: IMT 550
Brand: IMT

IMT 550 · 54 hp. Reference specifications; pending source verification.

The IMT 550 is a tractor with a rated power of 54 hp, positioning it at the lower end of its class in terms of power output. It was manufactured in 2005 and features a 3-cylinder diesel engine paired with four-wheel drive and a hydrostatic transmission. The tractor's operating weight is listed as 2250 kg. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

54 hp

Weight

2250 kg

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

54 hp

Recorded weight

2250 kg

Transmissions

10-speed

Production years

2005-2005

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIMTReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Engine

2.9L 3-cyl dieselReference

Fuel tank50.0 LReference

Engine40.3 kWReference

3029DF186Reference

dieselReference

3-cylinderReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Power40.3 kWReference

Rated RPM2300Reference

Transmission

10-speedReference

Gears10 forward and 2 reverseReference

PTO & Hydraulics

Total flow32.9 lpmReference

Rear lift1400 kgReference

Rear PTO Type540Reference

Dimensions

Wheelbase198 cmReference

Weight2250 kgReference

Front tire7.50-20Reference

Rear tire12.4-28Reference

Ag front7.50-20Reference

Ag rear12.4-28Reference

Length340 cmReference

Height246 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
