Tractor · 1964Unverified

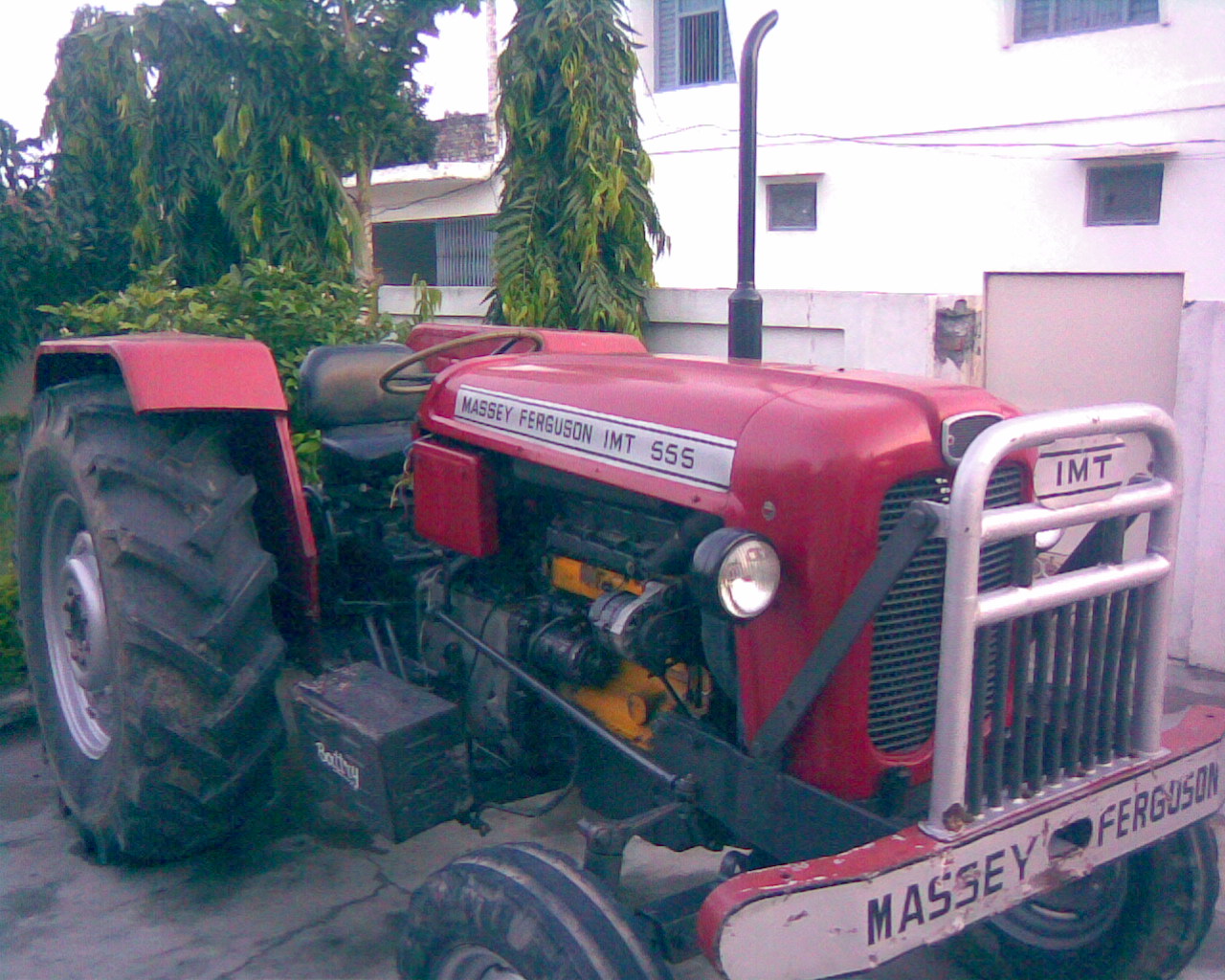

IMT 555
IMT 555 — Utility tractor · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
1905 kg
Hover a source tag to verify
Overview
ManufacturerIMTReference
Utility tractorReference
Built in Belgrade, YugoslaviaReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
IMT 3.3L 4-cyl dieselReference
Fuel tank45.0 LReference
Fuel tank54.9 LReference
Engine37.3 kWReference
IMT IM-034Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke91 x 127 mmReference
Power37.3 kWReference
Compression17.4:1Reference
Rated RPM2000Reference
Torque191.2 NmReference
Torque RPM1300Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.5 LReference
Coolant capacity12.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift (at ends)816 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1500Reference
Dimensions
Wheelbase215 cmReference
Weight1905 kgReference
Length348 cmReference
Width169 cmReference
Height (steering wheel)168 cmReference
Height (exhaust)225 cmReference
Clearance (front axle)60 cmReference
Clearance (rear axle)62 cmReference
Front tread131 to 205 cmReference
Rear tread134 to 216 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
