Tractor · 1970Unverified

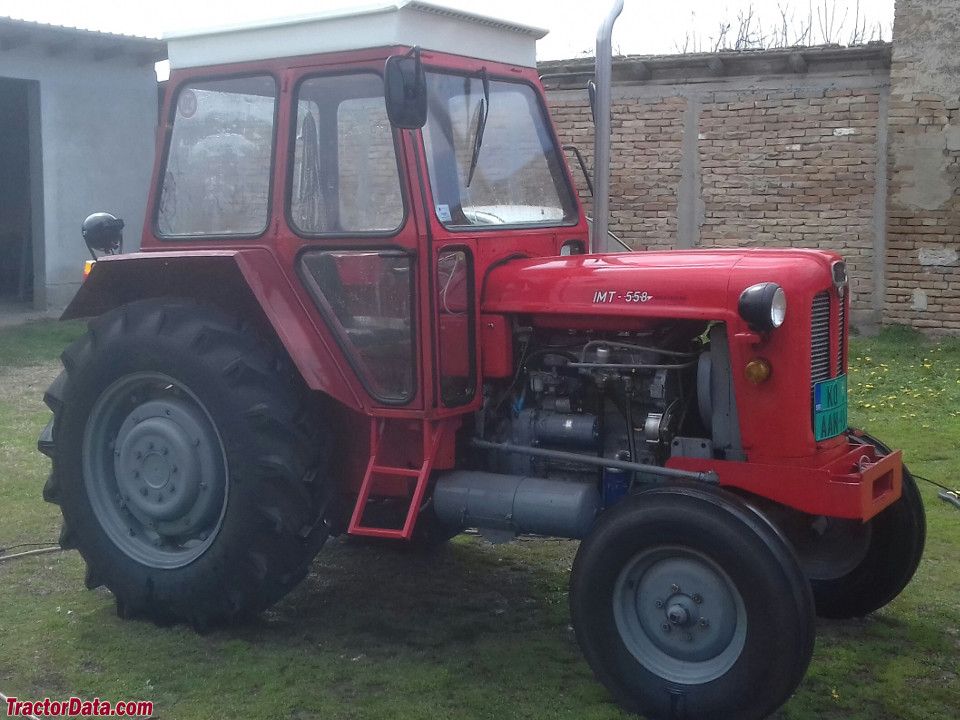

IMT 558
IMT 558 · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
2300 kg
Hover a source tag to verify
Overview
ManufacturerIMTReference
Built in Belgrade, YugoslaviaReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
IMT 3.3L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine43.3 kWReference
IMT M34/TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke91 x 127 mmReference
Power43.3 kWReference
Rated RPM2250Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM540@1690Reference
Dimensions
Wheelbase211 cmReference
Weight2300 kgReference
Front tire7.50-16Reference
Rear tire16.9-28Reference
Ag front7.50-16Reference
Ag rear16.9-28Reference
Ag rear14.9-28Reference
Length371 cmReference
Width180 cmReference
Height (steering wheel)161 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
