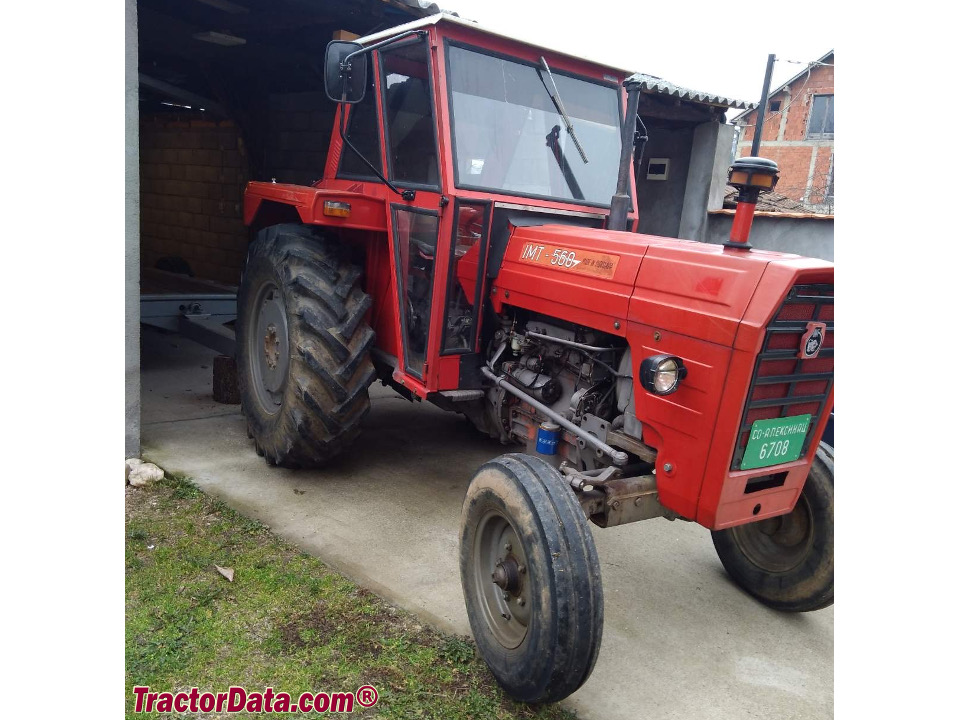

The IMT 560 is a compact tractor model with a rated output of 59 hp, produced from 1980 to 1986. It features a 4-cylinder diesel liquid-cooled engine, which drives through two-wheel drive via a 6-speed gearbox. The listed weight of the IMT 560 is 2700 kg, and it is suitable for use on plots of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2700 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
59 hp
Recorded weight
2700 kg
Transmissions
6-speed gear
Production years
1980-1986
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIMTReference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Engine
IMT 3.3L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine44.0 kWReference
IMT M 34/TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke91 x 127 mmReference
Power44.0 kWReference
Rated RPM2250Reference
Torque211.5 NmReference
Torque RPM1300Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Total flow18.2 lpmReference
Total flow29.9 lpmReference
Rear lift1500 kgReference
Rear PTO Type720Reference
Dimensions
Wheelbase220 cmReference
Weight2700 kgReference
Front tire7.50-16Reference
Rear tire16.9-28Reference
Ag front7.50-16Reference
Ag rear16.9-28Reference
Length398 cmReference
Height (steering wheel)158 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
