Tractor · 1983Unverified

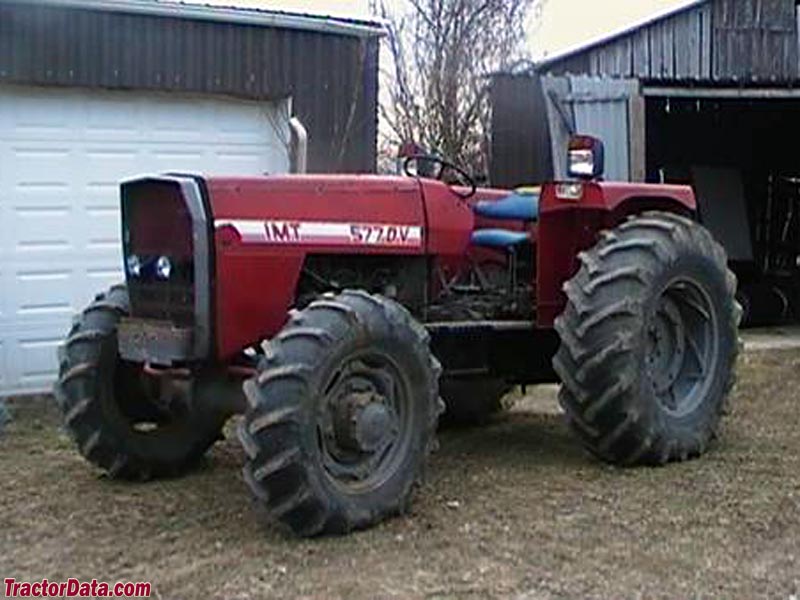

IMT 577
IMT 577 · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3635 kg
Hover a source tag to verify
Overview
ManufacturerIMTReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
4.1L 4-cyl dieselReference
Fuel tank90.1 LReference
Fuel tank109.8 LReference
Engine52.2 kWReference
S 44AReference
dieselReference
4-cylinderReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power52.2 kWReference
Rated RPM2000Reference
Torque271.2 NmReference
Torque RPM1300Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow22.7 lpmReference
Total flow32.9 lpmReference
Rear lift2100 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase221 cmReference
Weight3635 kgReference
Front tire7.50-16Reference
Rear tire18.4-30Reference
Ag front7.50-16Reference
Ag rear18.4-30Reference
Ag front9.5-24Reference
Length423 cmReference
Height267 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
