Backhoe Loader · 2005Unverified

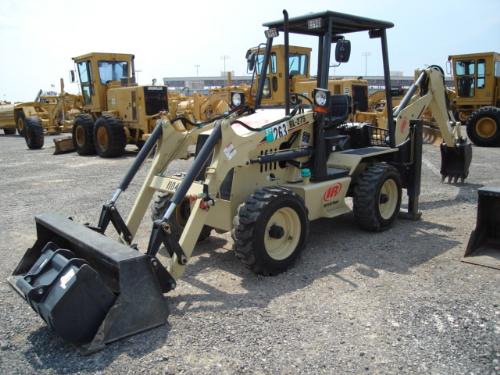

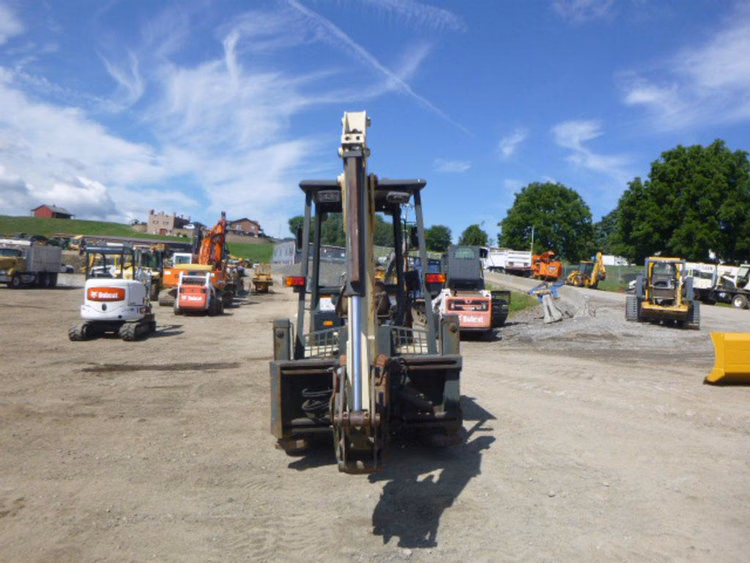

Ingersoll Rand BL-275

Name: Ingersoll Rand BL-275
Brand: Ingersoll Rand

Ingersoll Rand BL-275 — Backhoe loader tractor · 32 hp. Reference specifications; pending source verification.

The Ingersoll Rand BL-275 is a backhoe loader with a rated output of 32 hp — making it one of the more compact options in its class. This model was produced from 2005 to 2007. Under the hood is a 3-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 3070 kg, and it is aimed at jobs of around up to 200 ac. Detailed specifications in both UK and US units follow below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Weight

3070 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

32 hp

Recorded weight

3070 kg

Transmissions

hydrostatic

Production years

2005-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIngersoll RandReference

Backhoe loader tractorReference

Four-wheel driveReference

Power four-wheel steeringReference

ROPS/FOPS. Cab optional with available heater.Reference

Engine

Kubota 1.1L 3-cyl dieselReference

Fuel tank54.9 LReference

Engine (net)23.5 kWReference

Kubota D1105TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

EmissionsTier IIReference

Power (net)23.5 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

Pump flow44.3 lpmReference

Dimensions

Wheelbase170 cmReference

Weight3070 kgReference

Front tire10x16.5Reference

Rear tire10x16.5Reference

Industrial front10x16.5Reference

Industrial rear10x16.5Reference

Length462 cmReference

Height (ROPS)233 cmReference

Backhoe & Loader

Dig depth320 cmReference

Dump angle114 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Ingersoll Rand Backhoe

Backhoe typeIngersoll Rand BackhoeReference

Digging depth320 cmReference

2-Foot flat digging depth302 cmReference

8-Foot flat digging depth259 cmReference

Reach from pivot386 cmReference

Loading height241 cmReference

Bucket force2422 kgReference

Dipperstick force1430 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
