Tractor · 1915Unverified

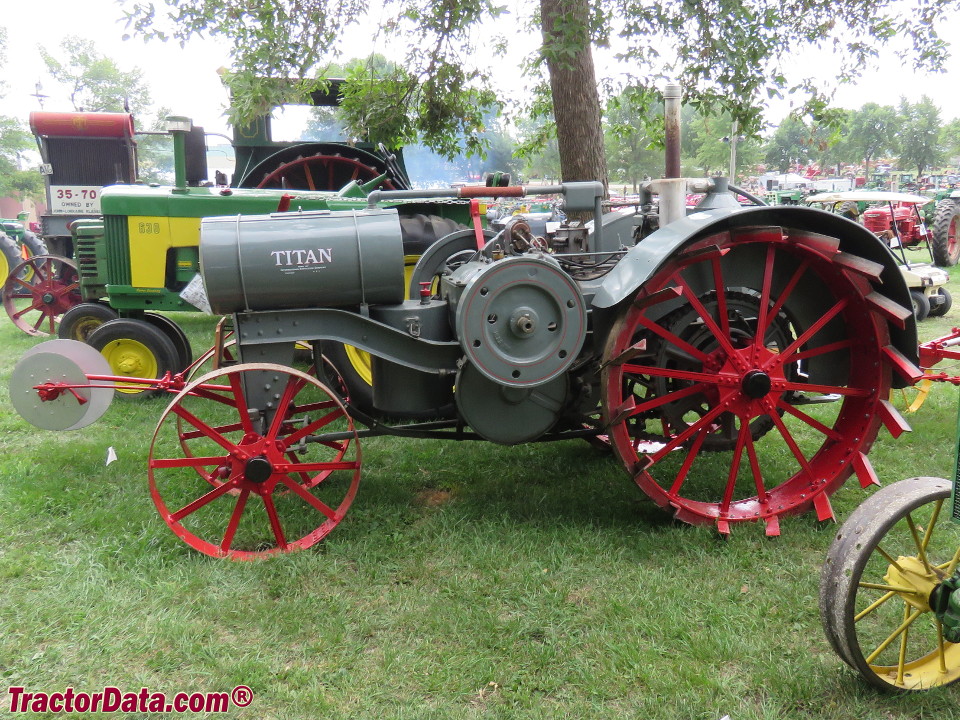

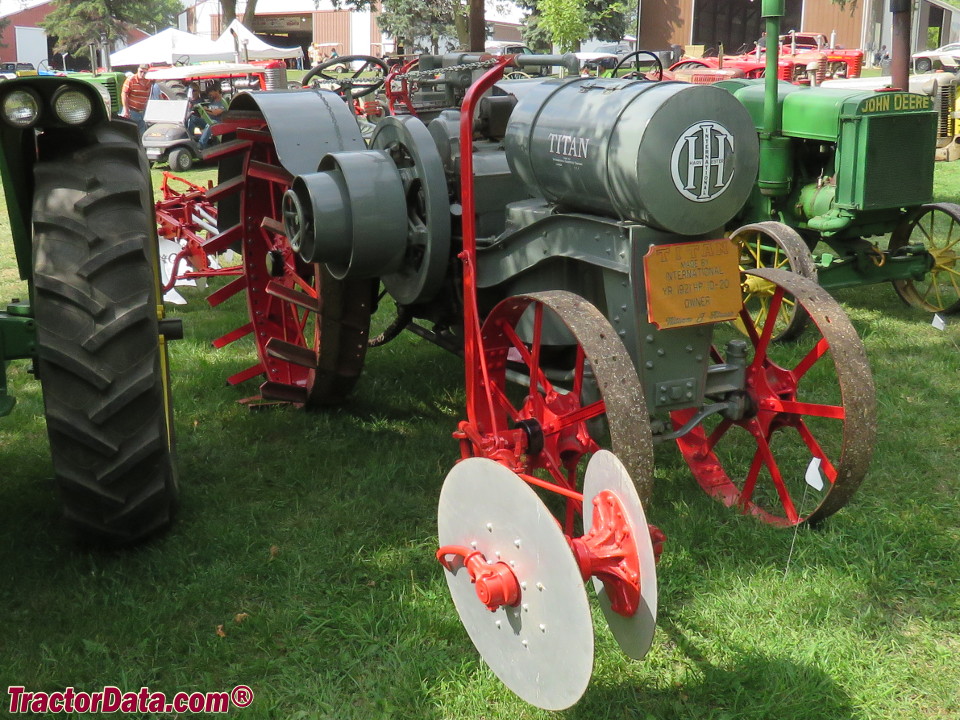

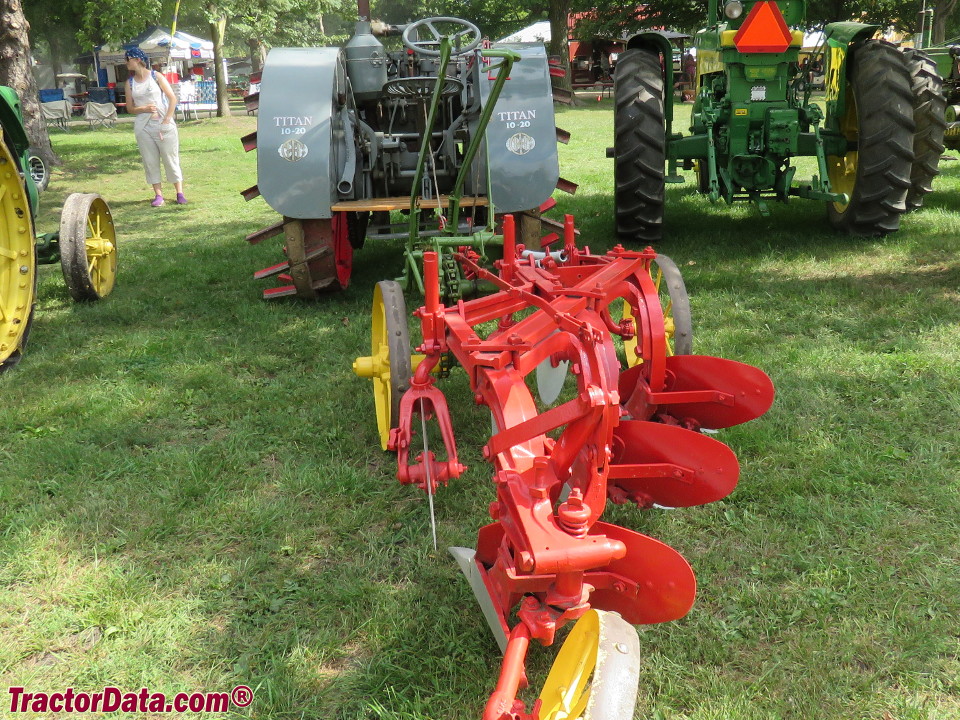

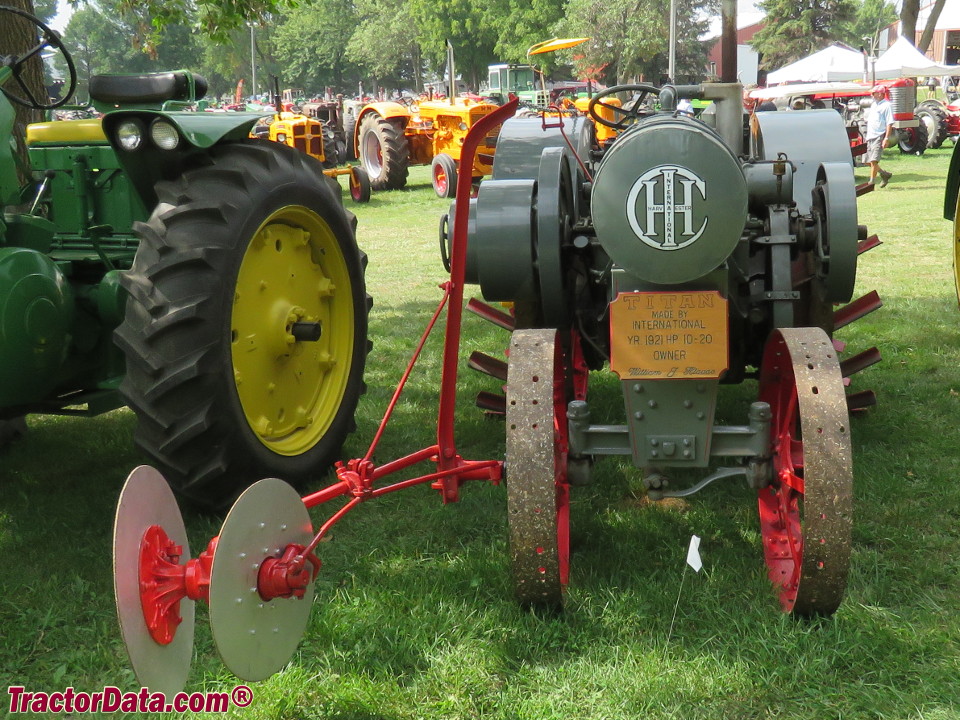

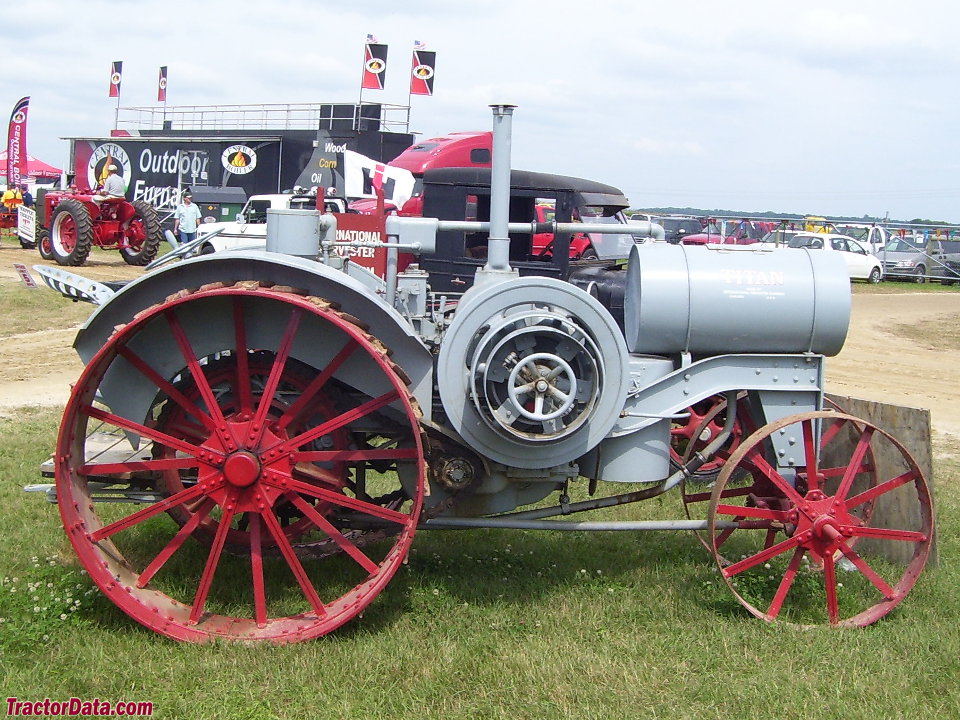

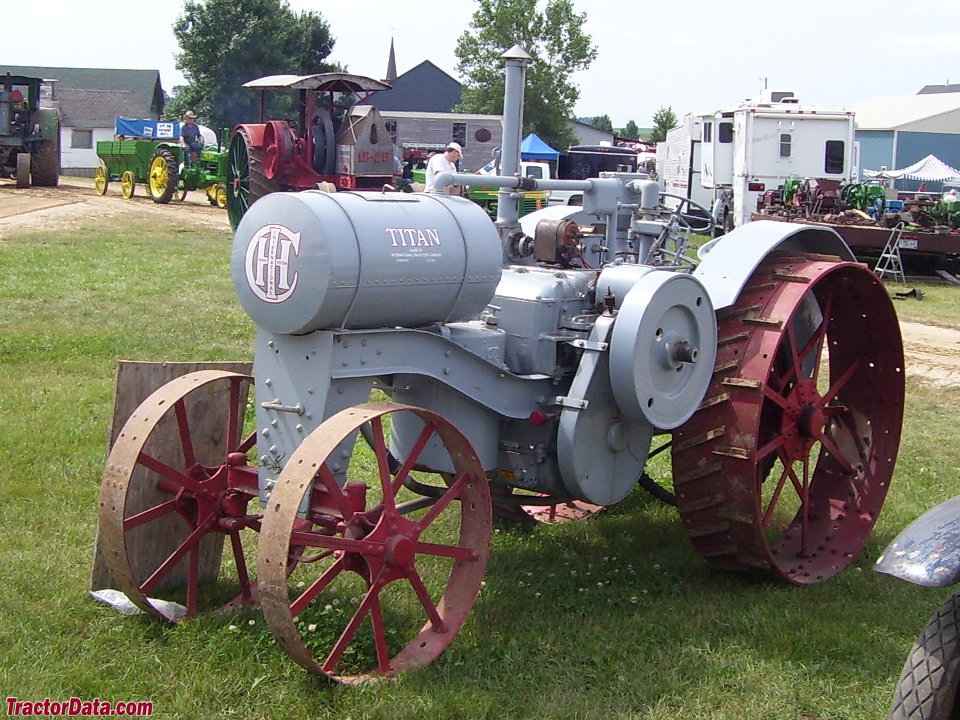

International Harvester 10-20 Titan
International Harvester 10-20 Titan — Standard-tread tractor · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
2506 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Milwaukee, Wisconsin, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference

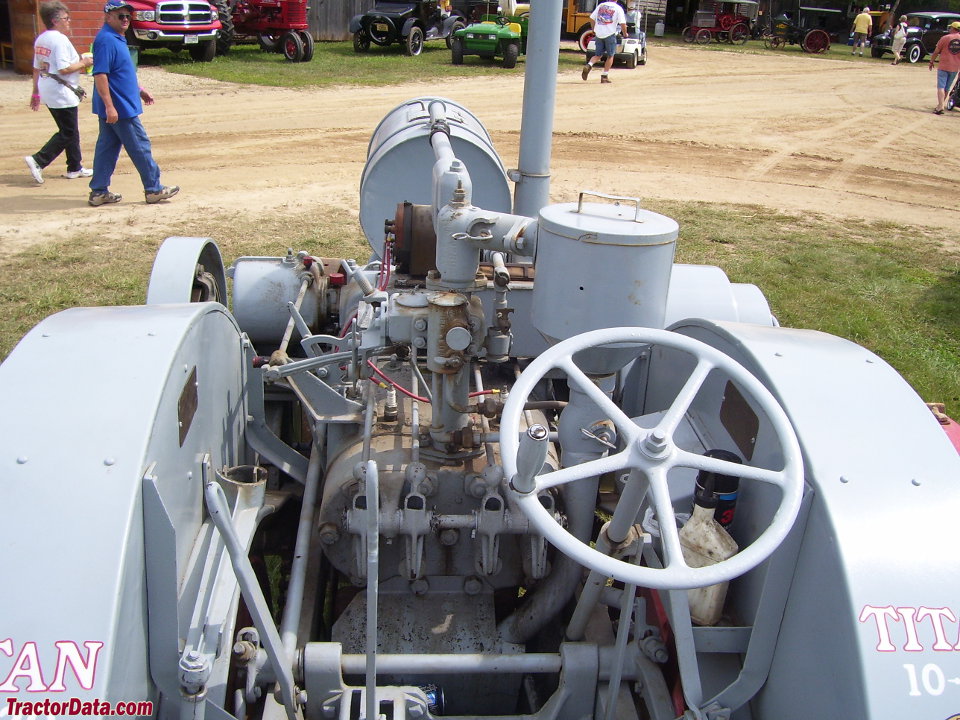

Engine
International Harvester 8.7L 2-cyl keroseneReference
Drawbar (claimed)7.5 kWReference
Belt (claimed)14.9 kWReference
International HarvesterReference
keroseneReference
2-cylinderReference
liquid-cooled horizontal valve-in-headReference
Displacement8.7 LReference
Bore/Stroke165 x 203 mmReference
Rated RPM575Reference

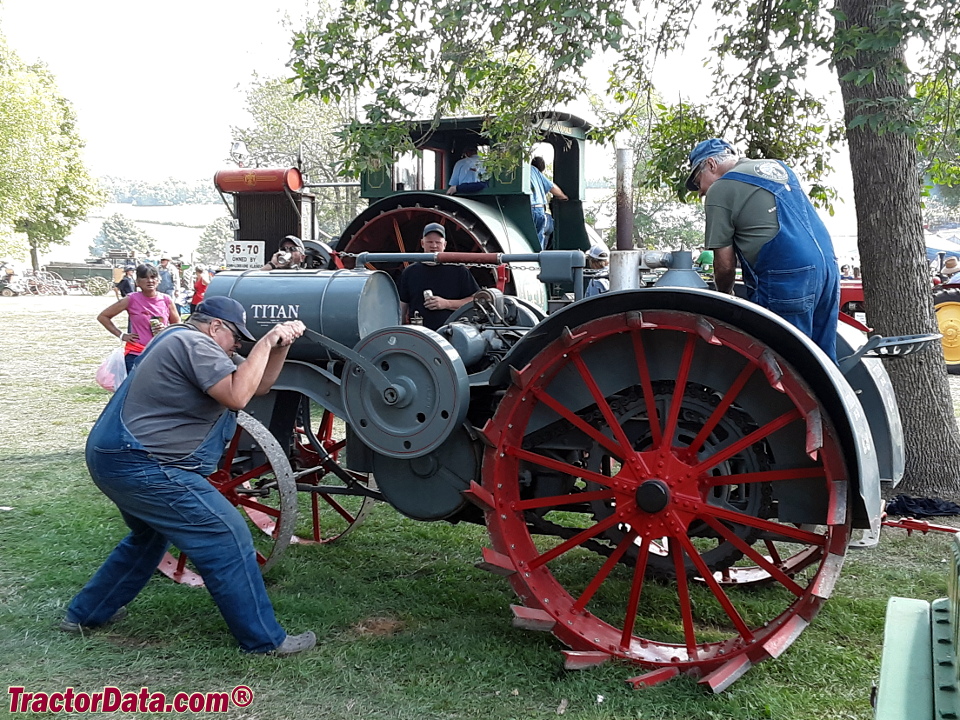

Starter typehand-crankReference
Coolant capacity151.4 LReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Oil capacity11.4 LReference
Oil type600WReference
Dimensions
Wheelbase231 cmReference
Weight2506 kgReference
Front tire36x6Reference
Rear tire54x10Reference
Ag front36x6 steelReference
Ag rear54x10 steelReference
Length373 cmReference
Width152 cmReference
Height169 cmReference
10-20 Serial Numbers
1915TV101Reference
1916TV108Reference
1917TV2354Reference
1918TV11398Reference
1919TV29073Reference
1920TV46307Reference
FinalTV50235Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
