Tractor · 1971Unverified

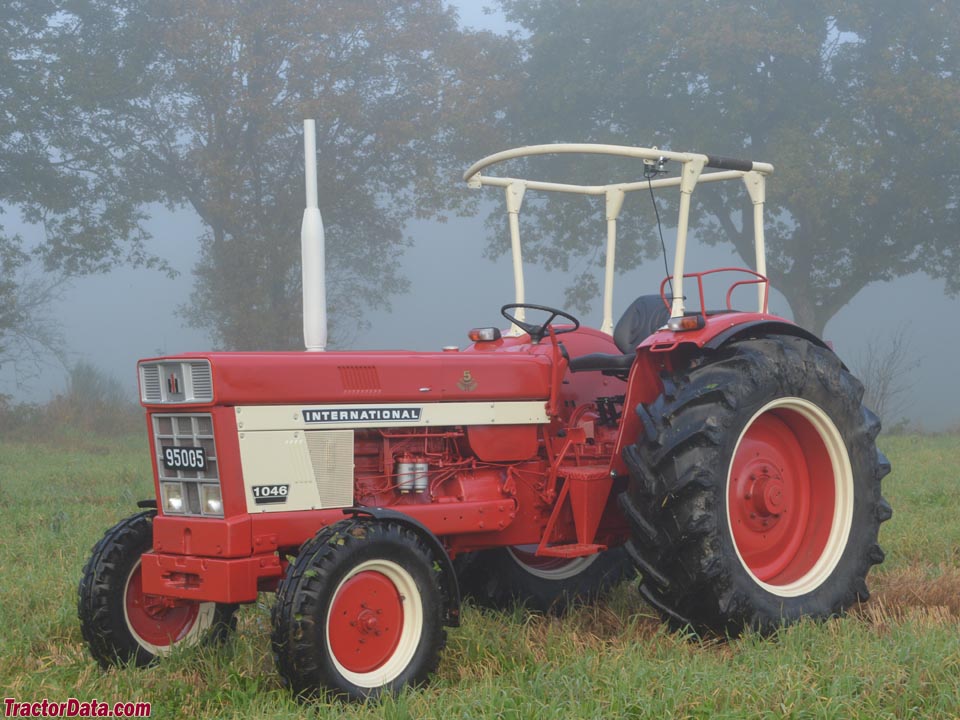

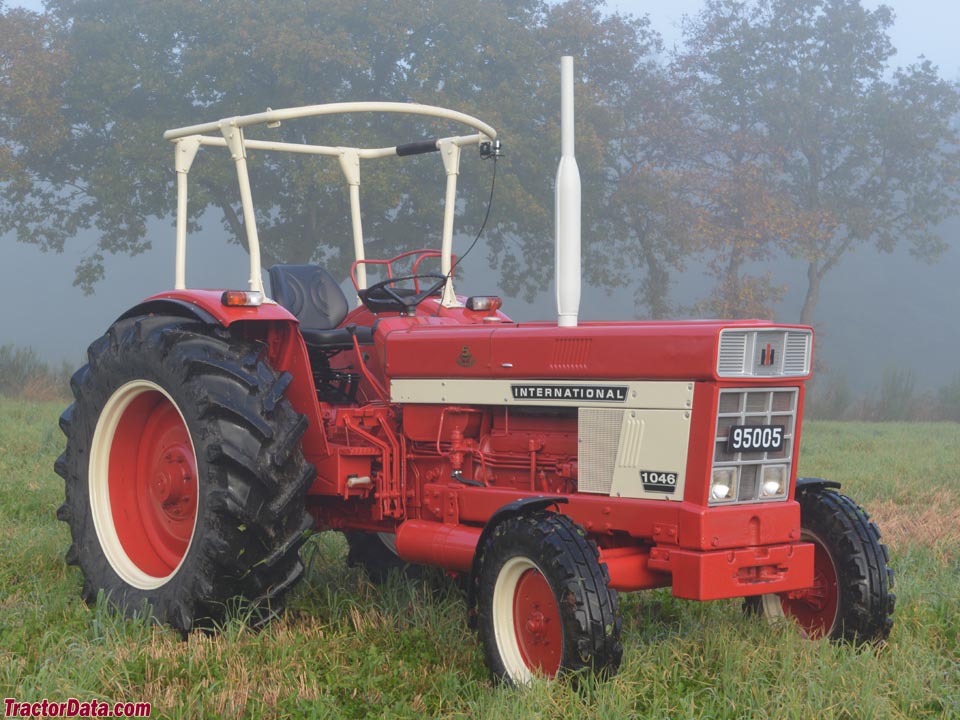

International Harvester 1046
International Harvester 1046 — Row-Crop tractor · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
8929 to 9700 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Power steeringReference
Engine
International Harvester 5.9L 6-cyl dieselReference
Fuel tank110.1 LReference
Engine (gross)80.9 kWReference
International Harvester D-358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Power (gross)80.9 kWReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity14.0 LReference
Coolant capacity27.0 LReference
Transmission
12-speedReference
16-speedReference
Gears12 forward and 5 reverseReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
PTO (claimed)70.0 kWReference
Pump flow37.9 lpmReference
Rear TypeIIReference
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase259 cmReference
Weight8929 to 9700 poundsReference
Front tire7.50x20Reference
2WD Rear tire18.4/15x38Reference
2WD Standard tires (ag)Front: 7.50x20. Rear: 18.4/15x38Reference
4WD Standard tires (ag)Front: 11.25/13x24. Rear: 18.4/15x38Reference
2WD Optional tires (ag)Front: 7.50x18. Rear: 18.4/15x34Reference
4WD Optional tires (ag)Front: 11.2/10x28. Rear: 18.4/15x38Reference
Length392 cmReference
Width208 cmReference
Height (hood)151 cmReference
2WD Weight4050 kgReference
4WD Weight4399 kgReference
Ground clearance39 cmReference
Front tread151 to 182 cmReference
Rear tread162 to 212 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
