Tractor · 1958Unverified

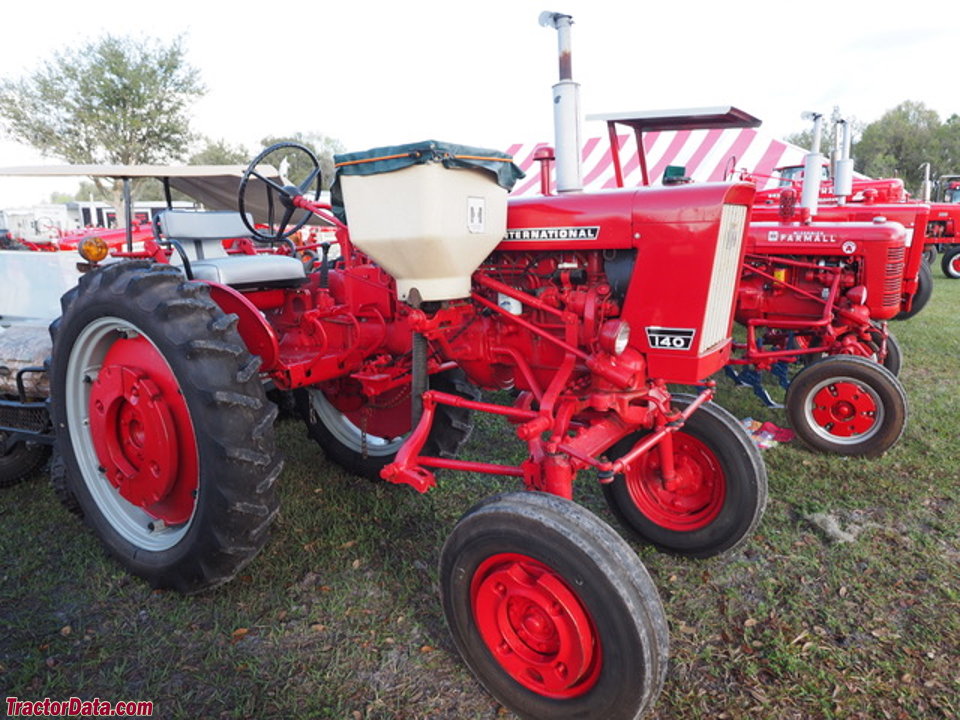

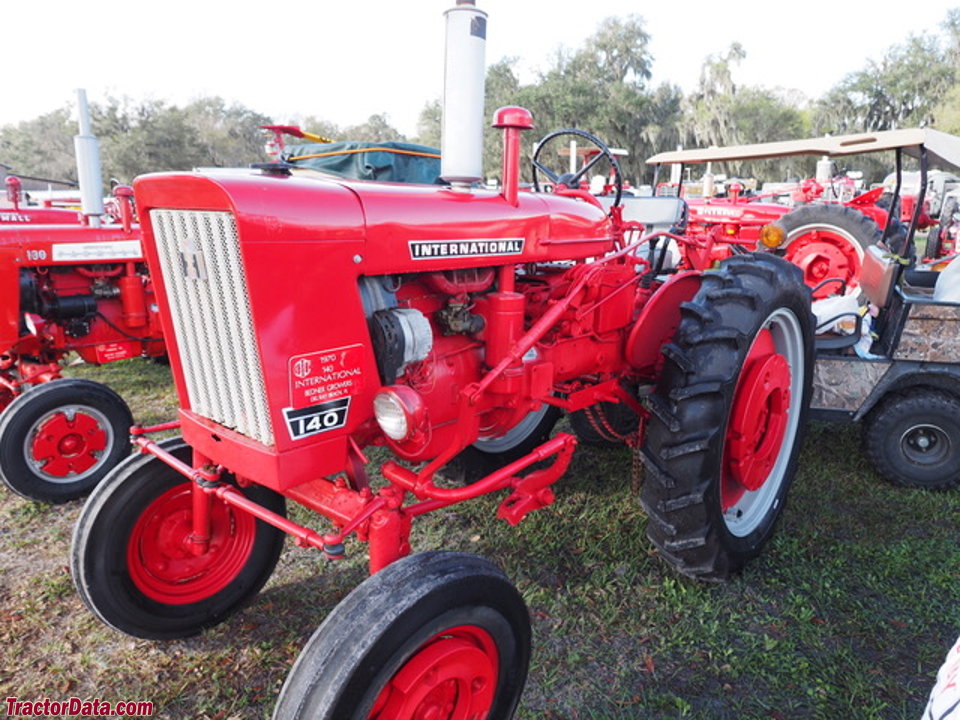

International Harvester 140

Name: International Harvester 140
Brand: International Harvester

International Harvester 140 · 28 hp. Reference specifications; pending source verification.

The International Harvester 140 is a compact tractor model, rated at 28 hp. Manufactured from 1958 to 1979, it features a 4-cylinder petrol liquid-cooled engine and a 4-speed gearbox, driving through two-wheel drive. The model's weight ranges from 2700 to 3000 pounds, and it is suited for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Max power

15.8 kW

Weight

2700 to 3000 pounds

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

28 hp

Recorded weight

1224 kg

Transmissions

4-speed sliding gear

Production years

1958-1979

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerInternational HarvesterReference

Total built66,290Reference

Original price was $8,200 in 1979Reference

The International 140 began as the industrial version of the Farmall 140. Industrial tractors had heavier front axles and foot-operated throttles, among other options. As the Farmall and International brands were merged the differences simply became options that the buyer could order.Reference

Two-wheel driveReference

Steeringmanual worm-and-sectorReference

Differential mechanical contracting band brakesReference

Open operator station.Reference

Engine

International Harvester 2.0L 4-cyl gasolineReference

Engine (gross)20.9 kWReference

Engine (net)18.6 kWReference

Drawbar (tested)15.8 kWReference

Belt (tested)17.2 kWReference

International Harvester C-123Reference

gasolineReference

4-cylinderReference

liquid-cooled vertical I-headReference

Displacement2.0 LReference

Bore/Stroke79 x 102 mmReference

Power (net)18.6 kWReference

Power (gross)20.9 kWReference

Air cleaneroil bathReference

Compression6.94:1Reference

Rated RPM1400Reference

Torque143.7 NmReference

Torque RPM1400Reference

Firing order1-3-4-2Reference

Starter volts6 (early)Reference

Starter volts12 (late)Reference

Oil capacity4.7 LReference

Coolant capacity14.2 LReference

Belt power (max)17.2 kWReference

Max power15.8 kWReference

Transmission

4-speed sliding gearReference

Typesliding gearReference

Gears4 forward and 1 reverseReference

Clutchsingle 9-inch dry discReference

Oil capacity4.7 LReference

PTO & Hydraulics

PTO (claimed)15.7 kWReference

Hydraulic system12.8 LReference

TypeIH Touch-ControlReference

Capacity12.8 LReference

Total flow17.4 lpmReference

TypeIH Fast Hitch (one-point)Reference

Rear PTOtransmissionReference

Rear PTO Type540Reference

Capacities

Fuel41.6 LReference

Dimensions

Wheelbase180 cmReference

Weight2700 to 3000 poundsReference

Front tire5.00-15Reference

Rear tire9.5-24Reference

Ag front5.00-15Reference

Ag rear9.5-24Reference

Ag front6.00-16Reference

Ag rear11.2-24Reference

Lawn/turf rear12.4-24Reference

Length271 cmReference

Width142 cmReference

Height (steering wheel)166 cmReference

Shipping weight1224 kgReference

Operating weight1360 kgReference

Ground clearance56 cmReference

Front tread101 to 147 cmReference

Rear tread101 to 172 cmReference

International Harvester 140 attachments

front-end loaderReference

140 Serial Numbers

Location:Serial number plate on the left side of the tractor, on the clutch housing.Reference

1958501Reference

19592011Reference

19608082Reference

196111168Reference

196216637Reference

196321181Reference

196425387Reference

196528408Reference

196631285Reference

196734818Reference

196837352Reference

196939906Reference

197042300Reference

197144424Reference

197246605Reference

197348507Reference

197450720Reference

197554273Reference

197657773Reference

197760839Reference

197863111Reference

197964544Reference

FAQ: How to read a serial number table.Reference

Electrical

Groundpositive (6V)Reference

Groundnegative (12V)Reference

Charging systemgenerator (early)Reference

Charging systemalternator (late)Reference

Battery volts6 (early)Reference

Battery volts12 (late)Reference

Test results

Gasoline 4-speed 2WDSeptember 3 - 18, 1958Link: Nebraska Tractor Test 666 fileReference

Belt fuel use (max)7.6 l/hourReference

Drawbar performanceReference

Fuel use7.6 l/hourReference

Gear 2 used for power test.Reference

Max pull1637 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
