Tractor · 1971Unverified

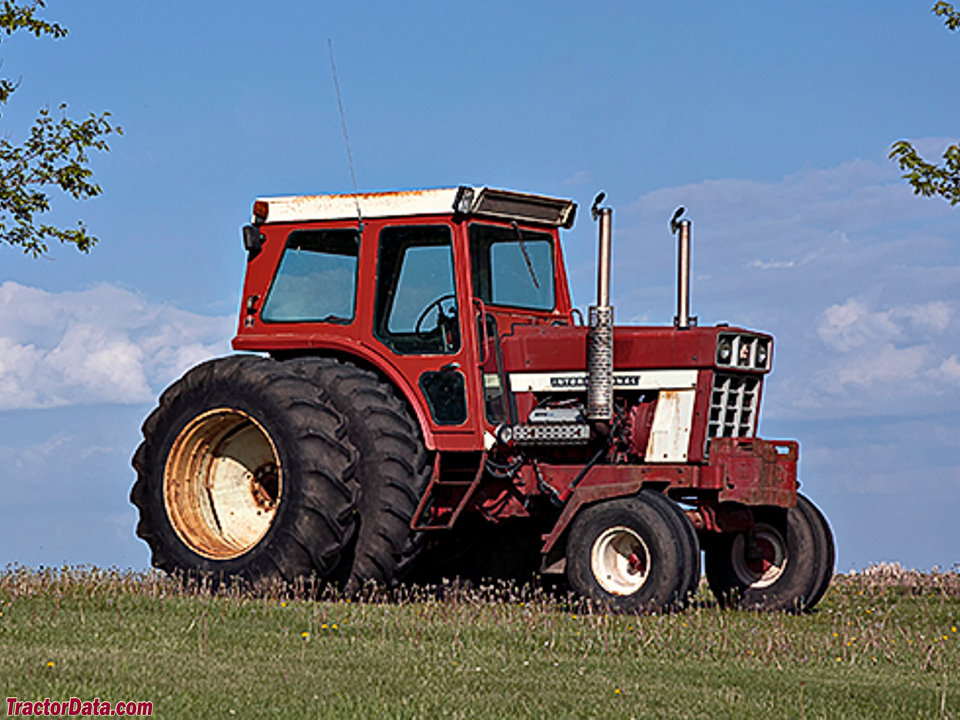

International Harvester 1468
International Harvester 1468 — 66 Series · 146 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
146 hp
Max power
95.2 kW
Weight
10700 to 11850 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built2,905Reference
Original price was $20,400 in 1974Reference
The 1468 was a 1466 with a International V8 truck engine.Reference
Two-wheel driveReference
Final drivesbull gearReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with air-conditioning.Reference
Engine
International 9.0L 8-cyl dieselReference
Fuel tank159.0 LReference
Drawbar (tested)95.2 kWReference
International DV-550Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement9.0 LReference
Bore/Stroke114 x 110 mmReference
Pre-heatingether injectionReference
Compression17:1Reference
Rated RPM2400 (early)Reference
Rated RPM2600 (late)Reference
Idle RPM700-2650 (early)Reference
Idle RPM900-2830 (late)Reference
Firing order1-8-7-3-6-5-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Coolant capacity28.4 LReference
Power at rated engine speed108.5 kWReference
Max power95.2 kWReference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)99.2 kWReference
PTO (claimed)108.1 kWReference
PTO (tested)108.5 kWReference
Typeopen centerReference
Rear valves1Reference
Pump flow45.4 lpmReference
Steering flow34.1 lpmReference
Rear TypeIII/IIReference
Rear lift (at 24"/610mm)2540 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed102.0 kWReference
Dimensions
Wheelbase266 cmReference
Weight10700 to 11850 poundsReference
Front tire11L-16Reference
Rear tire18.4-38Reference
Ag front11L-16Reference
Ag rear18.4-38Reference
Length426 cmReference
Height (exhaust)320 cmReference
Shipping weight4853 kgReference
Operating weight5375 kgReference
Bar rear axle88 mmReference
Front tread147 to 208 cmReference
1468 Serial Numbers
19717201Reference
19727239Reference
19739109Reference
19749670Reference
FAQ: How to read a serial number table.Reference
Links
IH V-8 Tractor Engines: article on the V8s from TractorShop.comReference
Electrical
Charging systemalternatorReference
Charging amps37Reference
Batteries2Reference
Battery volts6Reference
Test results
Diesel Torque Amplifier 2WDNovember 9 - December 7, 1972Link: Nebraska Tractor Test 1118 fileReference
PTO performanceReference
Fuel use35.2 l/hourReference
Fuel use32.6 l/hourReference
Drawbar performanceReference
Fuel use34.8 l/hourReference
Gear 1H-TA used for power test.Reference
Max pull5865 kgReference
Gear 3L-TA used for pull test.Reference
Speeds
With 18.4-38 rear tiresReference
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
