Tractor · 1982Unverified

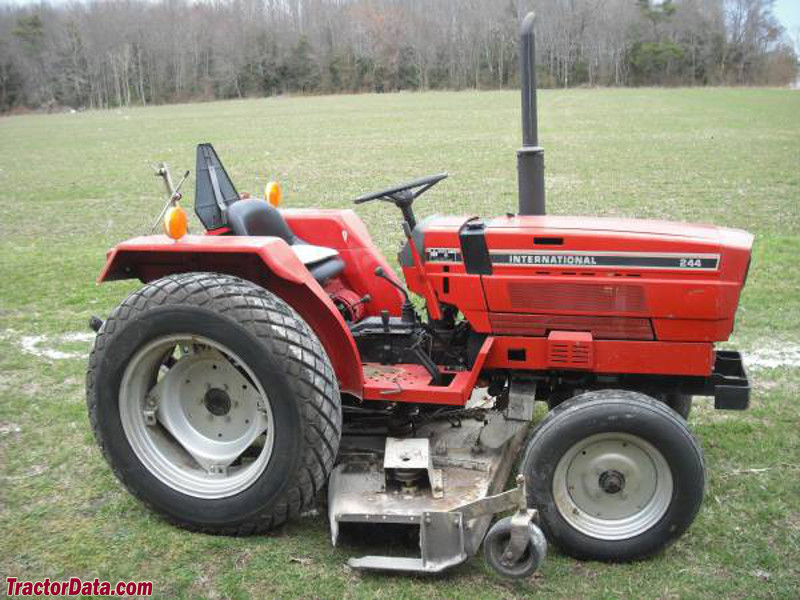

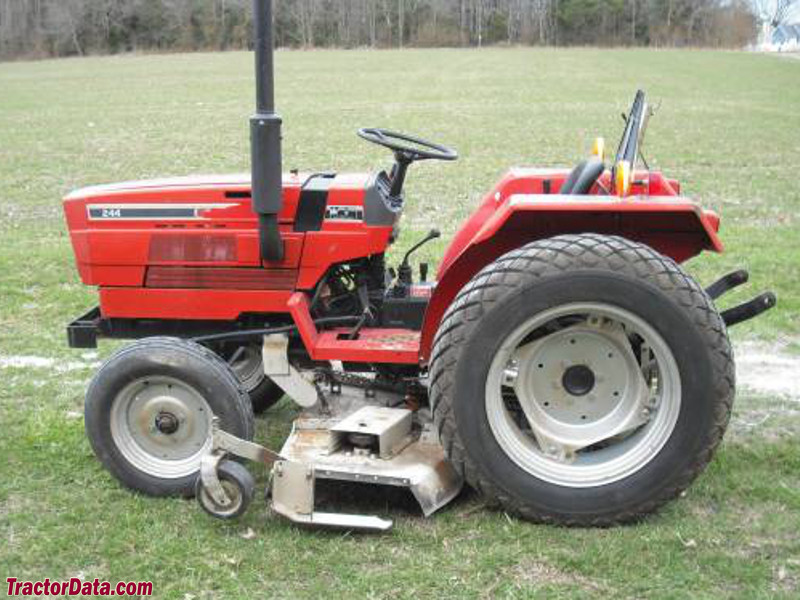

International Harvester 244
International Harvester 244 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
778 kg
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Two-post ROPS. ROPS canopy optional.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Engine15.7 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 78 mmReference
Power15.7 kWReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity4.2 LReference
Coolant capacity4.9 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Oil capacity25.0 LReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
PTO (claimed)13.4 kWReference
Hydraulic system25.0 LReference
Capacity25.0 LReference
Rear TypeIReference
Rear PTOliveReference
Rear PTO Type540/1250Reference
Capacities
Fuel20.8 LReference
Dimensions
Wheelbase152 cmReference
Weight778 kgReference
Length287 cmReference
Width110 cmReference
Height (steering wheel)134 cmReference
Shipping weight778 kgReference
Ground clearance34 cmReference
244 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 9.5-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
