Backhoe Loader · 1978Unverified

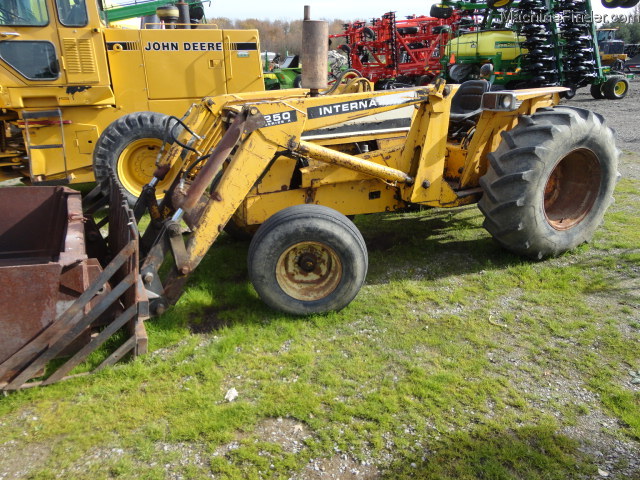

International Harvester 250A
International Harvester 250A — Backhoe loader tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
5230 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Backhoe loader tractorReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS canopy.Reference
Variants
250Aindustrial tractorReference
250A TLBbackhoeReference
Engine
International Harvester 3.9L 4-cyl dieselReference
Engine (gross)59.7 kWReference
Engine (net)52.2 kWReference
International Harvester D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power (net)52.2 kWReference
Power (gross)59.7 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.5 LReference
Coolant capacity13.2 LReference
Capacities
Fuel75.7 LReference
PTO & Hydraulics
Hydraulic system53.0 LReference
Typeopen centerReference
Capacity53.0 LReference
Pressure155.1 barReference
Torque converter Pump flow104.1 lpmReference
Gear Pump flow109.8 lpmReference
Hydro Pump flow109.8 lpmReference
Dimensions
Weight5230 kgReference
Front tire11L-16Reference
Rear tire16.9-24Reference
Industrial front11L-16Reference
Industrial rear16.9-24Reference
Industrial front7.50-16Reference
Industrial rear14.9-28Reference
Industrial rear14.9-24Reference
Width205 cmReference
Height (ROPS)254 cmReference
Height (backhoe)403 cmReference
Front tread142 cmReference
Rear tread162 cmReference
Shipping5230 kgReference
Max front axle4536 kgReference
Max rear axle6350 kgReference
Backhoe & Loader
Dig depth426 cmReference
Dump angle129 cmReference
Attachment overview
Front-end loaderReference
BackhoeReference
International Backhoe
Backhoe typeInternational BackhoeReference
Transport height403 cmReference
Digging depth426 cmReference
Reach from pivot548 cmReference
Loading height389 cmReference
Bucket Rotation178°Reference
Swing Arc180°Reference
Bucket force4626 kgReference
Dipperstick force2783 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
