Backhoe Loader · 1974Unverified

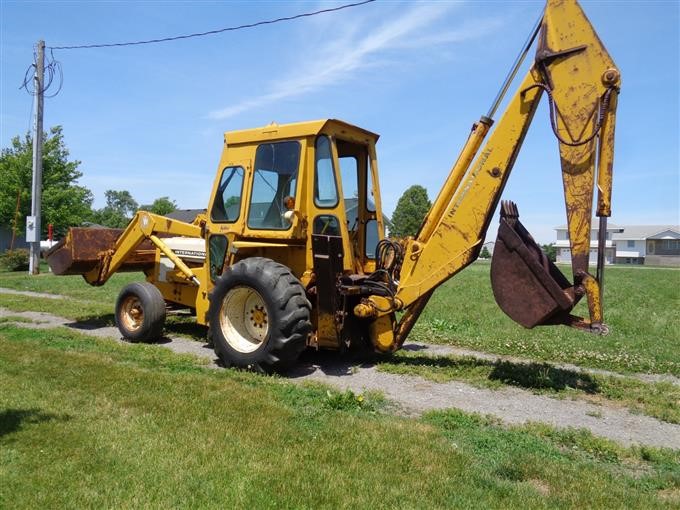

International Harvester 2514B
International Harvester 2514B — Backhoe loader tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
10602 to 10865 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Backhoe loader tractorReference
Built in Louisville, Kentucky, USAReference
Two-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Open operator station. Four-post ROPS available.Reference
Variants
2500Butility tractorReference
2505Butility loaderReference
2510BPay loaderReference
2514Bloader-backhoeReference
Engine
International Harvester 3.9L 4-cyl dieselReference
International Harvester 3.3L 4-cyl gasolineReference
Fuel tank75.7 LReference
Engine (gross)59.7 kWReference
Engine (net)52.2 kWReference
Gas hydro Drawbar (claimed)29.1 kWReference
Diesel hydro Drawbar (claimed)31.3 kWReference
International Harvester D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power (net)52.2 kWReference
Power (net)44.0 kWReference
Power (gross)59.7 kWReference
Power (gross)50.0 kWReference
Fuel systemdirect injectionReference
Compression16:1Reference
Rated RPM2200 (gear)Reference
Rated RPM2400 (hydro)Reference
Starter volts12Reference
Oil capacity9.5 LReference
Coolant capacity13.2 LReference
International Harvester C-200Reference
gasolineReference
Displacement3.3 LReference
Bore/Stroke97 x 112 mmReference
Power (net)49.2 kWReference
Power (gross)49.2 kWReference
Power (gross)55.2 kWReference
Compression7.3:1Reference
Oil capacity6.6 LReference
Coolant capacity11.4 LReference
Transmission
8-speed gearReference
8-speed reverserReference
Gas gear Drawbar (claimed)33.6 kWReference
Diesel gear Drawbar (claimed)33.6 kWReference
Gas gear Shipping4809 kgReference
Diesel gear Shipping4843 kgReference
TypegearReference
Gears8 forward and 4 reverseReference
Oil capacity34.1 LReference
TypereverserReference
Gears8 forward and reverseReference
TransmissionhydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gas hydro PTO (claimed)37.3 kWReference
Gas gear PTO (claimed)38.8 kWReference
Diesel hydro PTO (claimed)39.5 kWReference
Diesel gear PTO (claimed)38.8 kWReference
Typeopen centerReference
Pressure155.1 barReference
Pump flow45.4 lpmReference
Pump flow15.1 lpmReference
Pump flow68.1 lpmReference
Dimensions
Wheelbase213 cmReference
Weight10602 to 10865 poundsReference
Front tire7.50-16Reference
Rear tire14.9-24Reference
Industrial front7.50-16Reference
Industrial rear14.9-24Reference
Industrial front11L-16Reference
Industrial rear16.9-24Reference
Industrial rear17.5L-24Reference
Width190 cmReference
Height (steering wheel)137 cmReference
Height (backhoe)391 cmReference
Ground clearance22 cmReference
Gas hydro Shipping4894 kgReference
Diesel hydro Shipping4928 kgReference
Backhoe & Loader
Dig depth441 cmReference
Dump angle129 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps37Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
International Backhoe
Backhoe typeInternational BackhoeReference
Transport height391 cmReference
Bucket width60 cmReference
Digging depth441 cmReference
2-Foot flat digging depth431 cmReference
Reach from pivot546 cmReference
Loading height378 cmReference
Bucket Rotation178°Reference
Swing Arc180°Reference
Bucket force5136 kgReference
Dipperstick force2876 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
