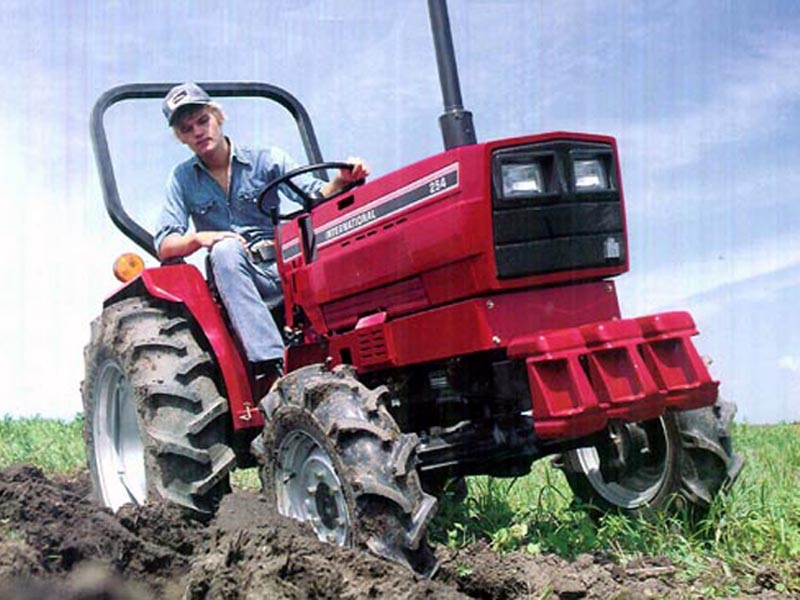

The International Harvester 254 is a tractor with a rated power of 21 hp, categorising it as a lighter model within its class. Produced from 1982 to 1984, this model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a 9-speed gearbox. Its listed operating weight is 798 kg, and it is suited for operations of up to 200 ac. The specifications for the UK and US versions are detailed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
798 kg
Catalogue coverage
Variants represented
2
Richest spec table
48 rows
Recorded power
21 hp
Recorded weight
798 kg
Transmissions
9-speed gear
Production years
1982-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Built in JapanReference
Original price was $8,000 in 1984Reference
Two- or four-wheel driveReference
Two-post ROPS, canopy optional.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Engine17.9 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke76 x 78 mmReference
Power17.9 kWReference
Rated RPM2800Reference
Starter volts12Reference
Oil capacity4.2 LReference
Coolant capacity4.9 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Oil capacity25.0 LReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
Hydraulic system25.0 LReference
Capacity25.0 LReference
Pump flow15.9 lpmReference
Rear Type1Reference
Rear PTOliveReference
Rear PTO Type540/1250Reference
Capacities
Fuel20.8 LReference
Dimensions
Wheelbase152 cmReference
Weight798 kgReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15Reference
Ag rear11.2-24Reference
Length287 cmReference
Width116 cmReference
Height (steering wheel)136 cmReference
2WD Shipping weight798 kgReference
Ground clearance36 cmReference
254 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 11.2-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
