Tractor · 1979Unverified

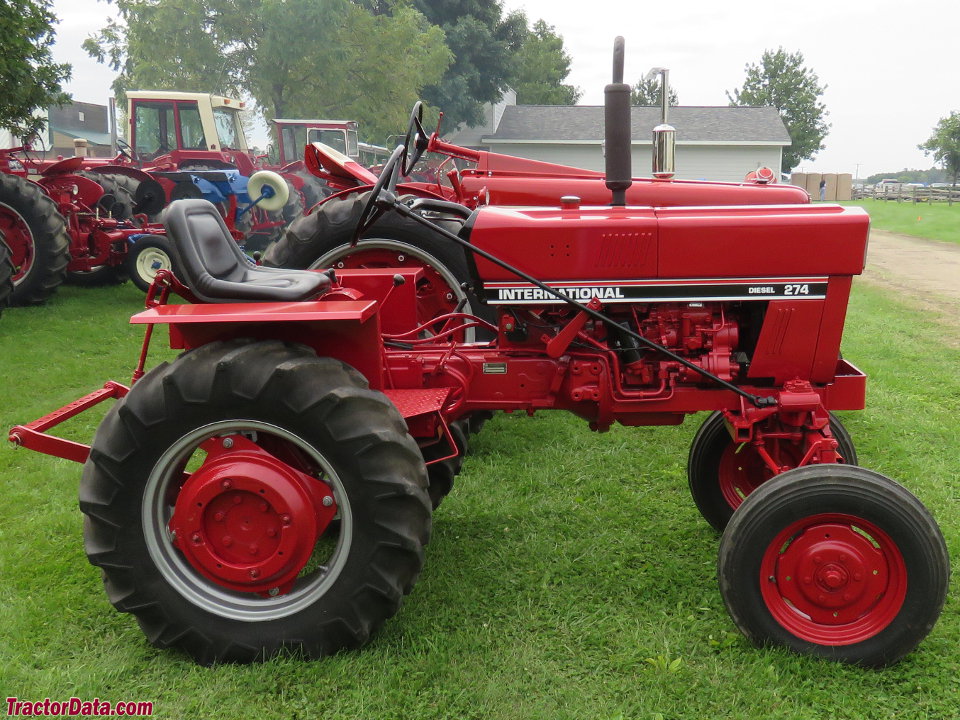

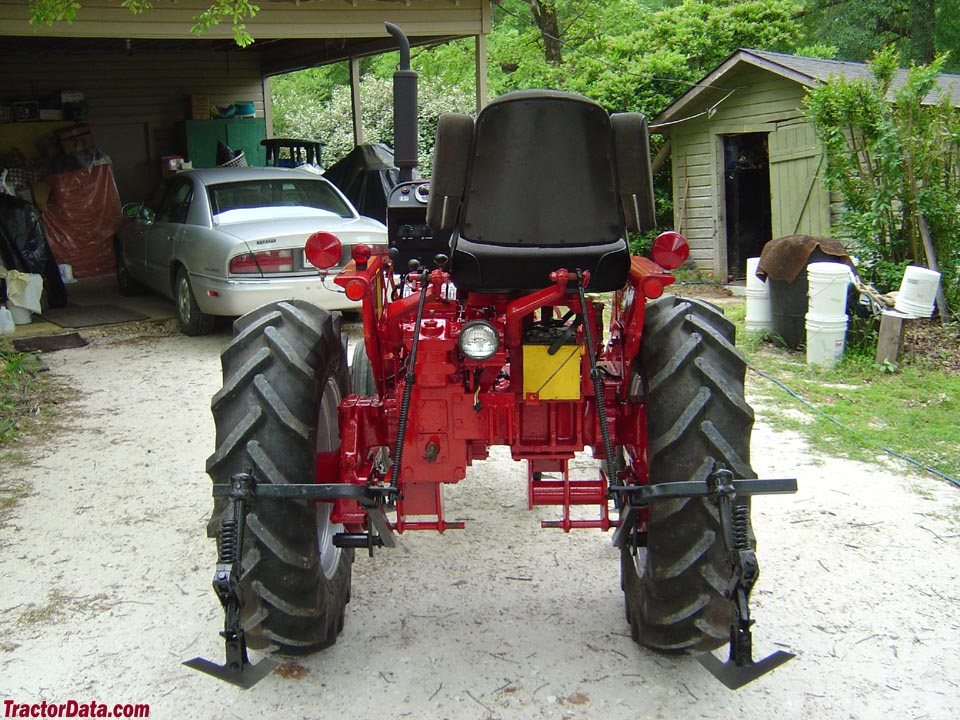

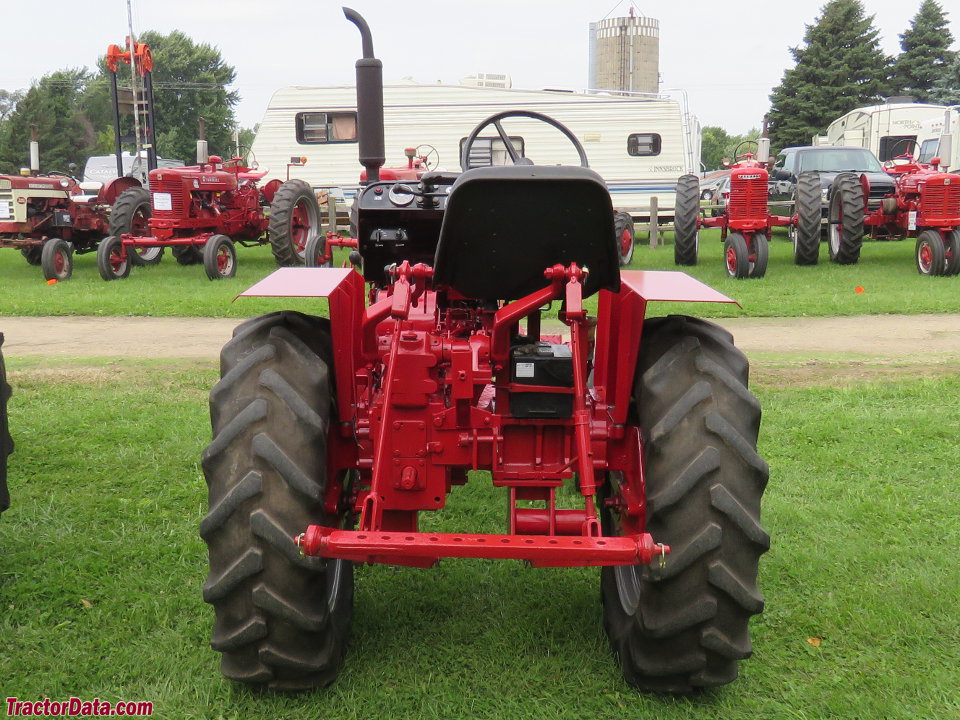

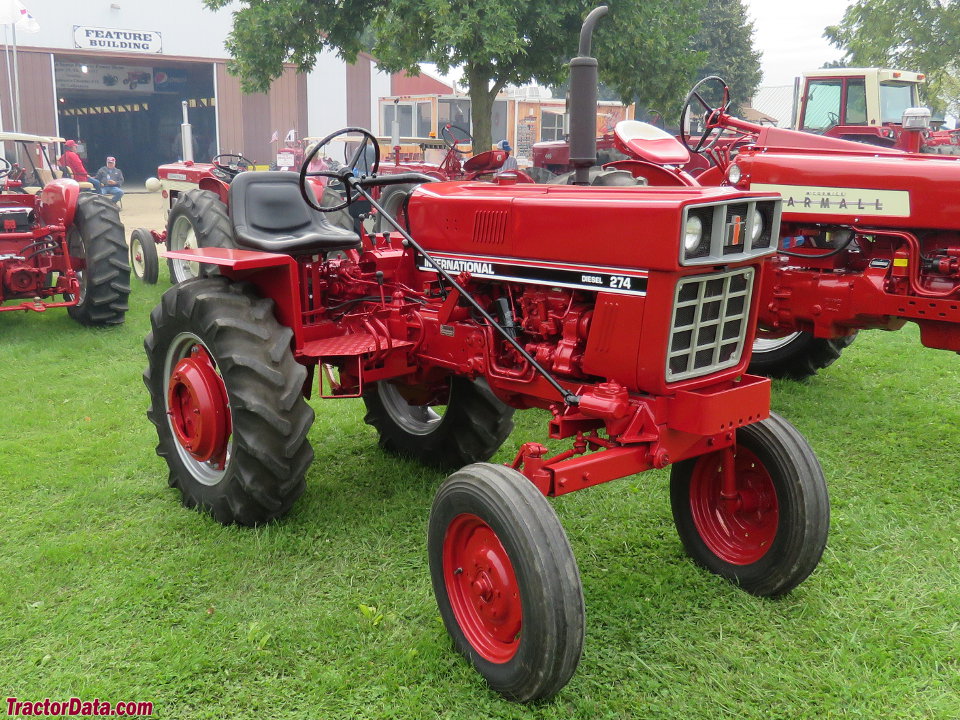

International Harvester 274
International Harvester 274 — High-Clearance tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1233 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
High-Clearance tractorReference
Original price was $10,300 in 1983Reference
The IH 274 Offset was a 284 modified by the KIMCO corporation (Komatsu) of Japan.Reference
Two-wheel driveReference
Hydraulic disc brakesReference
Two-post ROPS. Optional canopy.Reference
Engine
Nissan 1.6L 3-cyl dieselReference
Engine22.4 kWReference
NissanReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke83 x 100 mmReference
Power22.4 kWReference
Rated RPM2600Reference
Idle RPM600-2760Reference
Starter volts12Reference
Coolant capacity6.8 LReference
Oil capacity5.0 LReference
Oil change100 hReference
Transmission
8-speedReference
Transmissionsliding gearReference
Gears8 forward and 2 reverseReference
Clutch8.5-inch dry discReference
Oil capacity12.9 LReference
Four gears, plus reverse, with high and low ranges.Reference
PTO & Hydraulics
PTO (claimed)20.4 kWReference
Hydraulic system12.9 LReference
Capacity12.9 LReference
Pressure128.0 barReference
Pump flow21.6 lpmReference
Rear TypeIReference
Rear PTO Type540Reference
Engine RPM540@2160Reference
Capacities
Fuel32.9 LReference
Dimensions
Wheelbase184 cmReference
Weight1233 kgReference
Front tire5.50-16Reference
Rear tire12.4-24Reference
Ag front5.50-16Reference
Ag rear12.4-24Reference
Length277 cmReference
Width147 cmReference
Height (steering wheel)172 cmReference
Ground clearance58 cmReference
Front tread114 to 163 cmReference
Rear tread113 to 164 cmReference
274 Serial Number Location
Serial number plate on the right side of the International 274, ahead of the brake pedals.Reference
274 Serial Numbers
1979502Reference
1980670Reference
19818306Reference
19828948Reference
19839556Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery volts12Reference
Speeds
With 12.4/10-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
