Tractor · 1966Unverified

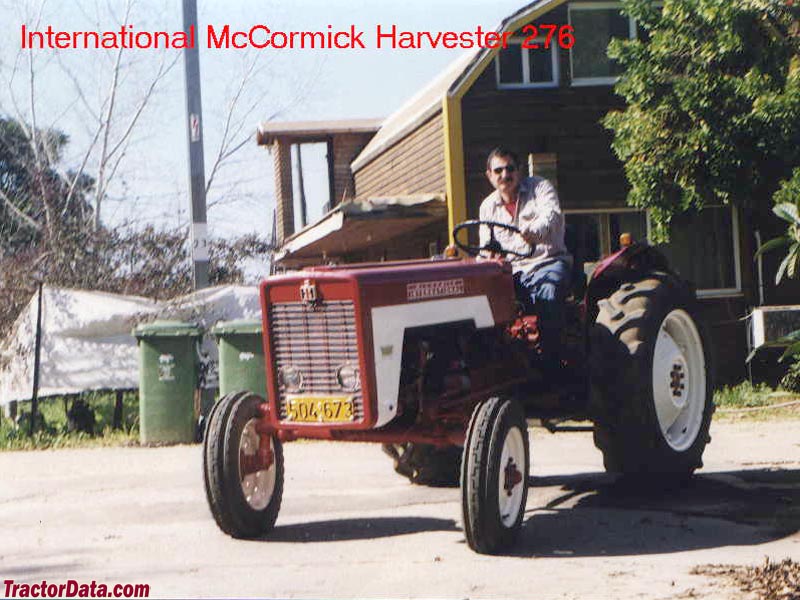

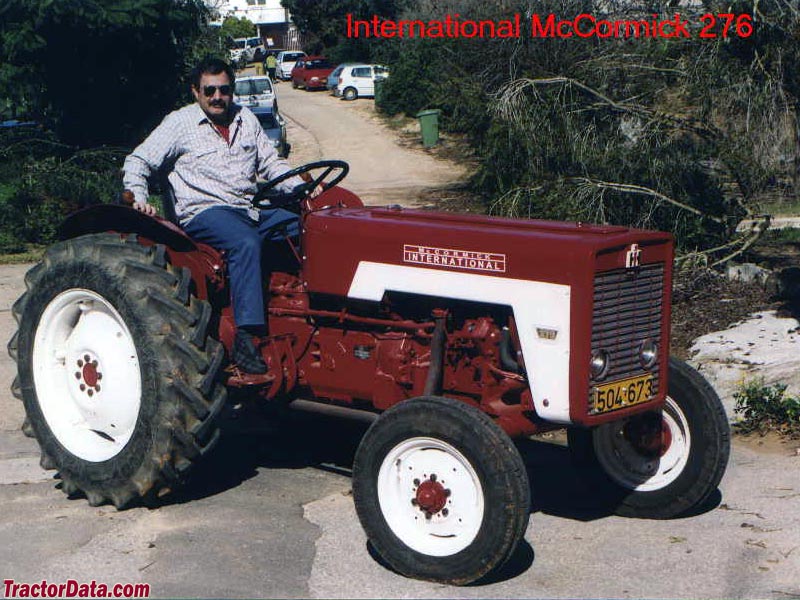

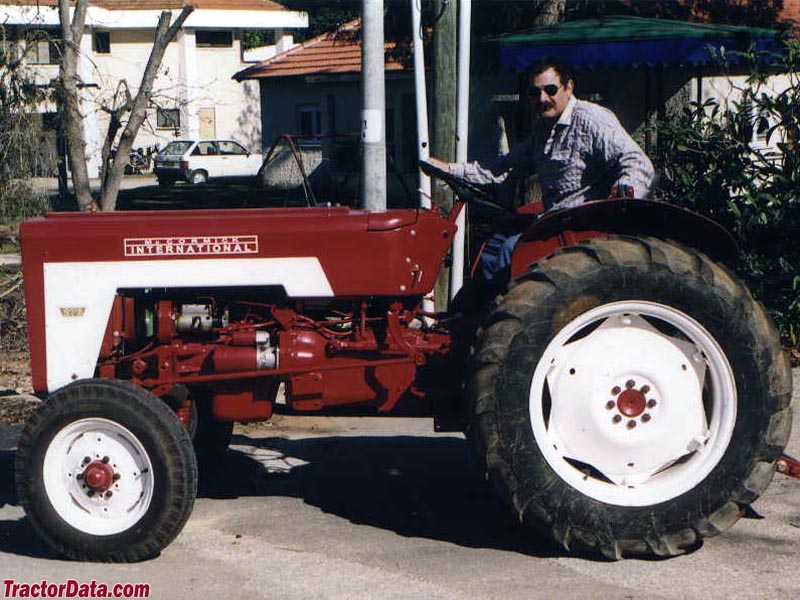

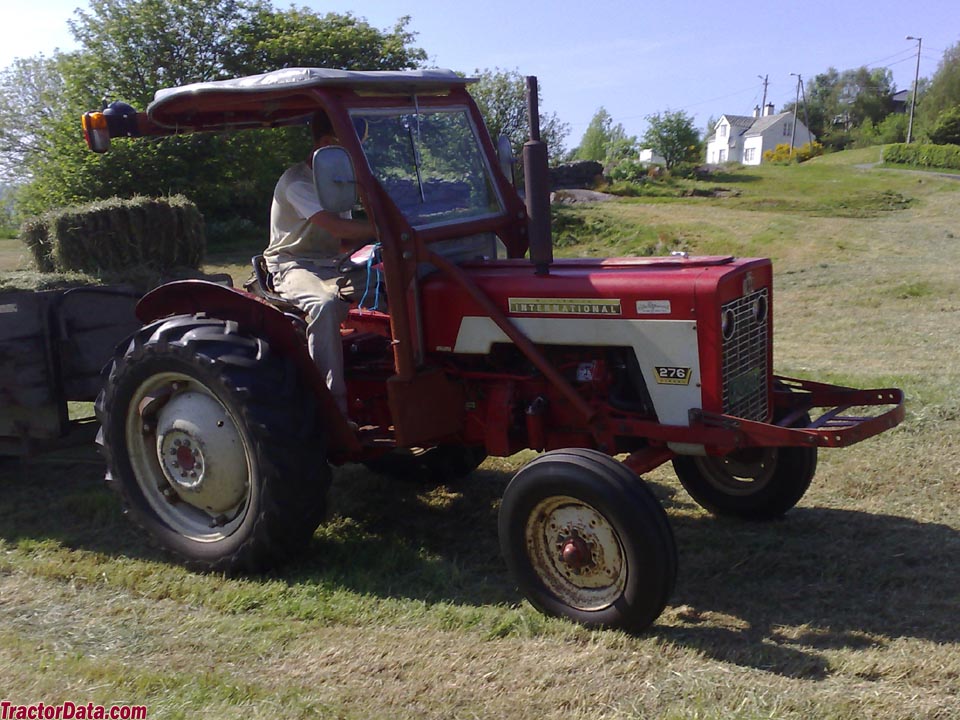

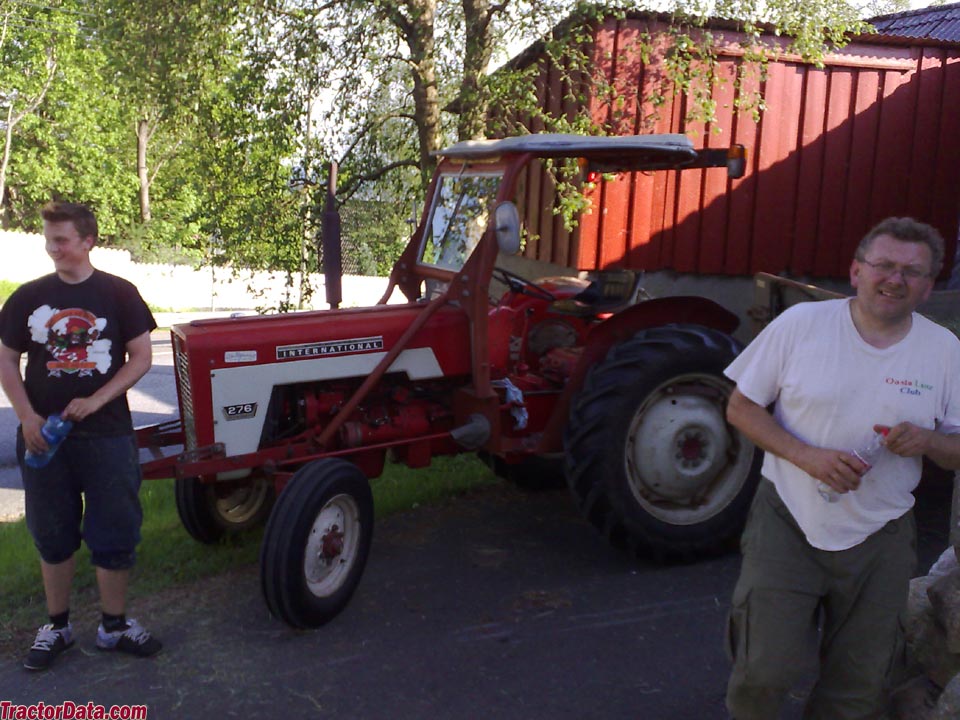

International Harvester 276
International Harvester 276 — Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1900 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Bradford, EnglandReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Variants
276utility tractorReference
2276industrial tractorReference
Engine
International Harvester 2.4L 4-cyl dieselReference
Engine28.0 kWReference
International Harvester BD-144AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 102 mmReference
Power28.0 kWReference
Rated RPM1875Reference
Firing order1-3-4-2Reference
Oil capacity7.9 LReference
Coolant capacity10.2 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
TransmissionL1:L2:L3:L4:H1:H2:H3:H4:LR:HRReference
Transmission:1.65:2.59:3.51:9.4:4.25:5.34:6.63:9:14:2.32:6.32Reference
Capacities
Fuel48.1 LReference
PTO & Hydraulics
Hydraulic system11.4 LReference
Capacity11.4 LReference
Pump flow27.3 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1179 kgReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Dimensions
Wheelbase194 cmReference
Weight1900 kgReference
Front tire6.00-16Reference
Rear tire12-28Reference
Ag front6.00-16Reference
Ag rear12-28Reference
Ag front4.00-19Reference
Ag front5.50-16Reference
Ag rear13-24Reference
Ag rear10-28Reference
Ag rear11-28Reference
Ag rear13-28Reference
Ag rear11-32Reference
Length294 cmReference
276 Serial Number Location
Serial number plate on the right side of the transmission case.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
