Tractor · 1966Unverified

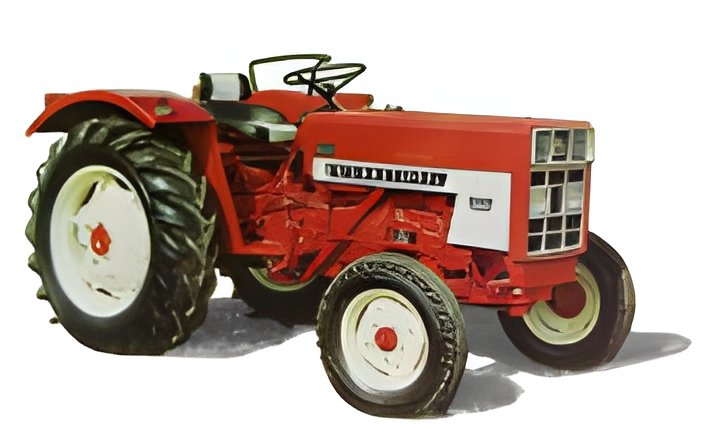

International Harvester 323
International Harvester 323 — Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1979 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Neuss, GermanyReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
International Harvester 1.8L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine20.6 kWReference
International Harvester D-111Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
Power20.6 kWReference
Rated RPM1900Reference
Starter volts12Reference
Oil capacity4.1 LReference
Coolant capacity7.5 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch225mm dry discReference
Oil capacity34.0 LReference
PTO & Hydraulics
PTO (claimed)17.1 kWReference
Rear TypeIReference
Rear lift1600 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase181 cmReference
Weight1979 kgReference
Front tire6.00-16Reference
Rear tire12.4/11-28Reference
Ag front6.00-16Reference
Ag rear12.4/11-28Reference
Length295 cmReference
Width151 cmReference
Height224 cmReference
Height (steering wheel)144 cmReference
Ground clearance37 cmReference
Front tread121 to 185 cmReference
Rear tread128 to 187 cmReference
Speeds
With 12.4/11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
