Tractor · 1981Unverified

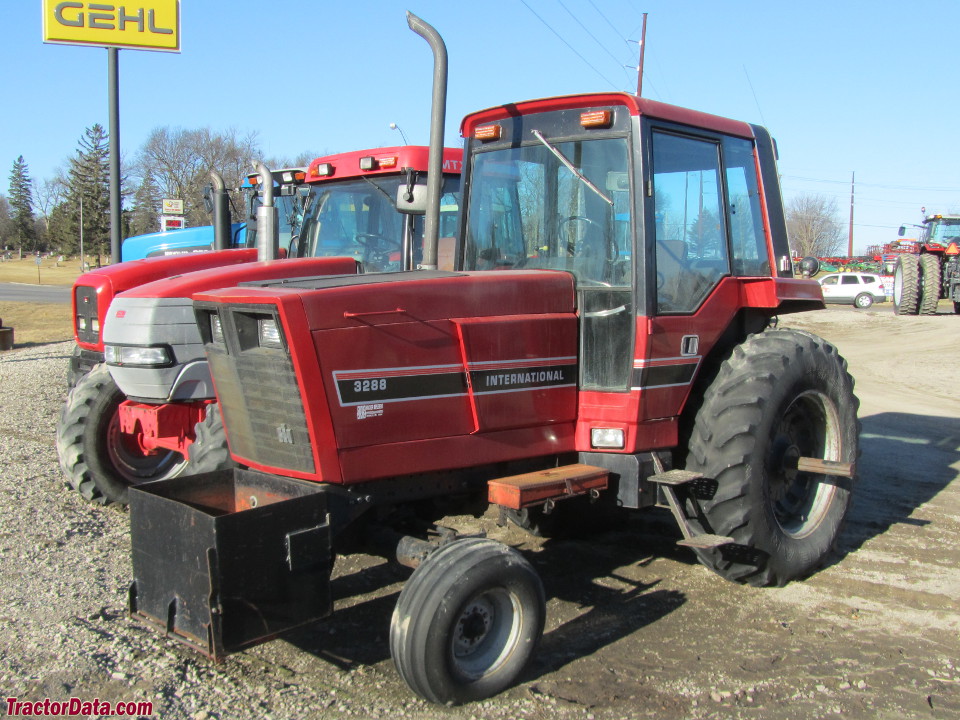

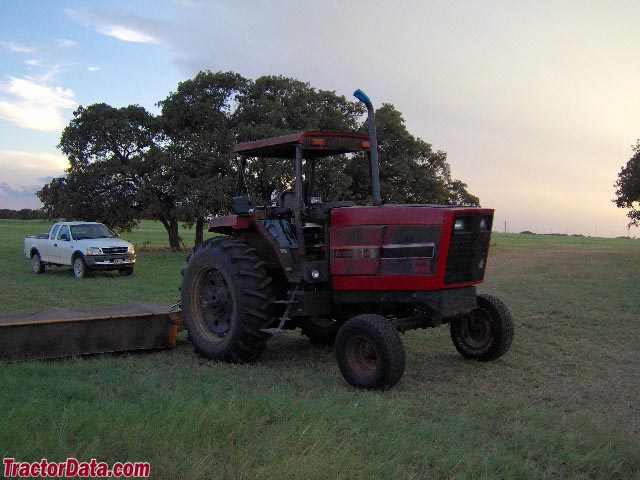

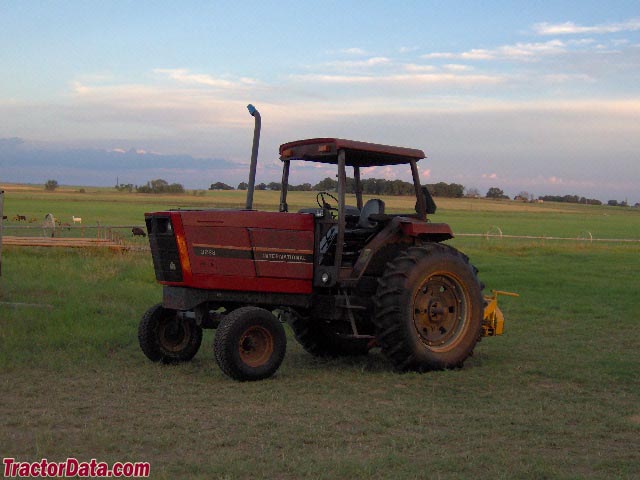

International Harvester 3288
International Harvester 3288 — 30 Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Max power
59.4 kW
Weight
11100 to 11760 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built1,162Reference
Original price was $40,000 in 1985Reference
Two- or four-wheel driveReference
Final drivesbull gearReference
Differential lockrearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional burgundy or western finish interiors.Reference
Engine
International Harvester 5.9L 6-cyl dieselReference
Drawbar (claimed)60.2 kWReference
Drawbar (tested)59.4 kWReference
International Harvester D358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Air cleanerdual dry elementReference
Compression14.8:1Reference
Rated RPM2400Reference
Idle RPM900-2400Reference
Starter volts12Reference
Coolant capacity22.7 LReference
Oil capacity10.4 LReference
Power at rated engine speed67.5 kWReference
Max power59.4 kWReference
Transmission
16-speed partial power shiftReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Clutch304.8mm cerametallic discReference
Oil capacity85.2 LReference
Left lever selects gear, right lever selects high, low, or reverse range. Tractor may be shifted on the move without the clutch between gear pairs (1-2, 3-4, etc). Synchronized shifting, using the clutch, between gear pairs (2 to 3, 4 to 5, etc). The transmission is four-gear with the powershift provided by an electric solenoid actuated Torque Amplifier.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (tested)67.5 kWReference
Hydraulic system85.2 LReference
Typeopen centerReference
Capacity85.2 LReference
Valves2 or 3Reference
Pump flow56.8 lpmReference
Total flow102.2 lpmReference
Steering flow45.4 lpmReference
Rear TypeIIReference
Controldraft sensingReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Power at rated PTO speed65.9 kWReference
Capacities
Fuel189.2 LReference
Dimensions
Wheelbase266 cmReference
Weight11100 to 11760 poundsReference
Front tire9.5L-15Reference
Rear tire18.4-34Reference
Ag front9.5L-15Reference
Ag rear18.4-34Reference
Length467 cmReference
Width259 cmReference
Height (cab)284 cmReference
Shipping weight5034 kgReference
Operating weight5334 kgReference
Ground clearance33 cmReference
Rear axle82 by 2641 mmReference
Rear axle82 by 2997 mmReference
3288 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, ahead of the rear axle.Reference
1981501Reference
19821063Reference
19831286Reference
19841464Reference
19851651Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 16-speed 2WDJune 4 - 11, 1982Link: Nebraska Tractor Test 1438 fileReference
PTO performanceReference
Fuel use23.1 l/hourReference
Fuel use20.8 l/hourReference
Drawbar performanceReference
Max pull5210 kgReference
Speeds
With 18.4-34R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
