Tractor · 1957Unverified

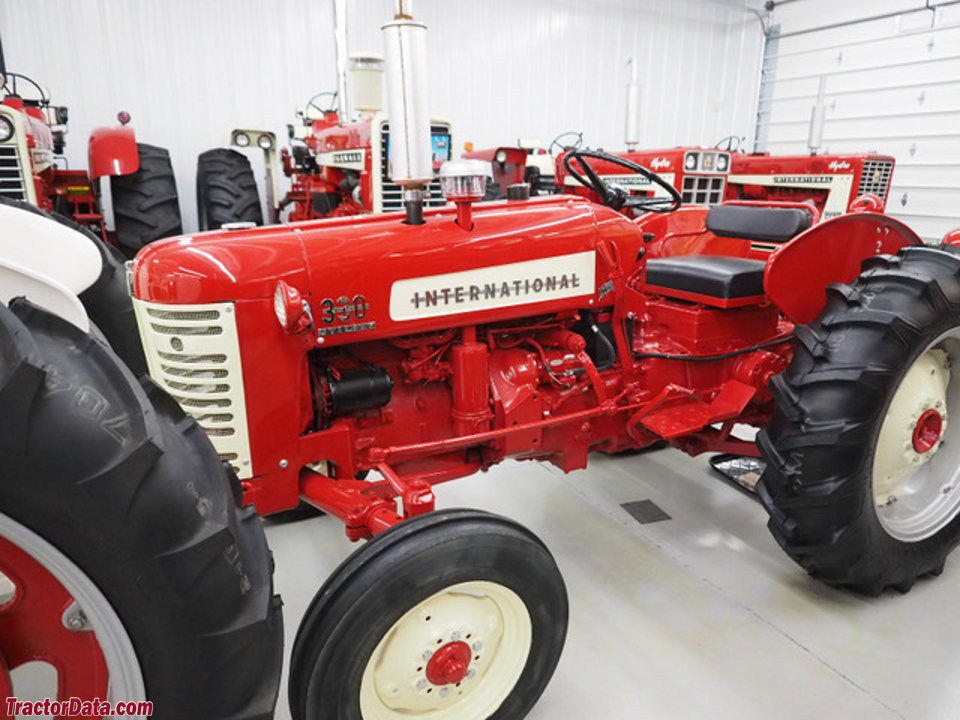

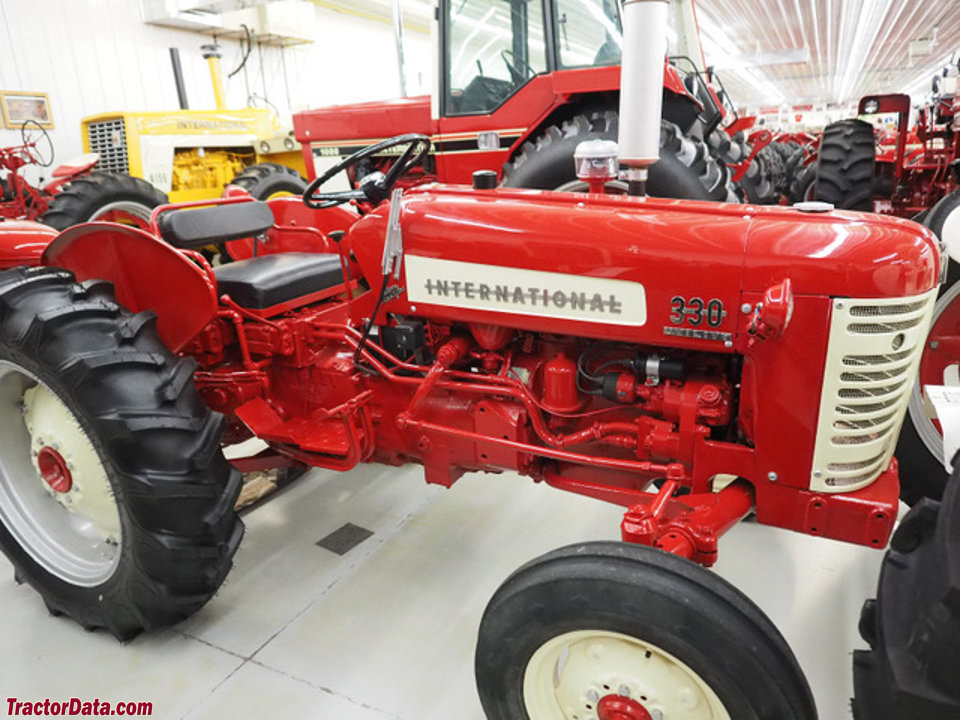

International Harvester 330
International Harvester 330 — Utility tractor · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Max power
23.7 kW
Weight
1859 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Total built4,262Reference
Original price was $2,900 in 1958Reference
The short-lived International model 330 utility tractor matched the chassis of the 350 with the smaller C-135 that would later be used in the model 340.Reference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Engine
International Harvester 2.2L 4-cyl gasolineReference
Drawbar (claimed)24.2 kWReference
Belt (claimed)26.2 kWReference
Drawbar (tested)23.7 kWReference
Belt (tested)25.5 kWReference
International Harvester C135Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 103 mmReference
Air cleaneroil bathReference
Compression7.38:1Reference
Rated RPM2000Reference
Starter volts6Reference
Coolant capacity13.2 LReference
Belt power (max)25.5 kWReference
Max power23.7 kWReference
Transmission
5-speed sliding gearReference
10-speed two-speed power shiftReference
Typesliding gearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Capacities
Fuel42.6 LReference
PTO & Hydraulics
Hydraulic system12.9 LReference
Typeopen centerReference
Capacity12.9 LReference
Valves1 to 3Reference
TypeIH Fast HitchReference
Rear PTOtransmissionReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight1859 kgReference
Front tire5.50x16Reference
Rear tire11x28Reference
Ag front5.50x16Reference
Ag rear11x28Reference
Ag front6.00x16Reference
Ag front7.50x16Reference
Ag rear10x28Reference
Ag rear12x28Reference
Ag rear14x24Reference
Length297 cmReference
Width162 cmReference
Height (steering wheel)152 cmReference
Operating weight1859 kgReference
Ballasted weight2773 kgReference
Front tread121 to 193 cmReference
Rear tread121 to 193 cmReference
International Harvester 330 attachments
front-end loaderReference
backhoeReference
330 Serial Number Location
Serial number plate on the right side of the tractor, on the clutch housing.Reference
330 Serial Numbers
1957501Reference
19581488Reference
Final4763Reference
FAQ: How to read a serial number table.Reference
Attachment overview
Front-end loaderReference
BackhoeReference
International 60 Backhoe
Backhoe typeInternational 60 BackhoeReference
Digging depth304 cmReference
Reach from pivot381 cmReference
Swing Arc180°Reference
International 90 Backhoe
Backhoe typeInternational 90 BackhoeReference
Digging depth365 cmReference
Reach from pivot487 cmReference
Swing Arc160°Reference
Test results
Gasoline Torque Amplifier 2WDNovember 5 - 14, 1957Link: Nebraska Tractor Test 634 fileReference
Belt fuel use (max)11.4 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull2136 kgReference
Gear 1-TA used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
