Tractor · 1958Unverified

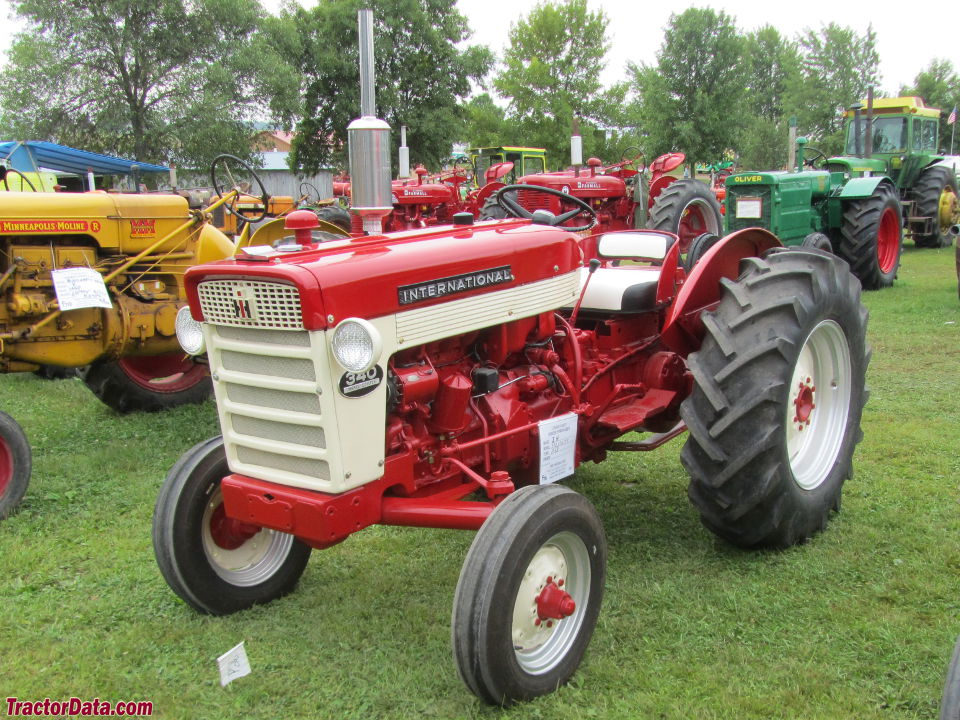

International Harvester 340
International Harvester 340 — Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
3900 to 4470 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Original price was $3,400 in 1963Reference
Two-wheel driveReference
SteeringmanualReference
Steeringhydrostatic power optionalReference
Independent mechanical disc brakesReference
Open operator station.Reference
Variants
IH 340utilityReference

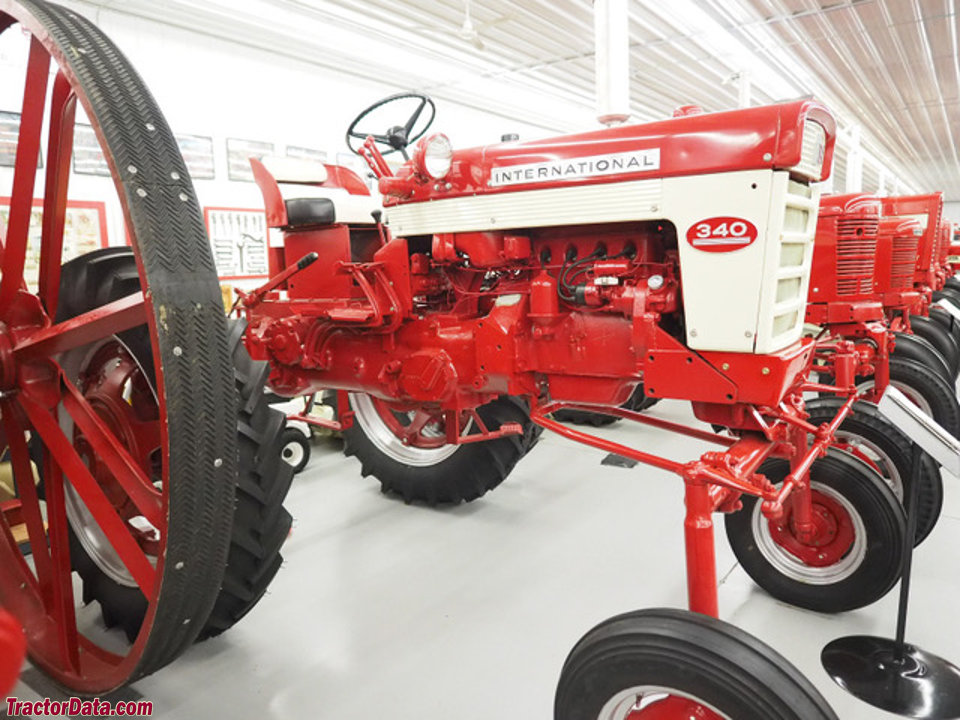

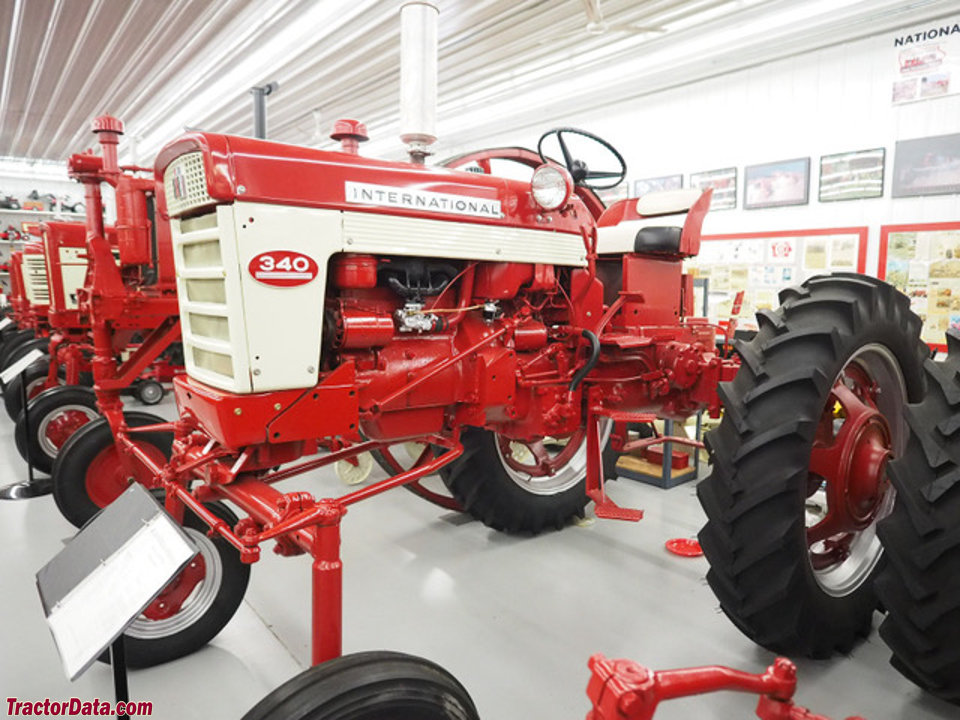

Farmall 340row-cropReference
T-340crawlerReference
International 340industrialReference
Engine
International Harvester 2.2L 4-cyl gasolineReference
International Harvester 2.7L 4-cyl dieselReference
Fuel tank57.9 LReference
Engine35.0 kWReference
Gas Drawbar (claimed)24.2 kWReference
Diesel Drawbar (claimed)26.8 kWReference
Plows3Reference
International Harvester C-135Reference
gasolineReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.2 LReference
Bore/Stroke83 x 103 mmReference
Power35.0 kWReference
Air cleaneroil bathReference
Compression7.6:1Reference
Rated RPM2000Reference
Torque173.6 NmReference
Torque RPM1200Reference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity14.2 LReference
Image courtesy of Ken JondahlReference
International Harvester D-166Reference
dieselReference
liquid-cooledReference
The diesel engine was available as an option on the 340 starting in 1960.Reference
Displacement2.7 LReference
Bore/Stroke94 x 98 mmReference
Compression19.2:1Reference
Torque174.9 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity17.6 LReference
Transmission
5-speed sliding gearReference
10-speed partial power shiftReference
5-speedReference
ManufacturerInternational HarvesterReference
Typesliding gearReference
Gears5 forward and 1 reverseReference
Oil capacity37.9 LReference
TransmissionInternational Harvester Torque AmplifierReference
Typepartial power shiftReference
Gears10 forward and 2 reverseReference
TransmissionFast ReverserReference
Gears5 forward and reverseReference
PTO & Hydraulics
Gas PTO (claimed)26.2 kWReference
Diesel PTO (claimed)29.8 kWReference
Valves0 to 3Reference
Total flow35.2 lpmReference
Total flow45.4 lpmReference
Total flow64.3 lpmReference
Steering flow9.5 lpmReference
TypeIH Fast HitchReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight3900 to 4470 poundsReference
Front tire5.50-16Reference
Rear tire11-28Reference
Weight782 kgReference
Ag front5.50-16Reference
Ag rear11-28Reference
Ag front6.00-16Reference
Ag front7.50-16Reference
Industrial rear11-28Reference
Industrial rear12-28Reference
Industrial rear12-24Reference
Industrial rear14-24Reference
Industrial rear14.9-24Reference
Length297 cmReference
Width162 cmReference
Width228 cmReference
Height (steering wheel)149 cmReference
Ground clearance33 cmReference
Clearance (front axle)50 cmReference
Gas Shipping1769 kgReference
Diesel Shipping1832 kgReference
Gas Operating1964 kgReference
Diesel Operating2027 kgReference
International Harvester 340 attachments
front-end loaderReference
backhoeReference
340 Serial Number Location
Serial number place on the right side of the International 340 clutch housing.Reference
340 Serial Numbers
1958501Reference
19592467Reference
19605741Reference
19618736Reference
196211141Reference
196312032Reference
Final?Reference
FAQ: How to read a serial number table.Reference
Attachment overview
Wagner 140 loaderReference
International Harvester 2001 loaderReference
International Harvester 2000 loaderReference
BackhoeReference
Wagner 65 Backhoe
Backhoe typeWagner 65 BackhoeReference
Transport height299 cmReference
Digging depth304 cmReference
Reach from pivot381 cmReference
Loading height243 cmReference
Swing Arc180°Reference
IH-Wagner 95 Backhoe
Backhoe typeIH-Wagner 95 BackhoeReference
Digging depth403 cmReference
Reach from pivot478 cmReference
Loading height289 cmReference
IH-Wagner 1250 Backhoe
Backhoe typeIH-Wagner 1250 BackhoeReference
Digging depth381 cmReference
Reach from pivot466 cmReference
Loading height243 cmReference
Speeds
With 11-28 rear tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
