Tractor · 1976Unverified

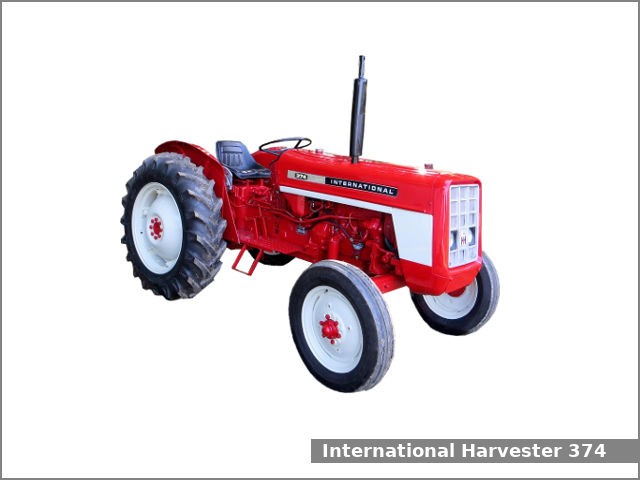

International Harvester 374
International Harvester 374 — Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2231 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Doncaster, EnglandReference
Total built617Reference
Two-wheel driveReference
Safety cab standard.Reference
Engine
International Harvester 2.5L 4-cyl dieselReference
Engine26.1 kWReference
International Harvester BD-154Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Power26.1 kWReference
Rated RPM1600Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Four gears, plus two reverse, in two ranges.Reference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTO Type540Reference
Dimensions
Wheelbase194 cmReference
Weight2231 kgReference
Front tire6.00x16Reference
Rear tire12.4/11x28Reference
Ag front6.00x16Reference
Ag rear12.4/11x28Reference
Ag rear14.9/13x28Reference
Ag rear13.6/12x28Reference
Ag rear12.4/11x32Reference
Length299 cmReference
Height (hood)146 cmReference
Height (cab)223 cmReference
Operating weight2231 kgReference
Ground clearance39 cmReference
Front tread121 to 193 cmReference
Rear tread132 to 193 cmReference
374 Serial Numbers
1976501Reference
Final1117Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
