Tractor · 1982Unverified

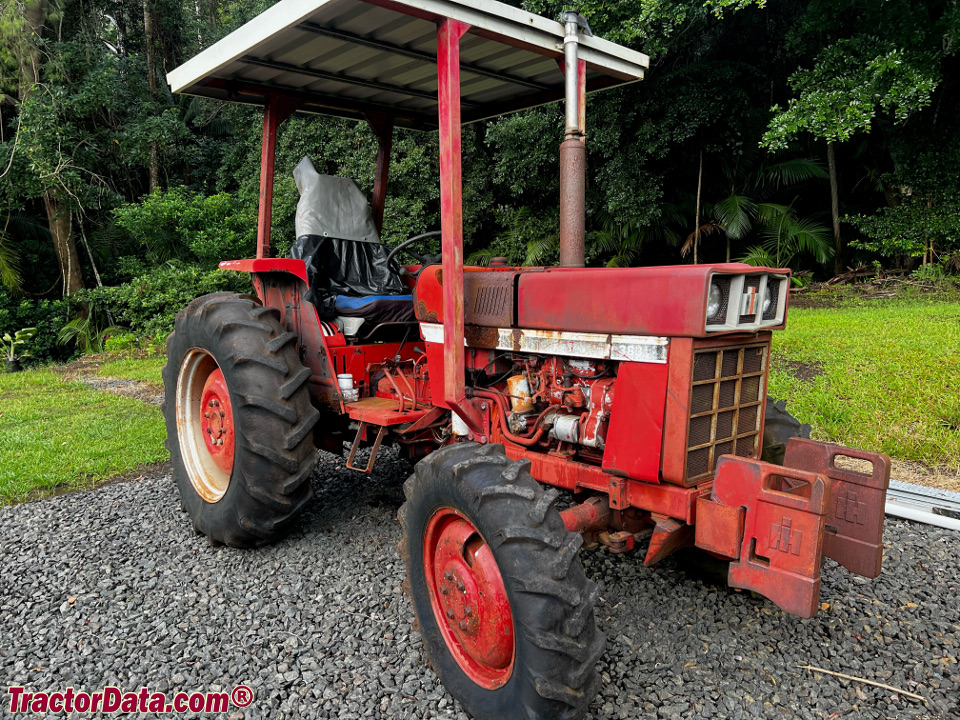

International Harvester 383
International Harvester 383 — Utility tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3484 to 3903 pounds
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerKomatsuReference
Utility tractorReference
Built in JapanReference
Original price was $11,400 in 1984Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
ROPS and canopy optionalReference
Engine
Nissan 2.2L 4-cyl dieselReference
Engine29.8 kWReference
Nissan SD22Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 100 mmReference
Power29.8 kWReference
Rated RPM2400Reference
Torque122.6 NmReference
Torque RPM1700Reference
Starter volts12Reference
Starter power2.0 kWReference
Oil capacity5.7 LReference
Coolant capacity7.9 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Oil capacity32.2 LReference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
Hydraulic system32.2 LReference
Capacity32.2 LReference
Pressure172.4 barReference
Total flow24.2 lpmReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel57.2 LReference
Dimensions
Weight3484 to 3903 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length297 cmReference
Width162 cmReference
Height (steering wheel)154 cmReference
Height (exhaust)221 cmReference
2WD Shipping weight1580 kgReference
4WD Shipping weight1770 kgReference
2WD Ground clearance39 cmReference
4WD Ground clearance38 cmReference
Front tread121 to 192 cmReference
Rear tread120 to 193 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 12.4/11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
