Tractor · 1977Unverified

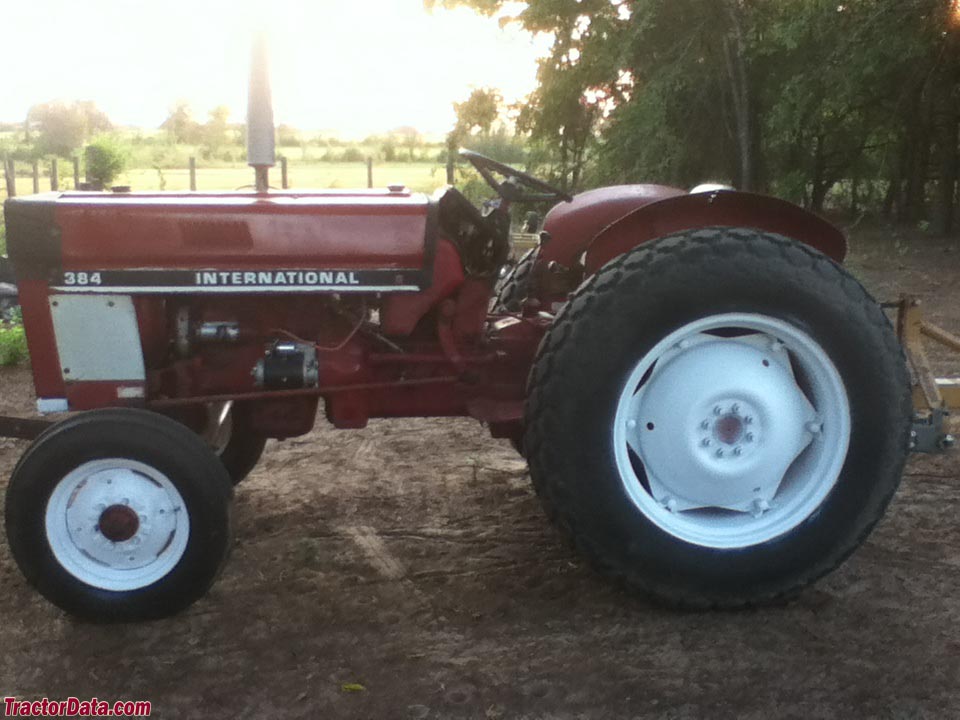

International Harvester 384
International Harvester 384 — 84 Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1921 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Bradford, EnglandReference
Original price was $9,500 in 1982Reference
Two-wheel driveReference
Open operator station.Reference
Engine
International Harvester 2.5L 4-cyl dieselReference
International Harvester BD-154Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Air cleanerdryReference
Rated RPM2100Reference
Idle RPM520-2325Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity10.2 LReference
Transmission
8-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Oil capacity35.3 LReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Hydraulic system35.2 LReference
Typeopen centerReference
Capacity35.2 LReference
Pump flow29.5 lpmReference
Rear TypeIReference
Rear lift1179 kgReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel45.4 LReference
Dimensions
Wheelbase194 cmReference
Weight1921 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length332 cmReference
Width169 cmReference
Height (steering wheel)149 cmReference
Shipping weight1921 kgReference
Ground clearance46 cmReference
384 Serial Number Location
Serial number plate on the left side of the clutch housing.Reference
384 Serial Numbers
1978501Reference
19791664Reference
19802508Reference
19813818Reference
19824530Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps28Reference
Battery CCA605Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
