Tractor · 1961Unverified

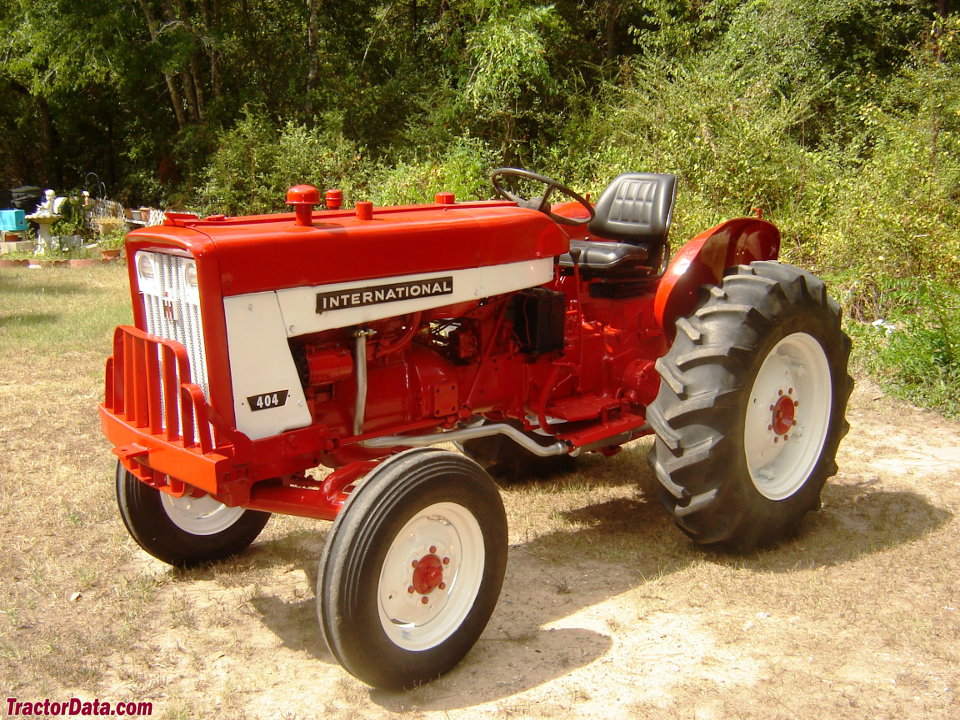

International Harvester 404
International Harvester 404 — Utility tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
1478 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Louisville, Kentucky, USAReference
Total built8256Reference
Original price was $3,300 in 1968Reference
Two-wheel driveReference
Steeringpower (optional)Reference
Differential mechanical disc brakesReference
Open operator station.Reference
Variants
Farmall 404row-crop chassisReference
IH 404utility chassisReference
2404industrialReference
Engine
International Harvester 2.2L 4-cyl gasolineReference
International Harvester 2.2L 4-cyl LP-gasReference
Drawbar (claimed)24.9 kWReference
Drawbar (claimed)21.6 kWReference
Plows2-3Reference
International Harvester C-135Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 103 mmReference
Air cleaneroil bathReference
Compression7.7:1Reference
Rated RPM2000Reference
Idle RPM900-2000Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity14.2 LReference
LP-gasReference
Compression8:1Reference
Transmission
4-speedReference
8-speedReference
4-speed manual shuttleReference
Gears4 forward and 1 reverseReference
Clutch9-inch dry discReference
TransmissionDual-RangeReference
Gears8 forward and 2 reverseReference
Add high range to basic four-speed transmission.Reference
Typemanual shuttleReference
Gears4 forward and reverseReference
PTO & Hydraulics
PTO (claimed)27.4 kWReference
PTO (claimed)24.6 kWReference
Hydraulic system18.9 LReference
TypeliveReference
Capacity18.9 LReference
Valves1 or 2Reference
Total flow17.0 lpmReference
Total flow35.2 lpmReference
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Capacities
Fuel61.3 LReference
Fuel71.9 LReference
Diameter27 cmReference
RPM948Reference
Speed832.10 meters/minReference
Dimensions
Wheelbase191 cmReference
Weight1478 kgReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length238 cmReference
Height (steering wheel)153 cmReference
Shipping weight1478 kgReference
Front tread132 to 193 cmReference
Rear tread121 to 193 cmReference
International Harvester 404 attachments
front-end loaderReference
404 Serial Numbers
1961501Reference
19621045Reference
19634205Reference
19646452Reference
19658292Reference
19669548Reference
196710534Reference
196811032Reference
FAQ: How to read a serial number table.Reference
Attachment overview
International Harvester 2001 loaderReference
Speeds
With 12.4-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
