Tractor · 1965Unverified

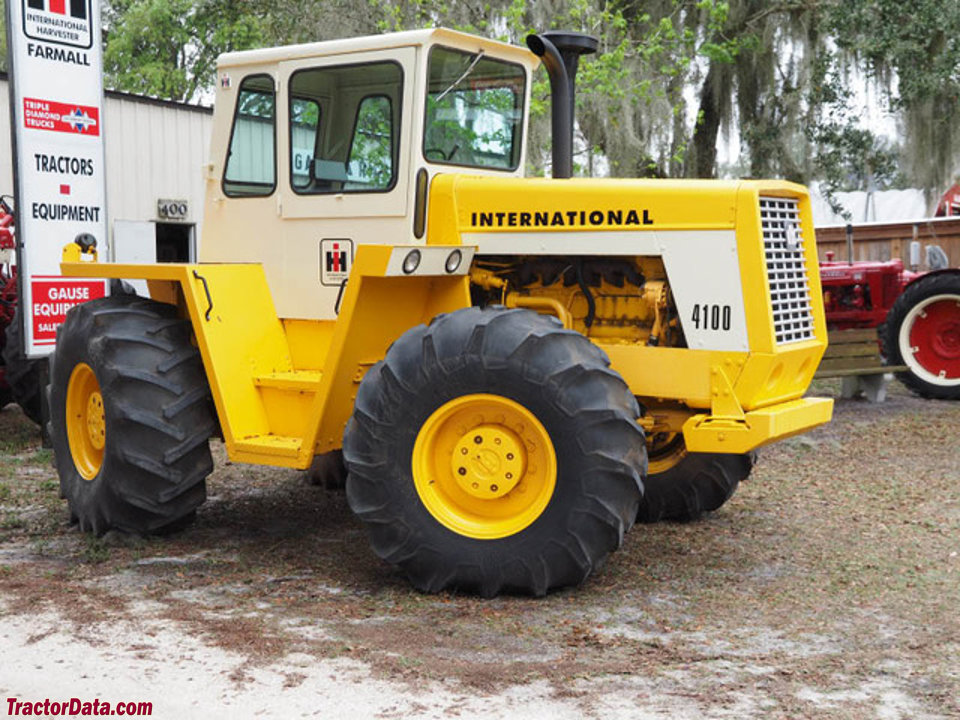

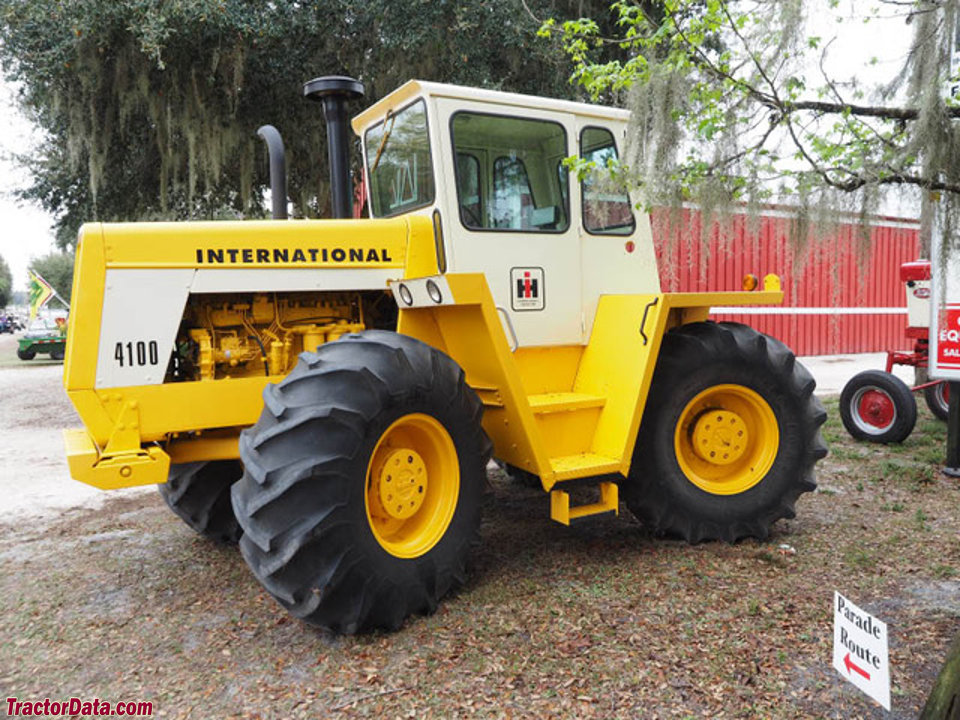

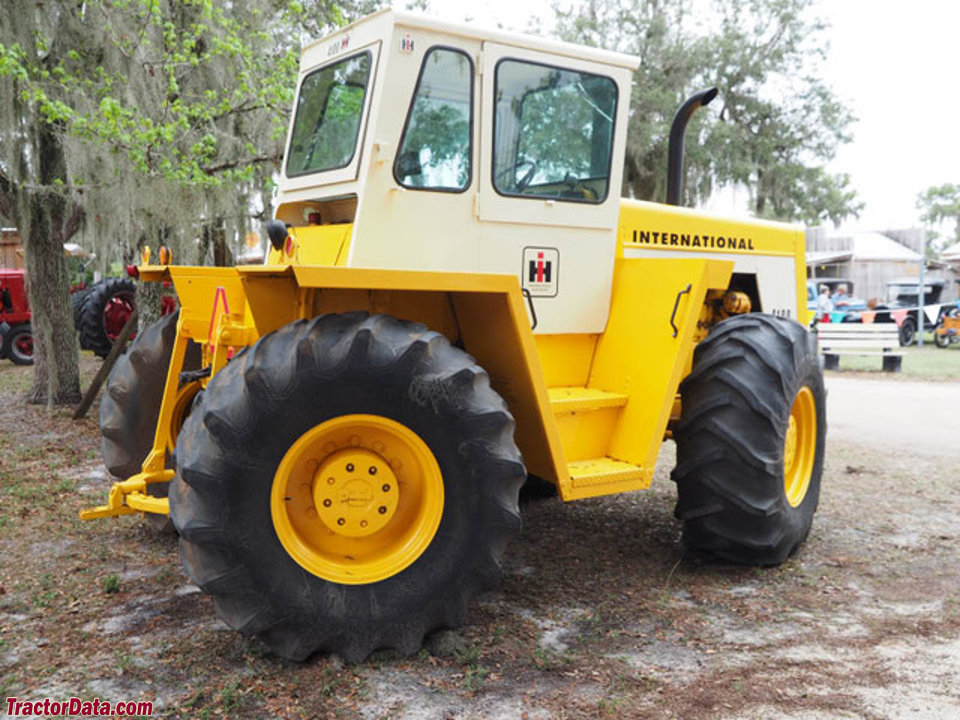

International Harvester 4100
International Harvester 4100 — Four-wheel Drive (4WD) tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
82.6 kW
Weight
6883 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Four-wheel Drive (4WD) tractorReference
Built in Rock Island, Illinois, USAReference
Total built1,217Reference
Original price$18,200 (1968)Reference
Drive4x4 4WDReference
Steeringhydraulic powerReference
Integral hydraulic expanding shoe brakesReference
Cab standardReference
Engine
International Harvester 7.0L 6-cyl dieselReference
Drawbar (claimed)86.6 kWReference
Drawbar (tested)82.6 kWReference
International HarvesterReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.0 LReference
Bore/Stroke114 x 114 mmReference
Air cleanerdual stage dryReference
Compression16:1Reference
Rated RPM2400Reference
Starter volts12Reference
Max power82.6 kWReference
Transmission
8-speedReference
Transmissionsliding gearReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
Pump flow62.5 lpmReference
Rear TypeIII (optional)Reference
Rear PTOoptional independentReference
Rear PTO Type1000 (1-3/8)Reference
Rear PTO Type1000 (1-3/4)Reference
Dimensions
Wheelbase254 cmReference
Weight6883 kgReference
Front tire18.4-30Reference
Rear tire18.4-30Reference
Ag front18.4-30Reference
Ag rear18.4-30Reference
Operating weight6883 kgReference
Ballasted weight8663 kgReference
4100 Serial Numbers
Location:Clutch housing, right sideReference
19668001Reference
19678723Reference
19688986Reference
Final9218Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel 8-speed 4WDNovember 19 - 24, 1965Link: Nebraska Tractor Test 931 fileReference
Drawbar performanceReference
Fuel use33.3 l/hourReference
Gear 4 used for power test.Reference
Max pull7423 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
