Tractor · 1969Unverified

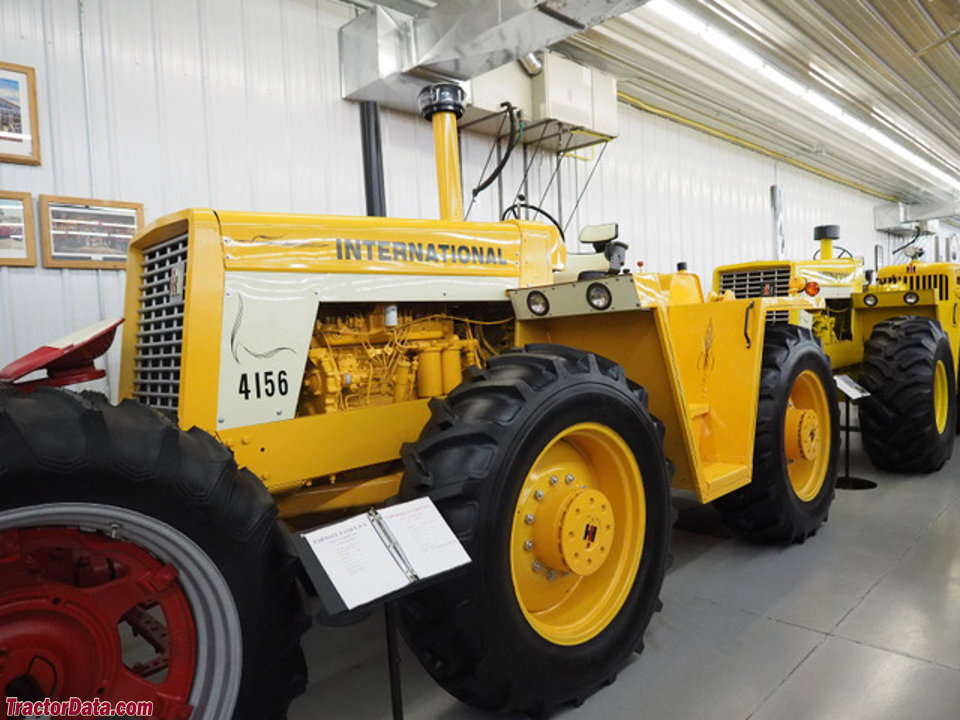

International Harvester 4156
International Harvester 4156 — Four-wheel Drive (4WD) tractor · 140 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Weight
6259 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Four-wheel Drive (4WD) tractorReference
Total built218Reference
Original price$21,500 (1970)Reference
Drive4x4 4WDReference
SteeringHydrostatic power, 2- or 4-wheelReference
Hydraulic drum brakesReference
Cab optional with heat and A/CReference
Engine
International Harvester 7.0L 6-cyl dieselReference
Fuel tank378.5 LReference
Drawbar (claimed)93.2 kWReference
International HarvesterReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.0 LReference
Bore/Stroke114 x 114 mmReference
Compression16:1Reference
Rated RPM2400Reference
Oil capacity19.9 LReference
Coolant capacity35.0 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Oil capacity47.3 LReference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
Valves0 to 3Reference
Pump flow66.2 lpmReference
Pump flow96.5 lpmReference
Total flow102.6 lpmReference
Steering flow36.3 lpmReference
Steering flow81.4 lpmReference
Steering flow111.7 lpmReference
Steering press.137.9 barReference
Rear Type2/3Reference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase259 cmReference
Weight6259 kgReference
Front tire23.1-26Reference
Rear tire23.1-26Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Ag front28.1-26Reference
Ag rear28.1-26Reference
Length492 cmReference
Width243 cmReference
Height (steering wheel)236 cmReference
Height (exhaust)355 cmReference
Shipping weight6259 kgReference
Ballasted weight9253 kgReference
Ground clearance43 cmReference
4156 Serial Numbers
19699219Reference
19709365Reference
Final9447Reference
FAQ: How to read a serial number table.Reference
Speeds
With 18.4-30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
