Tractor · 1961Unverified
International Harvester 4300
International Harvester 4300 — Four-wheel Drive (4WD) tractor · 300 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
300 hp
Max power
151.6 kW
Weight
13524 kg
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerHoughReference
Four-wheel Drive (4WD) tractorReference
Built in Libertyville, Illinois, USAReference
Total built44Reference
Original price was $12,000 in 1970Reference
The massive model 4300 tractor was International's entry into the large four-wheel drive market. The tractor was built by Hough (manufacturer of the Pay Loader) and the final design was influenced by a desire to be larger than the John Deere 8010. Unfortunately for International, the 4300 was "too big, too soon" and production was limited.Reference
Drive4x4 4WDReference
Steeringhydraulic powered two- or four-wheel steeringReference
Air brakes brakesReference

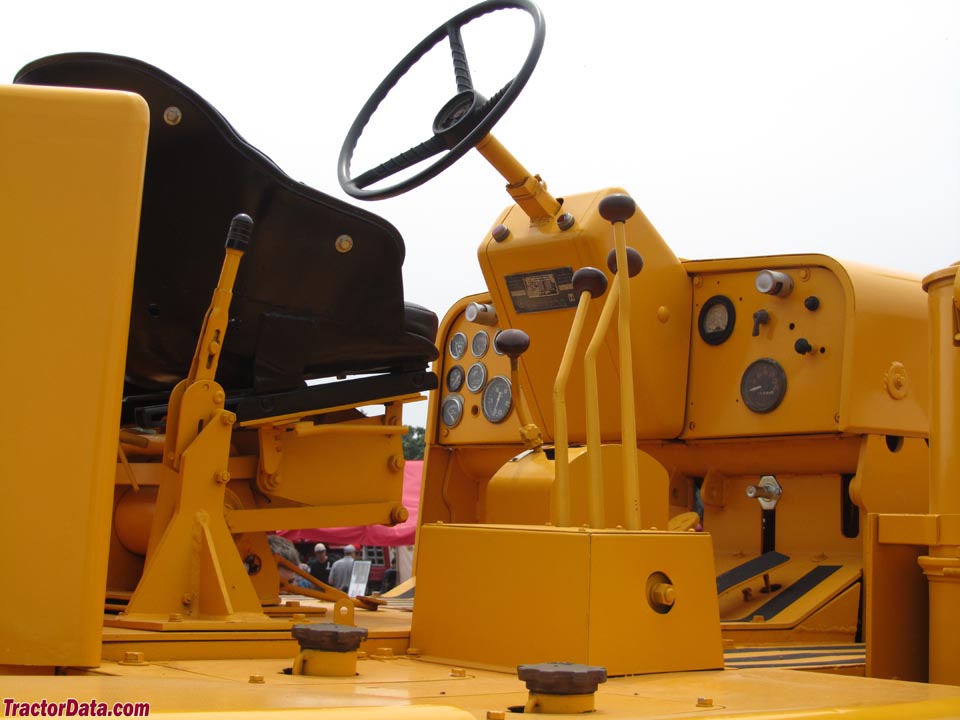

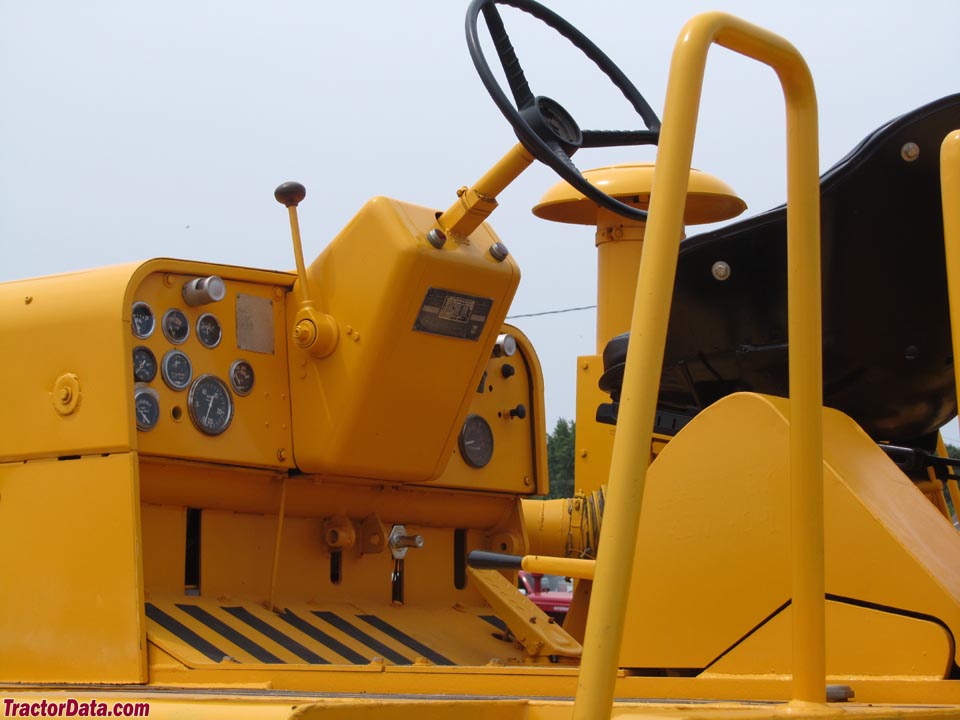

Open operator station. Cab optional with available air-conditioning.Reference
Engine
International Harvester 13.4L 6-cyl dieselReference
Engine223.7 kWReference
Drawbar (claimed)134.2 kWReference
Plows10Reference
Drawbar (tested)151.6 kWReference
International Harvester DT-817Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement13.4 LReference
Bore/Stroke137 x 152 mmReference
Power223.7 kWReference
Air cleanerdry with paper elementReference
Compression15.5:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity32.2 LReference
Coolant capacity65.3 LReference
Max power151.6 kWReference
Transmission
6-speedReference
8-speedReference
Gears6 forward and 1 reverseReference
Gears8 forward and 4 reverseReference
Capacities
Fuel635.9 LReference
Steering56.8 LReference
PTO & Hydraulics
Valves3Reference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Steering flow151.4 lpmReference
Steering cap.56.8 LReference
Dimensions
Wheelbase304 cmReference
Weight13524 kgReference
Front tire23.1-26Reference
Rear tire23.1-26Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Ag front23.5-25Reference
Ag rear23.5-25Reference
Length652 cmReference
Width283 cmReference
Operating weight13524 kgReference
Ground clearance48 cmReference
Steering wheel270 cmReference
4300 Serial Number Location
Serial number plate below steering columnReference
4300 Serial Numbers
196187AH1001Reference
Final87AH1045Reference
FAQ: How to read a serial number table.Reference
Links
Rare & Restored: Farm Collector article on a surviving 4300Reference
Electrical
Charging systemalternatorReference
Charging amps50Reference
Batteries4Reference
Battery volts6Reference
International Harvester 4300 Height
Cab327 cmReference
Exhaust361 cmReference
Test results
Diesel 8-speed 4WDApril 30 - May 14, 1962Link: Nebraska Tractor Test 815 fileReference
Drawbar performanceReference
Fuel use56.0 l/hourReference
Gear 4 used for power test.Reference
Max pull10341 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
