Tractor · 1975Unverified

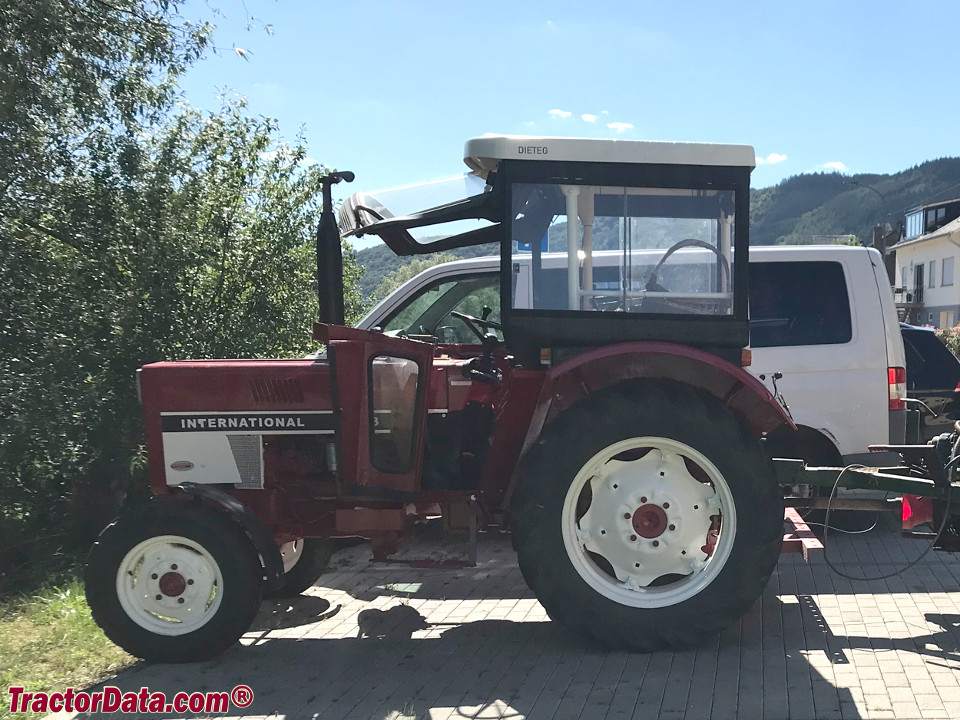

International Harvester 433
International Harvester 433 — 33 Series · 35 hp. Reference specifications; pending source verification.
The International Harvester 433 is a compact tractor with a rated output of 35 hp, produced from 1975 to 1980. Powered by a 3-cylinder diesel liquid-cooled engine, it is equipped with a two-wheel drive system and an 8-speed gearbox. The tractor has a listed weight of 2090 kg and is suited for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2090 kg
Catalogue coverage
Variants represented
2
Richest spec table
56 rows
Recorded power
35 hp
Recorded weight
2090 kg
Transmissions
8-speed
Production years
1975-1980
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Neuss, GermanyReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Disc brakesReference
Open operator station. Cab optional.Reference
Variants
433utilityReference
433VvineyardReference
Engine
International Harvester 2.5L 3-cyl dieselReference
Engine26.1 kWReference
International Harvester D-155Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke98 x 111 mmReference
Power26.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2050Reference
Starter volts12Reference
Oil capacity6.5 LReference
Coolant capacity13.6 LReference
Transmission
8-speedReference
16-speedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges, plus reverse range.Reference
TransmissionSynchronReference
Gears16 forward and 8 reverseReference
Capacities
Fuel60.0 LReference
PTO & Hydraulics
Hydraulic system12.1 LReference
Capacity12.1 LReference
Pump flow29.9 lpmReference
Rear TypeIIReference
Rear lift1800 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase207 cmReference
Weight2090 kgReference
Front tire6.00-16Reference
Rear tire12.4/11x28Reference
Standard tires (ag)Front: 6.00-16. Rear: 12.4/11x28Reference
Length339 cmReference
Width164 cmReference
Height (steering wheel)137 cmReference
Height (exhaust)207 cmReference
Shipping weight2090 kgReference
Front tread123 to 177 cmReference
Rear tread128 to 189 cmReference
Electrical
Charging systemalternatorReference
Charging amps28Reference
Charging volts14Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
