Tractor · 1973Unverified

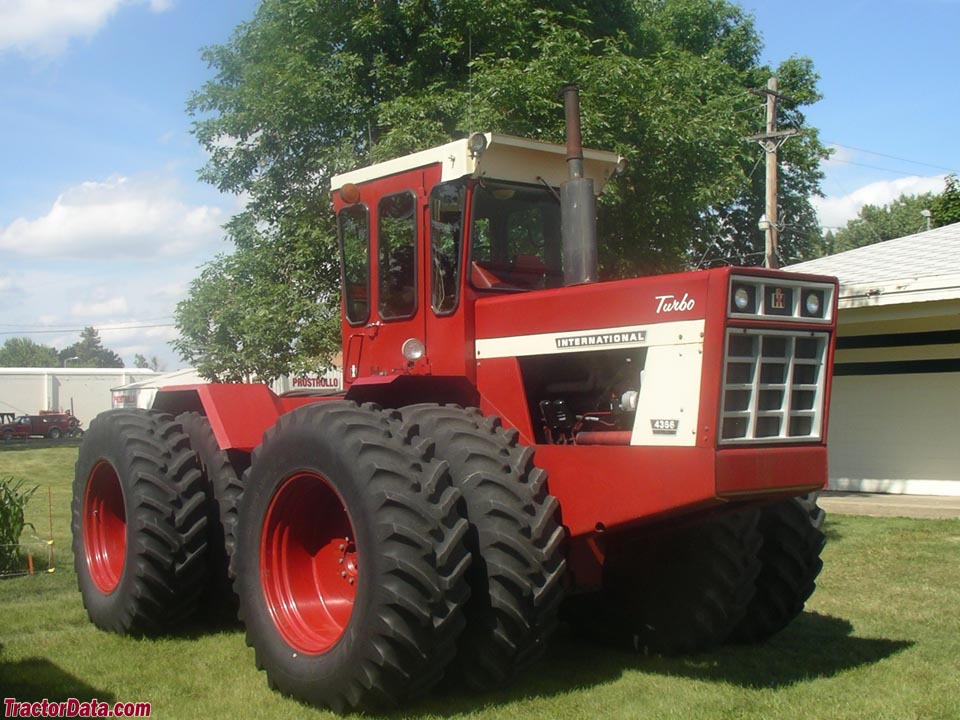

International Harvester 4366
International Harvester 4366 — 66 Series · 225 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
225 hp
Max power
121.7 kW
Weight
9838 kg
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $37,360 in 1976Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integral hydraulic caliper disc brakesReference
Cab standard with heater.Reference
Engine
International Harvester 7.6L 6-cyl dieselReference
Engine167.8 kWReference
Drawbar (claimed)123.0 kWReference
Drawbar (tested)121.7 kWReference
International Harvester DT-466Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Power167.8 kWReference
Compression15.1:1Reference
Rated RPM2600Reference
Idle RPM850-2600Reference
Starter volts12Reference
Oil capacity17.0 LReference
Coolant capacity34.1 LReference
Max power121.7 kWReference
Transmission
10-speedReference
TransmissionFuller syncromeshReference
Gears10 forward and 2 reverseReference
Five forward speeds, plus one reverse, with high and low ranges.Reference
Capacities
Fuel533.7 LReference
PTO & Hydraulics
Hydraulic system117.3 LReference
Typeopen centerReference
Capacity117.3 LReference
Rear valves2Reference
Pump flow83.3 lpmReference
Steering flow64.3 lpmReference
Dimensions
Wheelbase299 cmReference
Weight9838 kgReference
Front tire28.1-26Reference
Rear tire28.1-26Reference
Ag front28.1-26Reference
Ag rear28.1-26Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length612 cmReference
Width294 cmReference
Height (cab)325 cmReference
Operating weight9838 kgReference
Ballasted weight10432 kgReference
Clearance (drawbar)41 cmReference
Front axle82 mmReference
Bar rear axle82 mmReference
Test results
Diesel 10-speed 4WDNovember 8 - 29, 1973Link: Nebraska Tractor Test 1153 fileReference
Drawbar performanceReference
Fuel use49.2 l/hourReference
Gear 4L used for power test.Reference
Max pull10495 kgReference
Gear 1L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
