Tractor · 1976Unverified

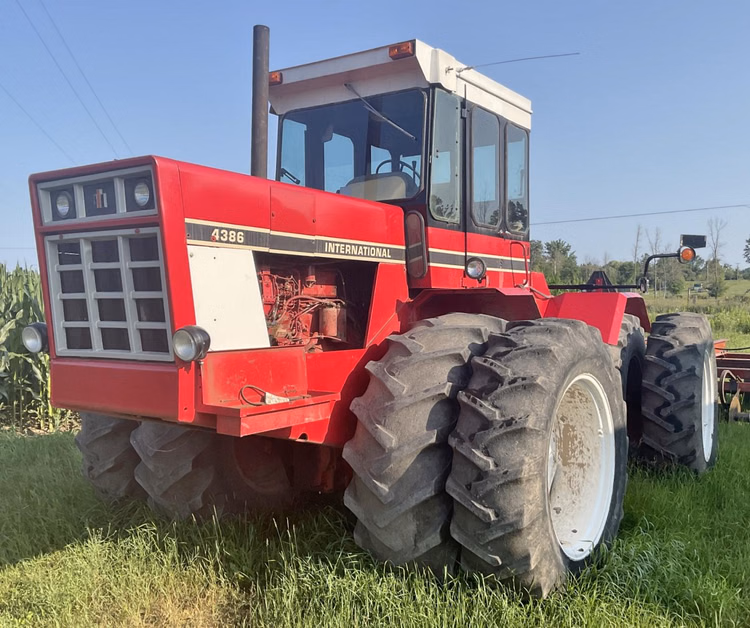

International Harvester 4386
International Harvester 4386 — Four-wheel Drive (4WD) tractor · 230 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
230 hp
Max power
126.3 kW
Weight
19875 to 24930 pounds
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $42,250 in 1981Reference
Four-wheel driveReference
Final drivesbull gearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning.Reference
Engine
International Harvester 7.6L 6-cyl dieselReference
Fuel tank643.5 LReference
Engine171.5 kWReference
Drawbar (claimed)131.2 kWReference
Drawbar (tested)126.3 kWReference
International Harvester DTI-466Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Power171.5 kWReference
Air cleanerdryReference
Compression15.1:1Reference
Rated RPM2600Reference
Idle RPM850-2600Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity43.5 LReference
Max power126.3 kWReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves3 or 4Reference
Pump flow60.6 lpmReference
Total flow140.0 lpmReference
Steering flow79.5 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase299 cmReference
Weight19875 to 24930 poundsReference
Front tire23.1-30Reference
Rear tire23.1-30Reference
Ag front23.1-30Reference
Ag rear23.1-30Reference
Length612 cmReference
Width294 cmReference
Shipping weight9015 kgReference
Operating weight11308 kgReference
Front axle82 mmReference
Bar rear axle82 mmReference
Front tread172 to 320 cmReference
Rear tread172 to 320 cmReference
4386 Serial Numbers
1976501Reference
1977815Reference
19781340Reference
19791945Reference
19802501Reference
19812853Reference
FAQ: How to read a serial number table.Reference
International Harvester 4386 Height
Hood236 cmReference
Cab337 cmReference
Exhaust365 cmReference
Test results
Diesel 10-speed 4WDSeptember 17 - 27, 1977Link: Nebraska Tractor Test 1256 fileReference
Drawbar performanceReference
Fuel use51.5 l/hourReference
Gear 5L used for power test.Reference
Max pull10578 kgReference
Gear 1L used for pull test.Reference
Speeds
With 23.1-30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
