Tractor · 1970Unverified

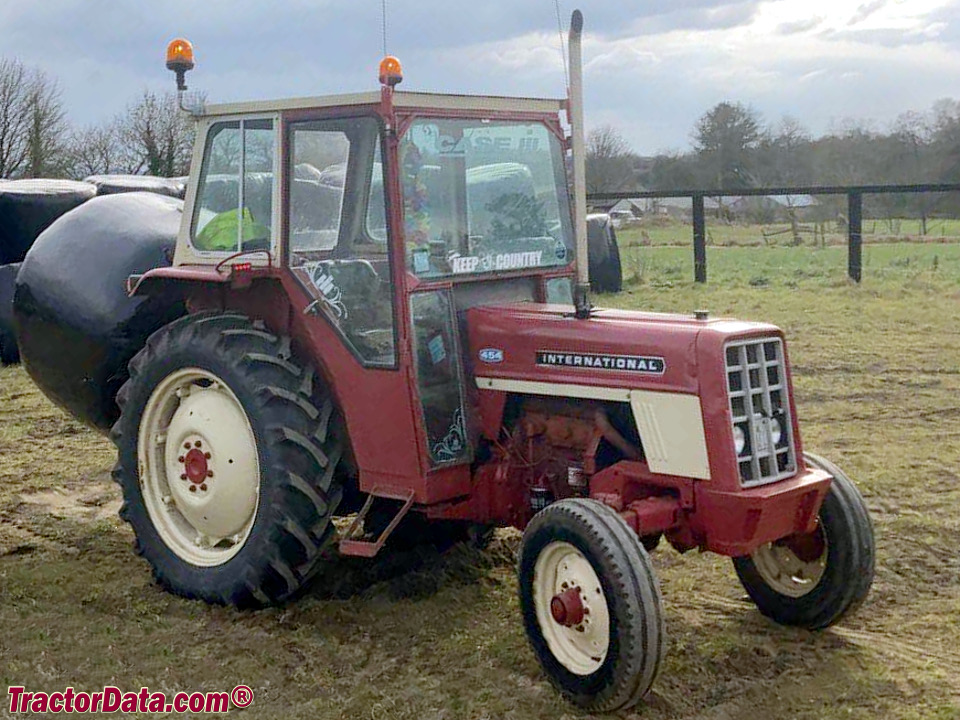

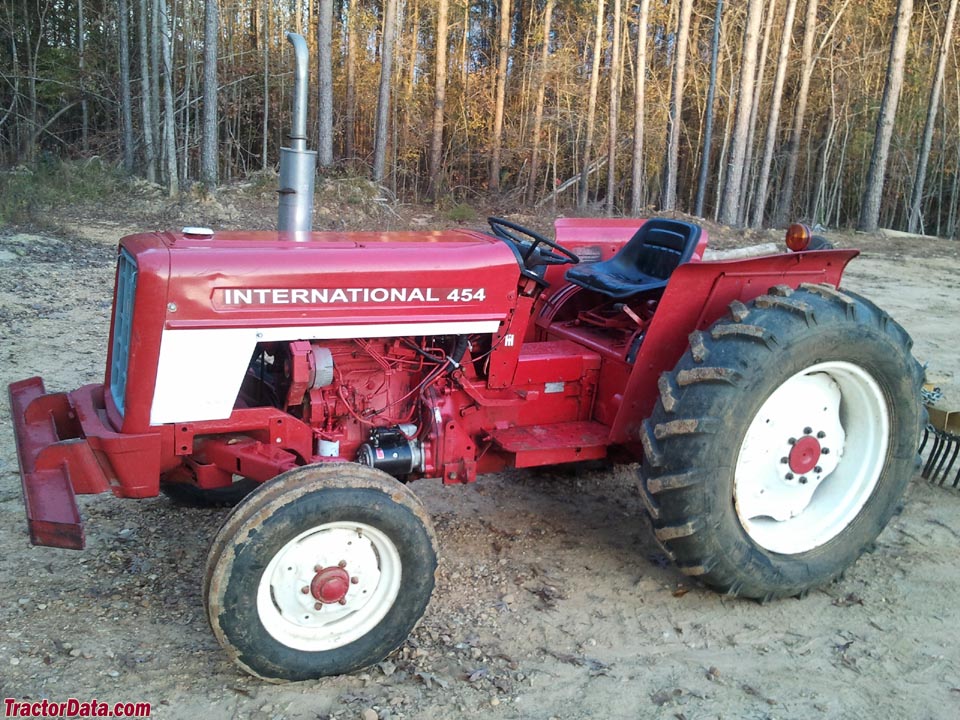

International Harvester 454
International Harvester 454 — Utility tractor · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Max power
25.0 kW
Weight
3780 to 4720 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $4,640 in 1973Reference
Two-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Open operator station.Reference
Engine
International Harvester 2.6L 4-cyl gasolineReference
International Harvester 2.9L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine37.3 kWReference
Drawbar (claimed)26.1 kWReference
Drawbar (tested)26.4 kWReference
International Harvester C-157Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke86 x 112 mmReference
Power37.3 kWReference
Air cleanerdryReference
Compression7.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.9 LReference
International Harvester D-179Reference
dieselReference
3-cylinderReference
Displacement2.9 LReference
Bore/Stroke98 x 129 mmReference
Oil capacity7.6 LReference
Coolant capacity11.8 LReference
Power at rated engine speed30.5 kWReference
Max power25.0 kWReference
Power at rated engine speed30.2 kWReference
Max power26.4 kWReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 4 reverseReference
Oil capacity34.1 LReference
Fours synchronized gears in each of high, low, and reverse ranges.Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)30.5 kWReference
Pump flow45.0 lpmReference
Rear TypeIReference
Rear lift1500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase190 cmReference
Weight3780 to 4720 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Ag front6.50-16Reference
Ag rear14.9-28Reference
Length335 cmReference
Length337 cmReference
Width167 cmReference
Height (steering wheel)139 cmReference
Ground clearance25 cmReference
Shipping1714 kgReference
Shipping1814 kgReference
Operating1995 kgReference
Operating2140 kgReference
Ballasted3388 kgReference
International Harvester 454 attachments
front-end loaderReference
454 Serial Numbers
Location:Clutch housing, left side of tractor.Reference
1970501Reference
1971508Reference
19724908Reference
19738064Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternator-generatorReference
Charging amps32Reference
Batteries1 (gas)Reference
Batteries2 (diesel)Reference
Battery volts12 (gas)Reference
Battery volts6 (diesel)Reference
Battery AH40 (gas)Reference
Battery AH135 (diesel)Reference
Attachment overview
International Harvester 1550 loaderReference
International Harvester 1850 loaderReference
International 2050 loaderReference
Test results
NTTL 1096: gasoline 8-speed 2WDReference
NTTL 1097: diesel 8-speed 2WDReference
Gasoline 8-speed 2WDApril 21 - May 11, 1972Link: Nebraska Tractor Test 1096 fileReference
PTO performanceReference
Fuel use14.0 l/hourReference
Drawbar performanceReference
Fuel use13.6 l/hourReference
Gear 3-Low used for power test.Reference
Max pull2417 kgReference
Gear 1-Low used for pull test.Reference
Diesel 8-speed 2WDApril 22 - May 12, 1972Link: Nebraska Tractor Test 1097 fileReference
Fuel use10.6 l/hourReference
Fuel use10.2 l/hourReference
Max pull2532 kgReference
Speeds
With 16.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
