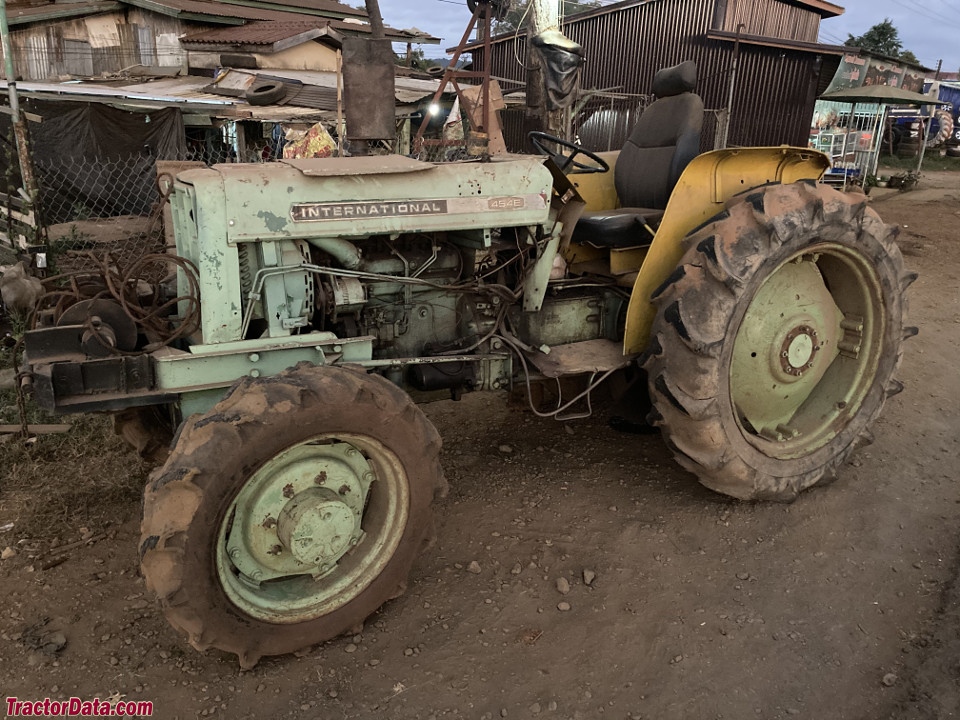

International Harvester 454E
International Harvester 454E — Utility tractorKomatsu built · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1979 kg
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerKomatsuReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
454E-CScreeper transmissionReference
454E-GSgolf specialReference
Engine
2.5L 4-cyl dieselReference
Engine35.8 kWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Power35.8 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
12-speed creeperReference
TypegearReference
Gears8 forward and 4 reverseReference
TypecreeperReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTO Type540/1000Reference
Dimensions
Weight1979 kgReference
Front tire5.50-16Reference
Rear tire12.4/11-28Reference
Ag front5.50-16Reference
Ag rear12.4/11-28Reference
Lawn/turf front6.00-16Reference
Lawn/turf rear11.2/10-24Reference
Length319 cmReference
Width165 cmReference
Height217 cmReference
Ground clearance37 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
