Tractor · 1972Unverified

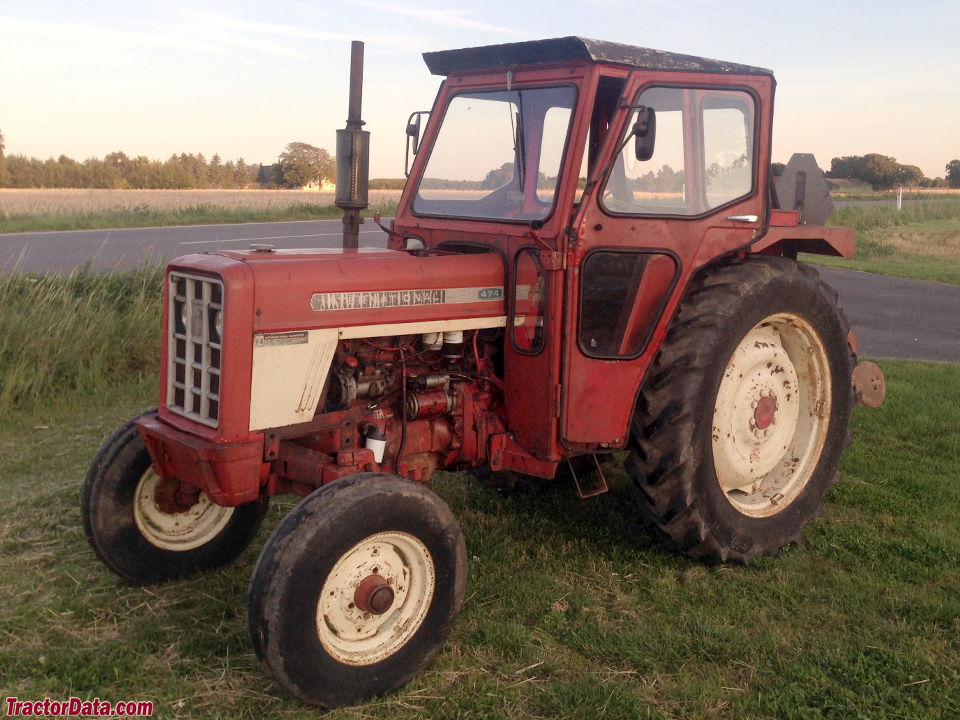

International Harvester 474
International Harvester 474 — Utility tractor · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
2655 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station. Cab available.Reference
Engine
International Harvester 3.4L 4-cyl dieselReference
Fuel tank76.8 LReference
Engine46.2 kWReference
International Harvester D-206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 129 mmReference
Power46.2 kWReference
Rated RPM2300 (gear)Reference
Rated RPM2400 (hydro)Reference
Starter typeelectricReference
Transmission
8-speed synchromeshReference
hydrostaticReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)36.5 kWReference
Pump flow45.0 lpmReference
Rear TypeII/IReference
Rear lift1800 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase214 cmReference
Weight2655 kgReference
Front tire7.50-16Reference
Rear tire13.6-36Reference
Ag front7.50-16Reference
Ag rear13.6-36Reference
Length342 cmReference
Height (hood)144 cmReference
Height (cab)231 cmReference
Front tread132 to 203 cmReference
Rear tread132 to 193 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
