Tractor · 1974Unverified

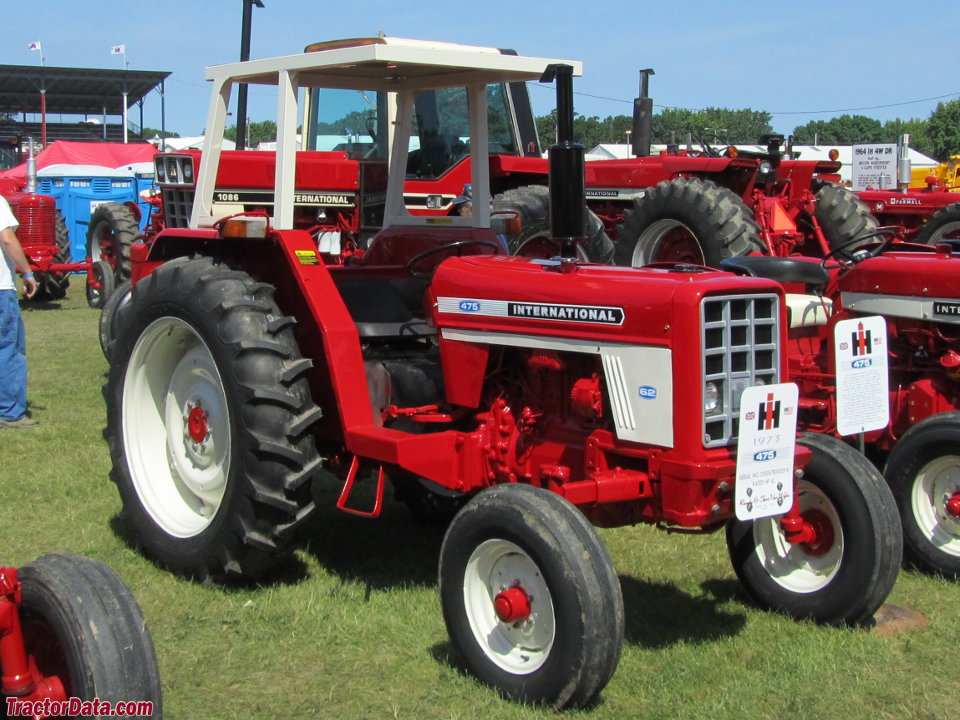

International Harvester 475
International Harvester 475 — Utility tractor · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
2600 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Open operator station. Four-post ROPS and cab available.Reference
Engine
Perkins 3.5L 4-cyl dieselReference
Fuel tank76.8 LReference
Engine44.7 kWReference
Perkins A4.212Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke98 x 114 mmReference
Power44.7 kWReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
16-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Four synchronized gears (1-4) in low, high, and reverse ranges.Reference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference

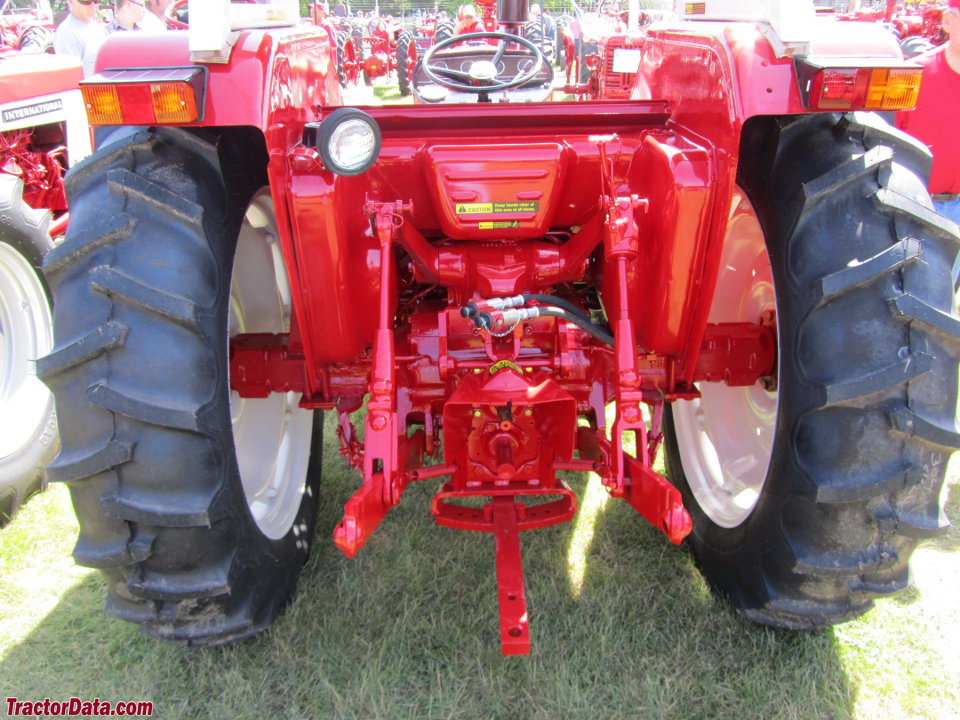

PTO & Hydraulics
PTO (claimed)36.5 kWReference
Pump flow45.0 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1800 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase214 cmReference
Weight2600 kgReference
Front tire6.00-16Reference
Rear tire12.4/11-36Reference
Ag front6.00-16Reference
Ag rear12.4/11-36Reference
Ag front7.50-16Reference
Ag rear14.9/13-28Reference
Ag rear14.9/13-30Reference
Ag rear16.9/14-30Reference
Ag rear12.4/11-32Reference
Ag rear13.6/12-36Reference
Length325 cmReference
Width162 cmReference
Height (steering wheel)151 cmReference
Height (cab)228 cmReference
Front tread132 to 203 cmReference
Rear tread132 to 193 cmReference
475 Serial Number Location
Front-right axle support.Reference
Electrical
Charging systemalternatorReference
Charging amps28Reference
Battery volts12Reference
Battery AH95Reference
Speeds
With 16.9x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
