Tractor · 1982Unverified

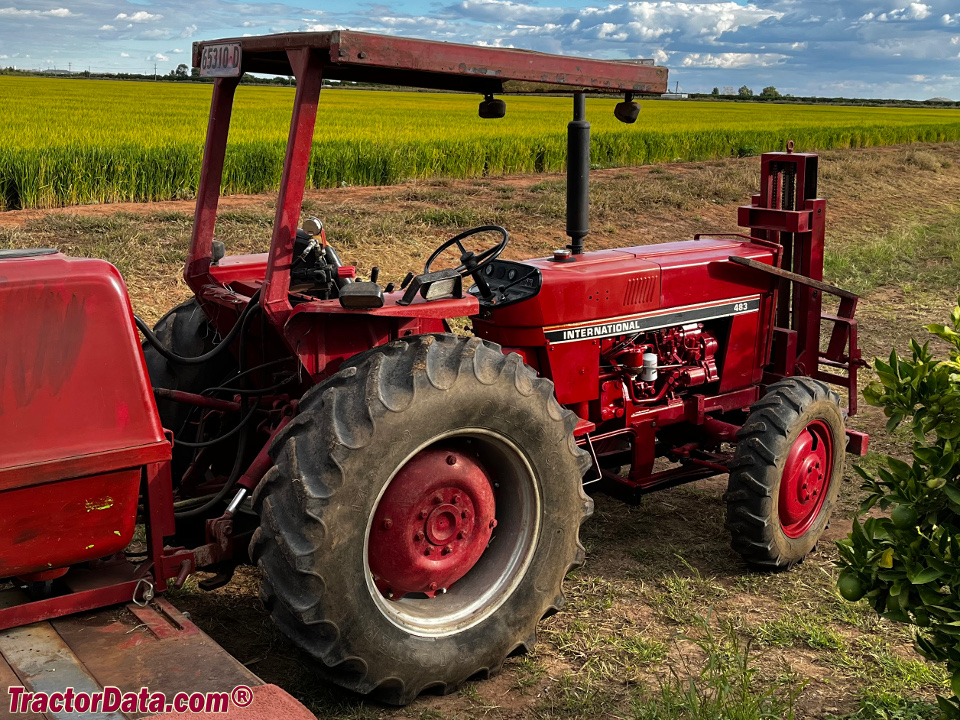

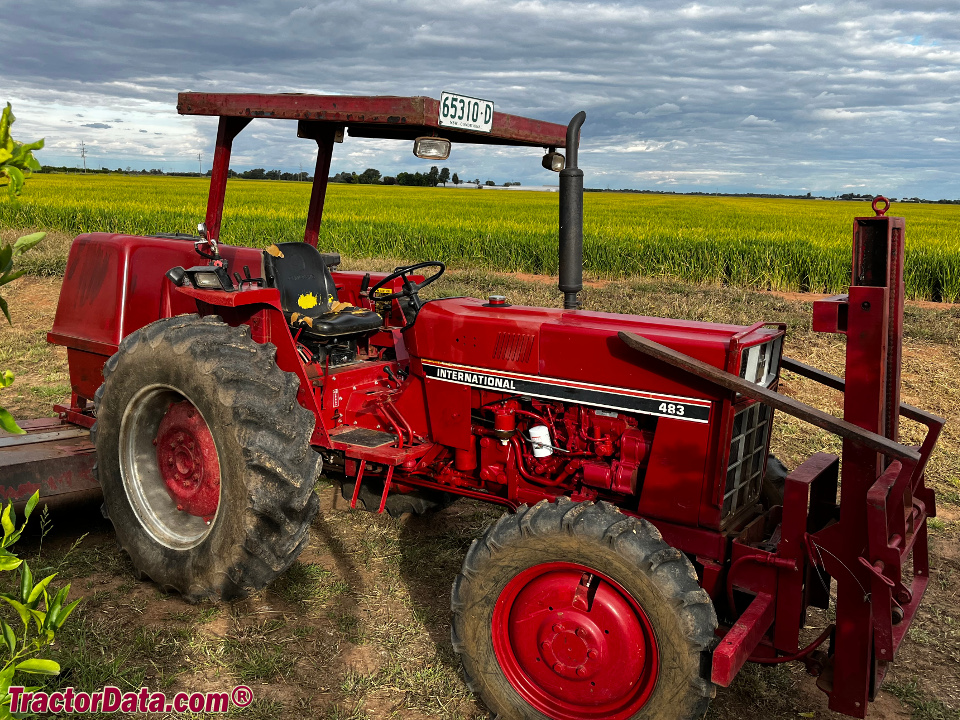

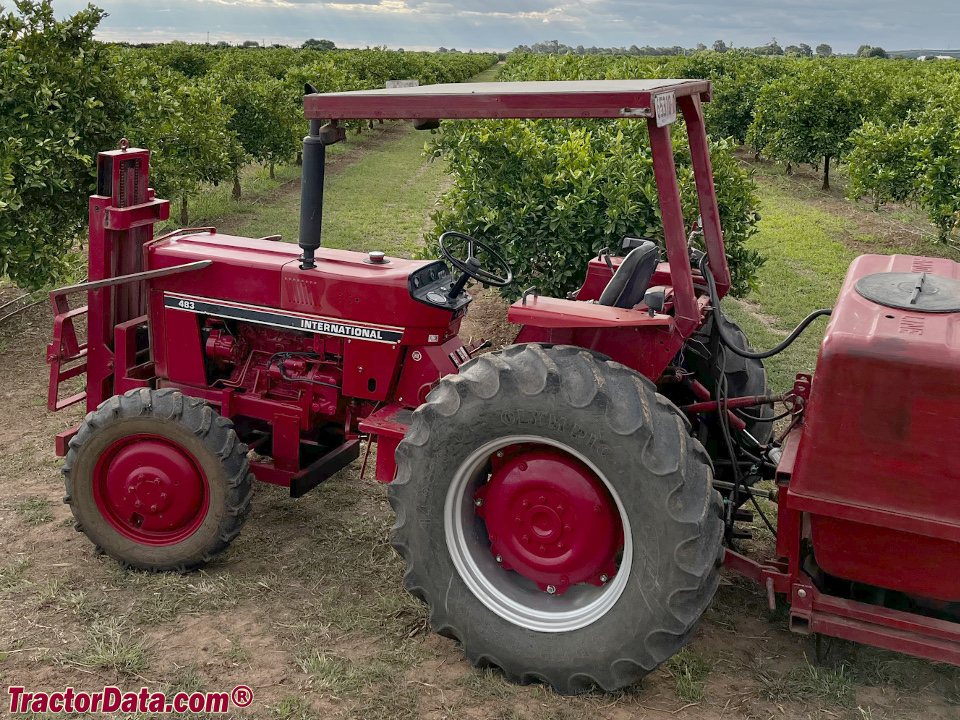

International Harvester 483
International Harvester 483 — Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
3550 to 3991 pounds
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerKomatsuReference
Utility tractorReference
Built in JapanReference
Original price was $13,900 in 1984Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
ROPS and canopy optionalReference
Engine
Nissan 2.5L 4-cyl dieselReference
Engine34.3 kWReference
Nissan SD25Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke89 x 100 mmReference
Power34.3 kWReference
Rated RPM2400Reference
Torque141.4 NmReference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity7.9 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity32.2 LReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Hydraulic system32.2 LReference
Capacity32.2 LReference
Pressure172.4 barReference
Total flow24.2 lpmReference
Rear TypeI/IIReference
Rear lift (at ends)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel57.2 LReference
Dimensions
Wheelbase195 cmReference
Weight3550 to 3991 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6/12-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6/12-28Reference
4WD Standard tires (ag)Front: 8.3-20. Rear: 13.6/12-28Reference
Length300 cmReference
Width165 cmReference
Height (steering wheel)155 cmReference
Height (exhaust)223 cmReference
2WD Shipping weight1610 kgReference
4WD Shipping weight1810 kgReference
2WD Ground clearance39 cmReference
4WD Ground clearance40 cmReference
Front tread121 to 192 cmReference
Rear tread120 to 193 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Speeds
With 12.4/11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
