Tractor · 1969Unverified

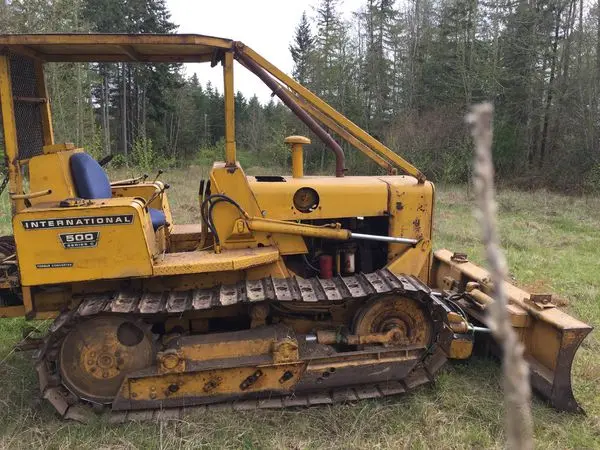

International Harvester 500C
International Harvester 500C — Agricultural Crawler tractor · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Agricultural Crawler tractorReference
Built in Hamilton, Ontario, CanadaReference
DrivecrawlerReference
Open operator station.Reference
Variants
500Cag crawlerReference
500Cindustrial crawlerReference
500C Loaderloader-crawlerReference
Engine
International Harvester 2.5L 3-cyl dieselReference
International Harvester 2.4L 4-cyl gasolineReference
Engine32.8 kWReference
International Harvester D-155Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke98 x 111 mmReference
Power32.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
International Harvester C-146Reference
gasolineReference
4-cylinderReference
Displacement2.4 LReference
Bore/Stroke86 x 103 mmReference
Transmission
4-speedReference
Gears4 forward and 1 reverseReference
Gears4 forward and reverseReference
Dimensions
TracksReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
