Tractor · 1961Unverified

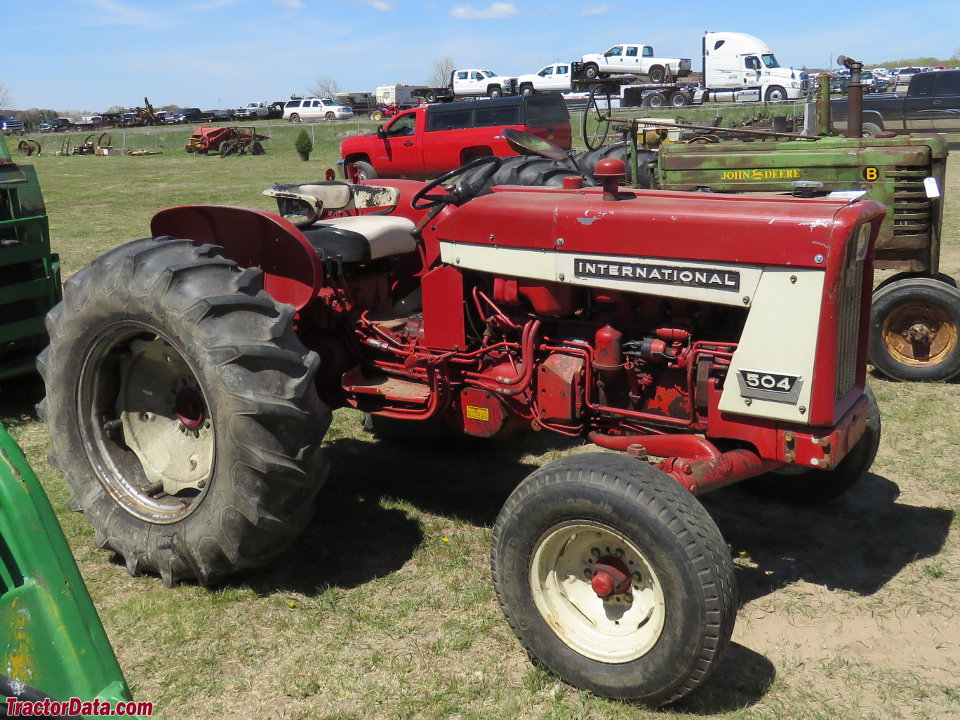

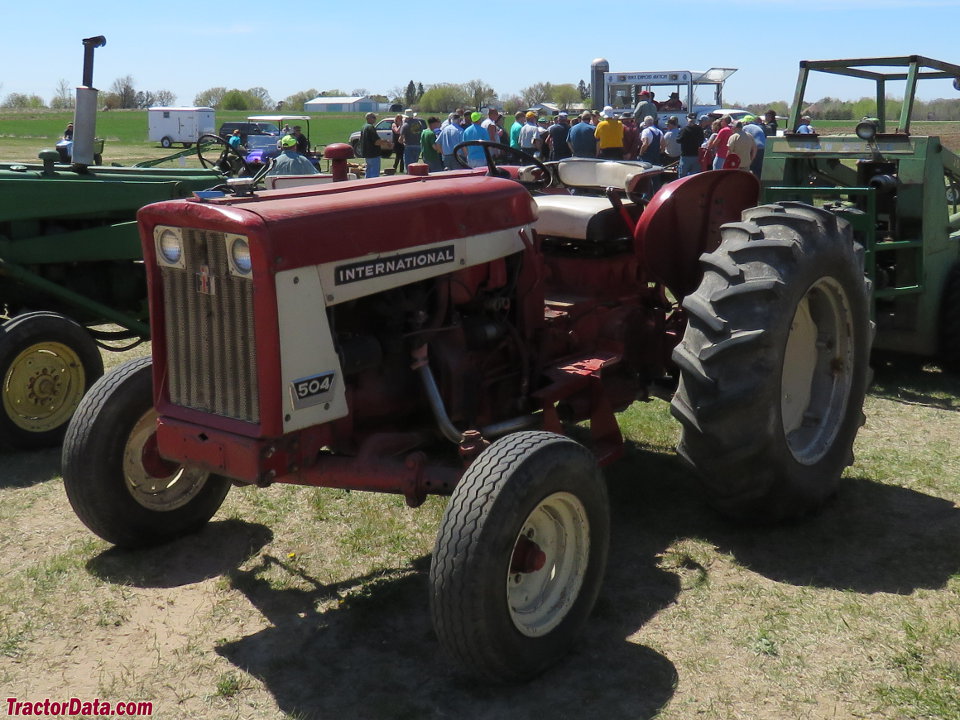

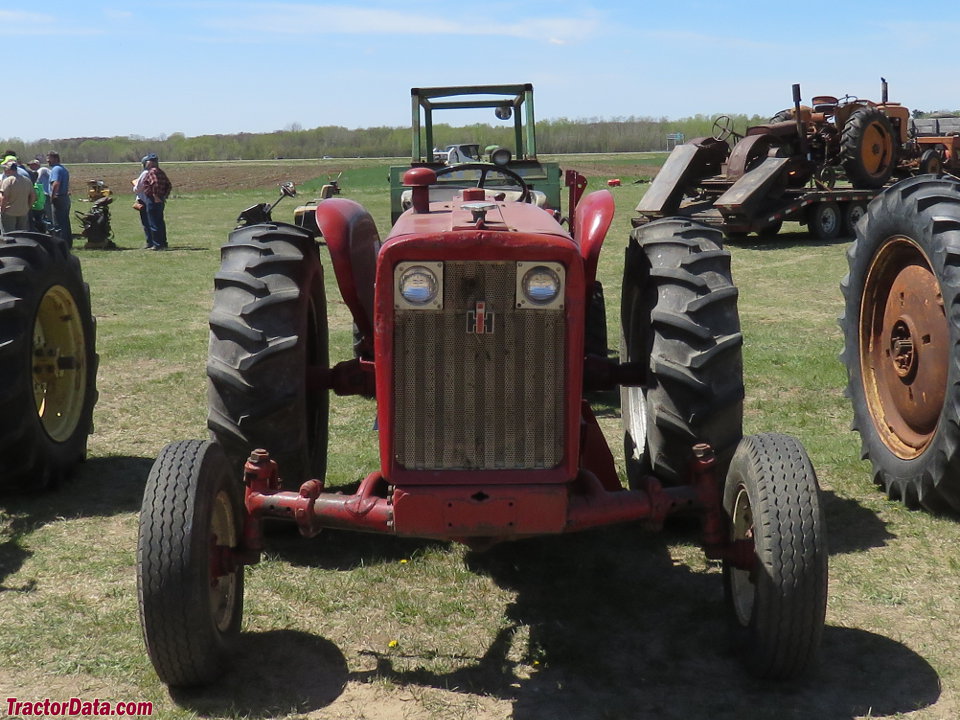

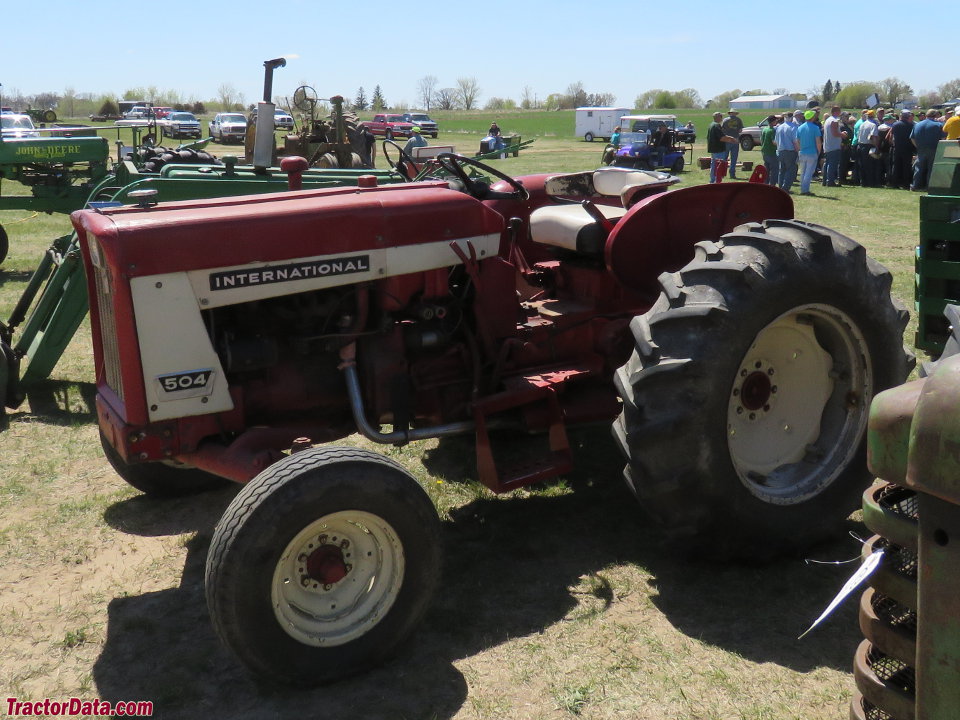

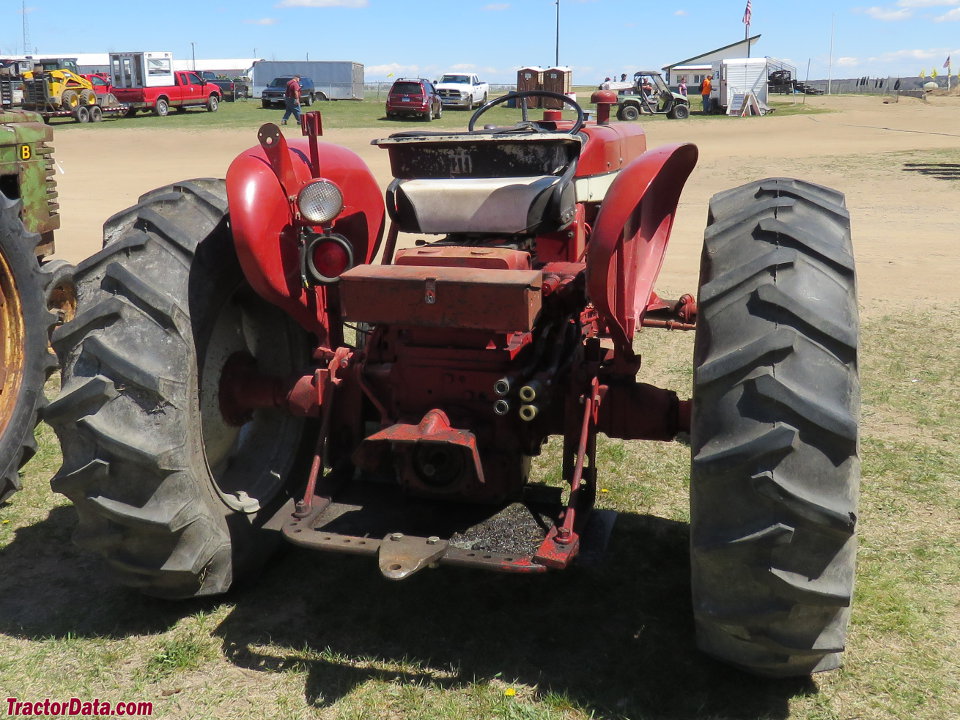

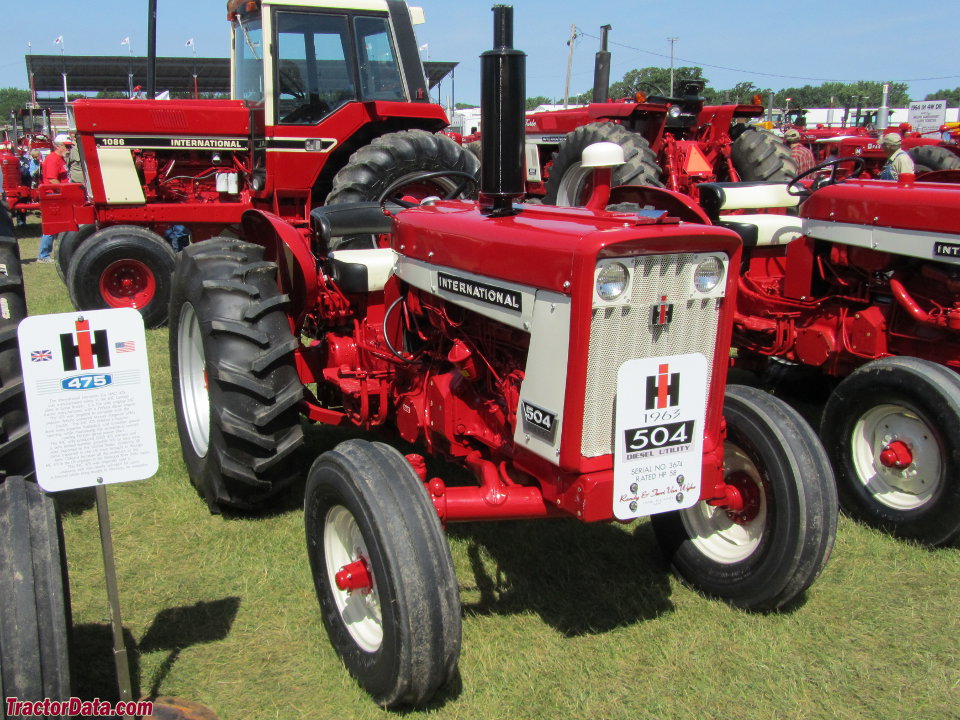

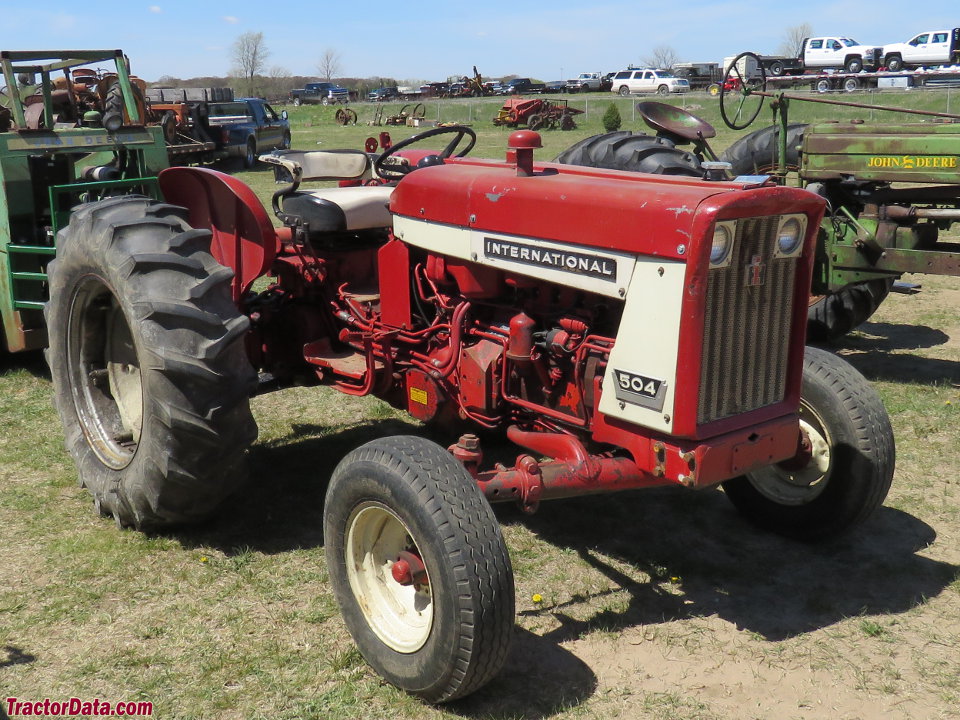

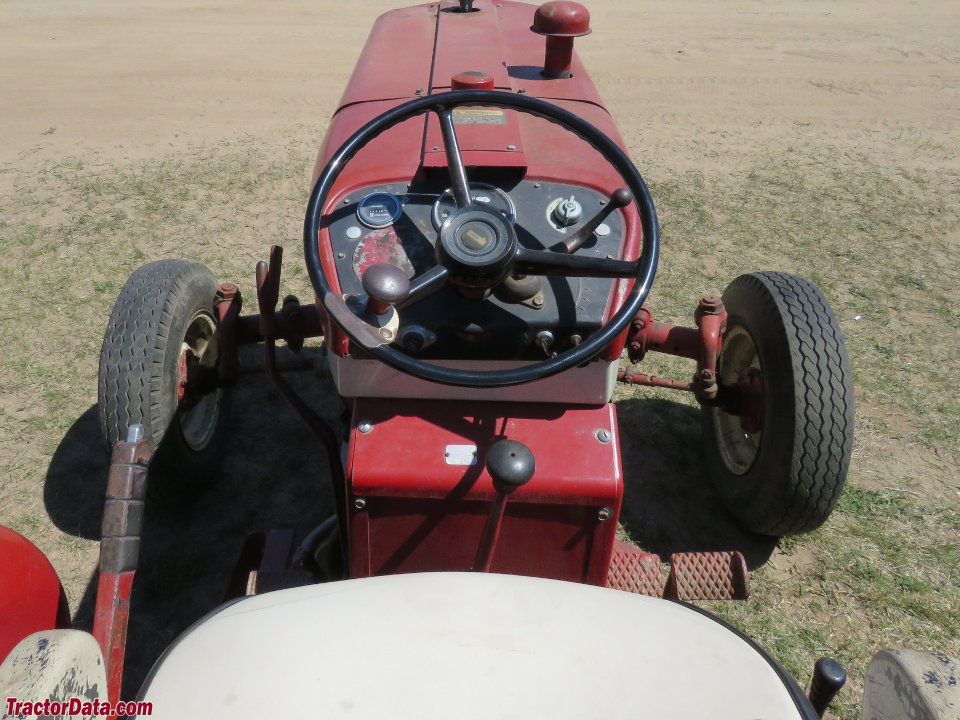

International Harvester 504
International Harvester 504 — Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
2022 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Original price was $4,200 in 1968Reference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Variants
Farmall 504row-cropReference
IH 504utilityReference
504HChigh-clearanceReference
IH 2504industrialReference
Engine
International Harvester 3.1L 4-cyl dieselReference
International Harvester 2.5L 4-cyl gasolineReference
Drawbar (claimed)30.6 kWReference
Plows3-4Reference
International Harvester D-188Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke94 x 112 mmReference
Air cleaneroil bathReference
Compression18.7:1Reference
Rated RPM2200Reference
Idle RPM900-2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity17.6 LReference
International Harvester C153Reference
gasolineReference
Displacement2.5 LReference
Bore/Stroke86 x 108 mmReference
Firing order1-3-4-2Reference
Coolant capacity14.2 LReference
Transmission
5-speed unsynchronized gearReference
10-speed two-speed power shiftReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutch267mm dry discReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)34.3 kWReference
Hydraulic system49.2 LReference
Capacity49.2 LReference
Pump flow26.5 lpmReference
Pump flow45.4 lpmReference
Pump flow64.3 lpmReference
Rear TypeIReference
Rear TypeIIReference
Controlposition and draft controlReference
TypeIH Fast HitchReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel56.8 LReference
Diameter27 cmReference
RPM1158Reference
Speed1016.20 meters/minReference
Dimensions
Wheelbase185 cmReference
Weight2022 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length325 cmReference
Height (steering wheel)154 cmReference
Front tread132 to 193 cmReference
Rear tread132 to 193 cmReference
International Harvester 504 attachments
front-end loaderReference
504 Serial Number Location
Left or right side of clutch housingReference
504 Serial Numbers
1962501Reference
19633376Reference
19646797Reference
196510996Reference
196614695Reference
196717992Reference
196820392Reference
FAQ: How to read a serial number table.Reference
Attachment overview
International Harvester 1701 loaderReference
International Harvester 2001 loaderReference
International Harvester 2000 loaderReference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
