Tractor · 1961Unverified

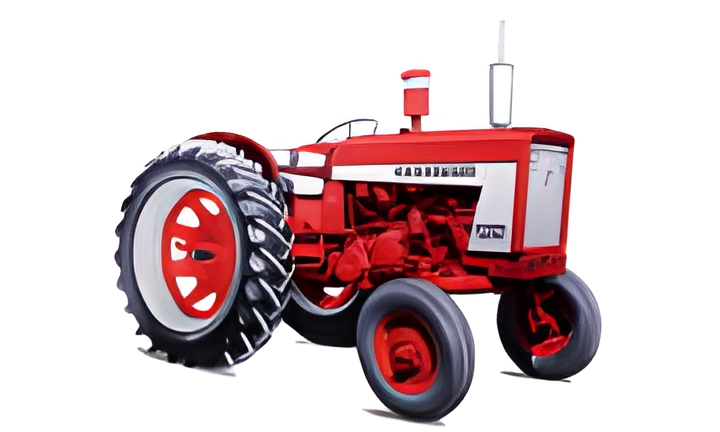

International Harvester 504 Hi-Clear
International Harvester 504 Hi-Clear — High-Clearance tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
2063 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
High-Clearance tractorReference
Built in Rock Island, Illinois, USAReference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Variants
Farmall 504row-cropReference
IH 504utilityReference
504HChigh-clearanceReference
IH 2504industrialReference
Engine
International Harvester 3.1L 4-cyl dieselReference
International Harvester 2.5L 4-cyl gasolineReference
Fuel tank57.9 LReference
Drawbar (claimed)30.6 kWReference
International Harvester D-188Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke94 x 112 mmReference
Rated RPM2200Reference
Idle RPM900-2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity17.3 LReference
International Harvester C-153Reference
gasolineReference
Displacement2.5 LReference
Bore/Stroke86 x 108 mmReference
Coolant capacity14.2 LReference
Transmission
5-speed unsynchronized gearReference
10-speed two-speed power shiftReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutch267mm dry discReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Clutch266.7mm dry discReference
PTO & Hydraulics
PTO (claimed)34.3 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow45.4 lpmReference
Steering flow17.0 lpmReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2000Reference
Dimensions
Wheelbase185 cmReference
Weight2063 kgReference
Front tire6.00-16Reference
Rear tire12.4-38Reference
Ag front6.00-16Reference
Ag rear12.4-38Reference
Ag rear13.6-28Reference
Ag rear13.6-38Reference
Height (steering wheel)154 cmReference
Shipping weight2063 kgReference
Front tread137 to 223 cmReference
Rear tread132 to 233 cmReference
Speeds
With 12.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
